BLD-SC.SEAXSQU.R.CSR.112.6L.DS.CKY.KD

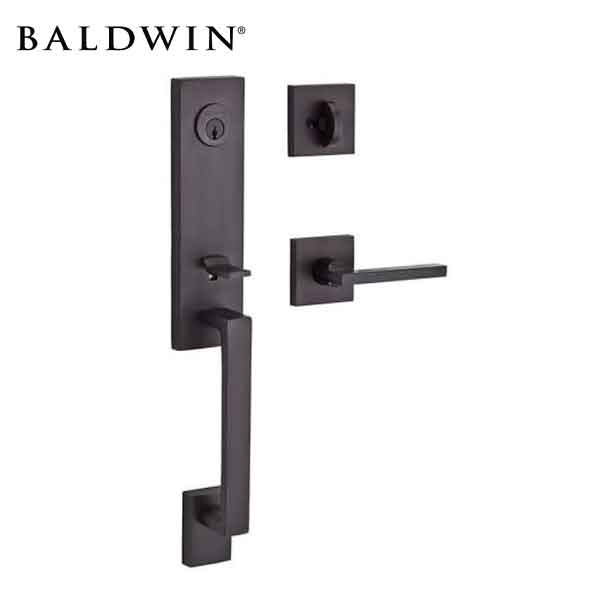

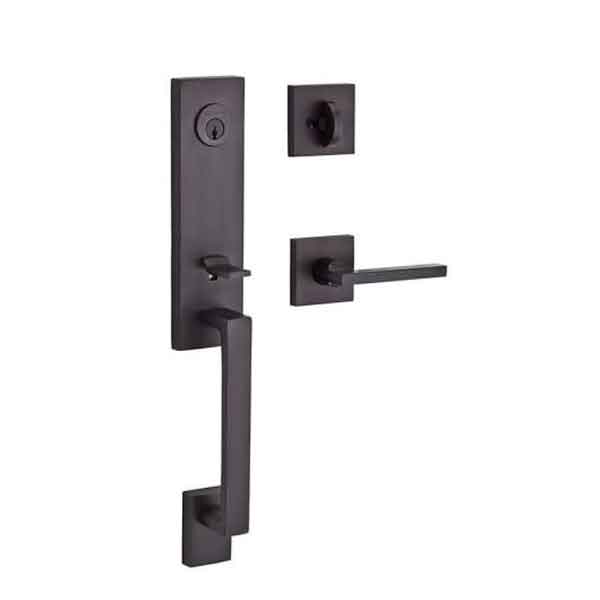

Seattle Contemporary - Single Cylinder Handleset with Contemporary Square Rose and Square Lever on Interior
Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
Specifications
Configuration |
Handleset |
Keying | Keyed different |
Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
Handing | Right |
Finish | 112 - Venetian Bronze |
Latch Faceplate | Drive-In, Round Corner, Square Corner |
Backset | Adjustable 2-3/8" or 2-3/4" |
Center to Center |
5.5 in. |
Cross Bore |
2-1/8" |
Door Thickness |
1-3/4", 1-7/8", 2" |
Latch | 6 Way Latch |
Strike | Dual Strike Kit |
Grip Center to Center |
8.40625 in. |
Handle Projection |
2.4375 in. |
Interior Handle Length |
4.25 in. |
Interior Trim Height |
2.5625 in. |
Interior Trim Width |
2.5625 in. |
Overall Height |
17.5 in. |
BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
