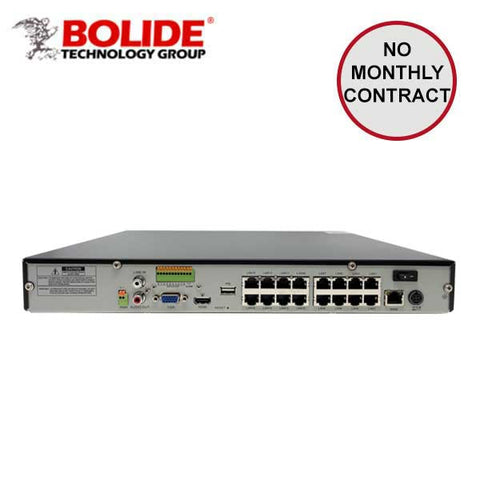

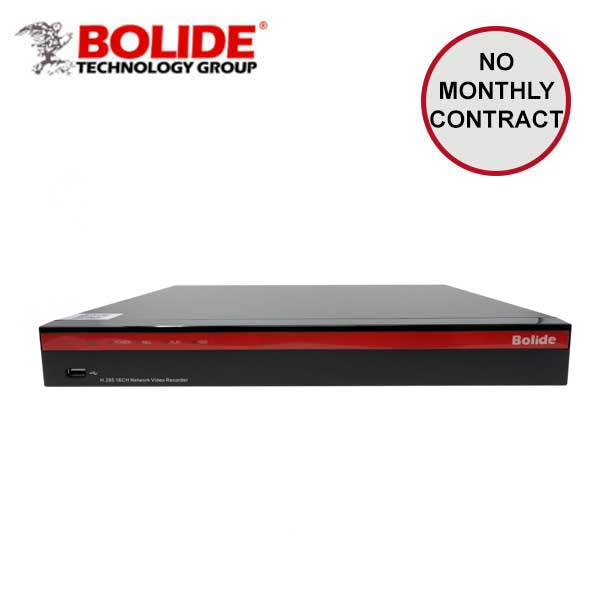

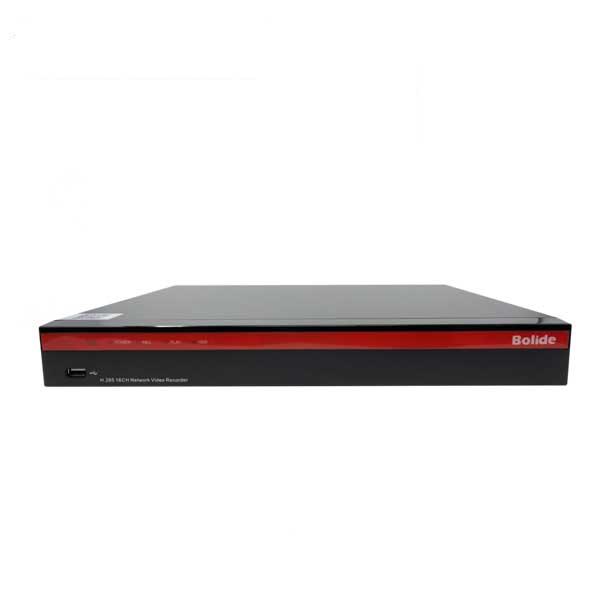

Bolide / 16 Channel / 8MP / 4K / NVR / 2 SATA / 16TB HDD / 16 Port POE / BN-NVR-16NX-S-NDAA

Available to Order
SKU: BOL-BN-NVR-16NX-S-NDAA
NSID: 23449

Please Note: This product has a lead time

$948.48
$1,198.08
$948.48

  • 16-Channel Inputs
  • H.265 Video Compression
  • 16-Port Built-in POE
  • Supports Up to 4K Cameras
  • 112Mbps Throughput 4K Output; HDMI, VGA
  • 1-Channel Audio In/ 1-Channel Audio Out
  • 2 Hard Drive Bays Up to 8TB each bay, 16TB max
  • Hard Drive Not Included ... sold seperately HERE
  • iPac AI Enabled
  • Quick Connect


Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications:

    Record Bandwidth: Max 112Mbps Throughout
    Record Resolution: 8MP(4K), 5MP, 3MP, 2MP(1080P),1.3MP(960P),1.0MP(720P)
    Live/Playback Performance: 8MP (4K): 45FPS; 4MP: 90FPS; 2MP: 180FPS
    Video Analytics: Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest.
    DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection
    Display Resolution: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 1680x1050, 1600x1200, 1900x1200, 2560x1440, 3840x2160
    Display Split: 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16
    Video Compression: H.265
    RS 485, E-SATA, Line in:
    yes
    Output Interface: 1 HDMI (up to 4K) , 1 VGA
    Alarm Input/Output: 8CH Input / 1CH Output
    Audio: 1-Channel Audio In / 1-Channel Audio Out
    Ethernet: RJ-45 port (1000M)
    Mobile Connect:
    Quick Connect allows mobile connection
    Internal HDD:

    2 SATA HDDs, each HDD up to 8TB

    Hard Drive Not Included ... sold seperately HERE

    USB: 2x 2.0 USB for mouse
    ONVIF: ONVIF Profile S Version 2.6
    POE: 16 PoE ports, single port up to 802.3at(30w)
    Voltage: 2x AC 100~240V, PoE Switch: 48V
    Dimensions W x D x H: 17.5” x 17” x 3.5” ( Rackmount Ears Included )
