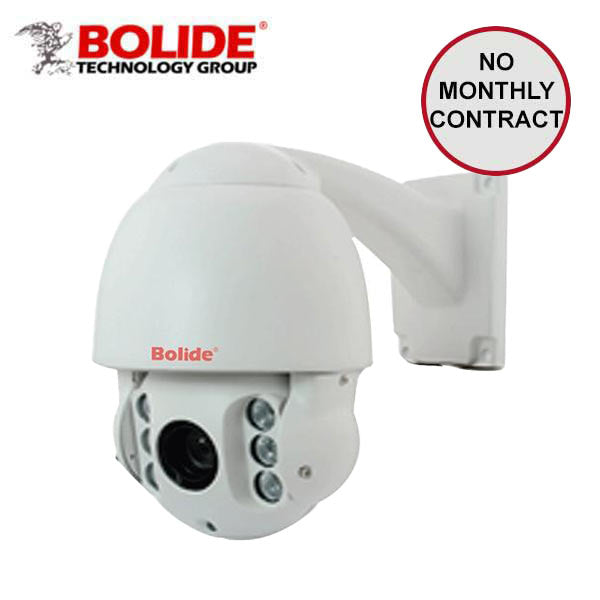

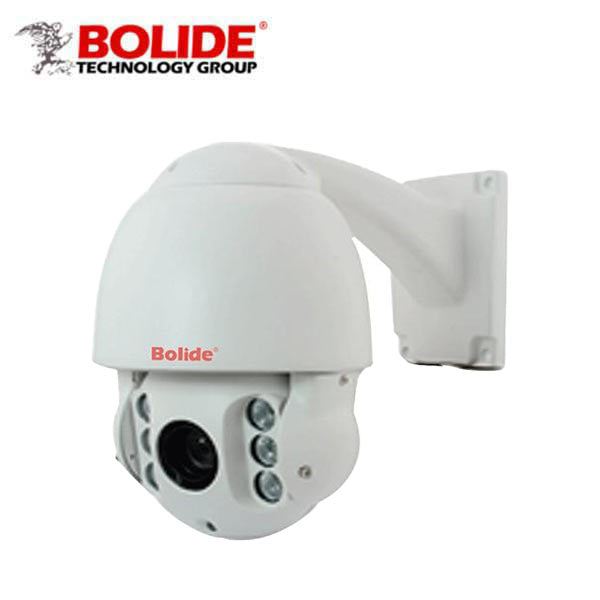

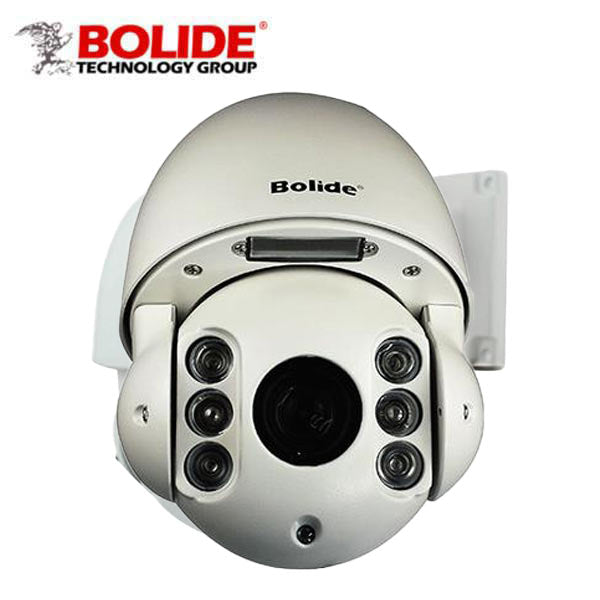

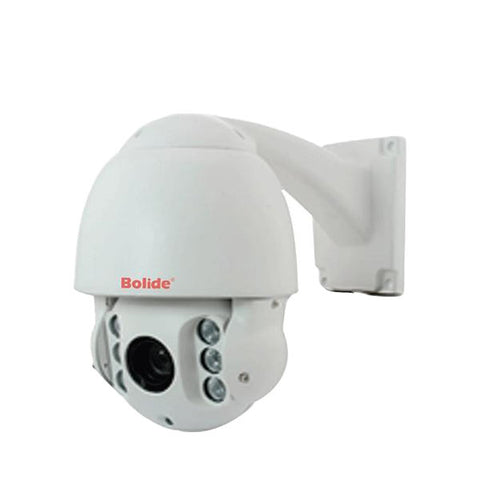

Bolide - BC1209-PTZMINI-AH - HDCVI / 2MP / PTZ Camera / Optical Zoom / 10x Zoom / Outdoor / IP66 / 61m IR / 12VDC / White
Available to Order
SKU:
BOL-BC1209-PTZMINI-AH
NSID:
23409
- $854.40
-
$1,025.28 - $854.40
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
BOL-BC1509AVAIR-AHN
The new BC1509AVAIR/AHN 1080p/720p Mini PTZ (Pan Tilt Zoom) has an IR range up to 196 ft (61m) with constant current control and synchronous switch. It is equipped with 128 presets where titles can also be set. Support Scanning is available between left limit and right limit at a predetermined speed. The built-in OSD Menu allows a variety of options and settings. This camera is weather-proof rated IP66 for outdoor use.
Features:
- 1/2.7" CMOS
- 10x Optical Zoom Lens
- 2MP
- AHD
- IR Distance up to 61m
Specifications:
| Image Sensor | 1 / 2.7” CMOS |
| Resolution |
1920 (H) x 1080 (V) |
| Effective Pixels | 2MP |
| Focal Length | 10x Optical Zoom Lens |
| IR Distance | 196 ft (61m) |
| Output Mode | AHD |
| Min. Illumination | Color: 0.5 lux, BW: 0.1lux |
| WB | Auto |
| Manual speed | Pan (0.1°~200°/S) Tilt (0.1°~180°/S) |
| ICR | Manual/Auto |
| DNR | Auto /Off / Low / Middle / High |
| HLC | Off /On |
| Max Gain | Auto |
| Iris | Auto |
| Flip | Vertical, Horizontal, Vertical-Horizontal, OFF Selectable |
| Rotation | Pan continuously 360°, Tilt 0~90° with auto-flip |
| Auto-flip | Tilt down 90°, with auto-flip 180° |
| Scan | 355º programmable, 4 scan |
| Pattern | 4 patterns, and each record time is not less than 180s |
| Tour | 4 tour and speed & park time of presets can be set |
| Remote controlling | RS485 |
| Baud rate (RS485) | 2400 / 4800 / 9600/19200 bps |
| ID range | 1-254(software add.) |
| Output | AHD |
| Protocols | Pelco D, Pelco P |
| Input Voltage | DC 12V, 2 AMP |
| Power consumption | 9W/25W (IR_LED ON) |
| Operating Temperature | -10°C ~ +50°C |
| Size | 8in x 8.5in |
| IP Standard | IP66 |
