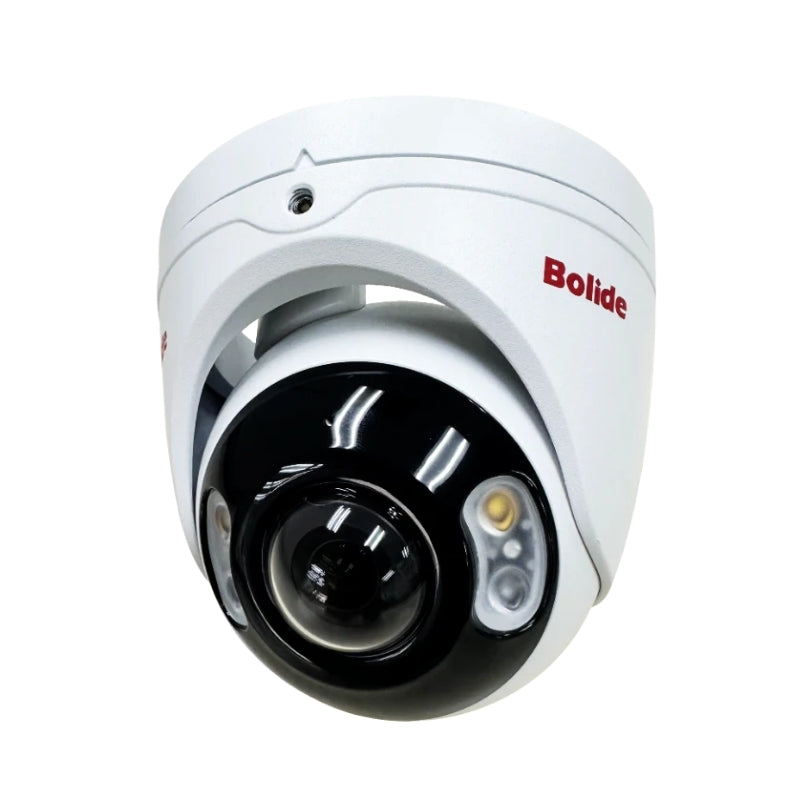

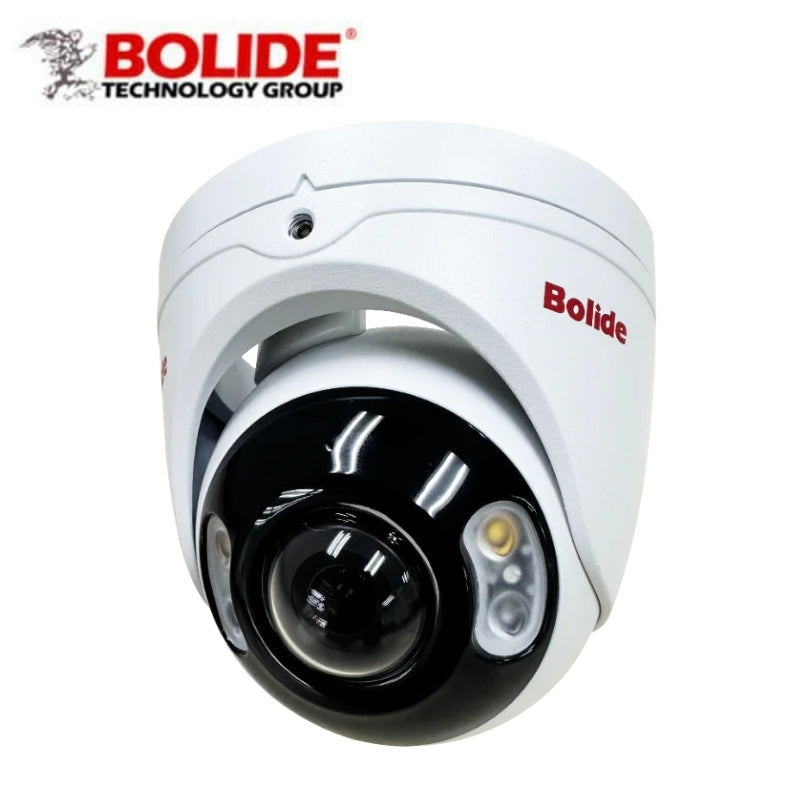

Bolide / BN9109‑PN / Dual Sensor / 180° Panoramic Turret Camera (4K) / Facial Rec / Micro SD Slot / IP67 Waterproof Housing / NDAA Compliant
Available to Order
SKU:
BOL-BN9109-PN
NSID:
78635
- $688.00
-
$825.60 - $688.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Bolide BN9109‑PN is a premium 4K (8 MP) H.265+ panoramic turret camera designed for expansive, high-detail video surveillance. Featuring a fixed 2.0 mm panoramic lens, it captures seamless 180° visuals. The camera delivers vivid full-color imaging at night via warm LED lights (up to 82 ft) and supports IR illumination too. With built-in PoE and 12 VDC options, rugged IP67 and IK10-rated housing, and advanced AI analytics, it ensures robust and intelligent monitoring, including NDAA compliance.
| Technical Specifications - Bolide BN9109-PN | |
|---|---|
| Image Sensor | 1/2.8″ Progressive CMOS |
| Lens | 1.68 mm @ F2.0, M12 mount |
| Day/Night | IR-cut filter with auto-switch |
| Field of View | 180° panoramic coverage |
| Max Resolution | 8 MP (3840 × 2160) |
| Shutter Speed | 1/5 s to 1/100,000 s |
| Dynamic Range | 120 dB Super Wide Dynamic Range (WDR) |
| Noise Reduction | 2D & 3D Digital Noise Reduction (DNR) |
| Minimum Illumination | Color: 0.012 Lux @ F2.0 (0.01 Lux @ F1.2) B/W: 0 Lux (with IR on) |
| IR Range | Up to 82 ft (25 m) |
| Compression Formats | H.265+, H.265, H.264, MJPEG |
| Bit Rate | 16 Kbps to 16 Mbps |
| Frame Rates |
60 Hz Region: - 3840×2160 @ 25 fps - 3456×1936 / 3200×1800 / 2880×1624 / 2560×1440 / 1920×1080 / 1280×720 @ 30 fps 50 Hz Region: - 3840×2160 @ 25 fps - 3456×1936 / 3200×1800 / 2880×1624 / 2560×1440 / 1920×1080 / 1280×720 @ 25 fps |
| Network Interface | 1× RJ45, 10/100 Mbps |
| Standards | ONVIF Profile G, Q, S, T; Custom API |
| Power Options | 12 VDC ±10% or PoE (802.3af) |
| Power Consumption | Max 13.1 W |
| Operating Temperature | –40 °F to 140 °F (≤ 95% humidity) |
| Housing Rating | IP67 weatherproof, IK10 vandal-resistant |
| Dimensions | 4.58″ (Ø) × 3.84″ (H) |
| Weight | 1.69 lb |
| AI & Analytics | - Human & vehicle detection - Line-crossing detection - Heatmap for foot traffic - Rare sound detection (gunshots, glass breaks) - Stationary object detection |
| Night Vision | Full-color warm LED & IR up to 82 ft |
