Bolide - BTG1209 - HDCVI / 2MP / Eyeball Camera / Fixed / 3.6mm Lens / IP66 / 20m IR / DC12V / Charcoal Gray
- Product SKU: BOL-BTG1209IROD-AHQ
- NSID: 23453
-
BOL-BTG1209IROD-AHQ

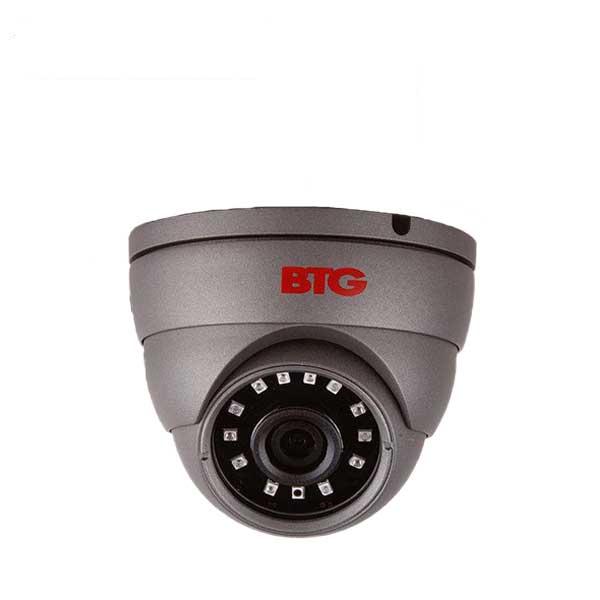

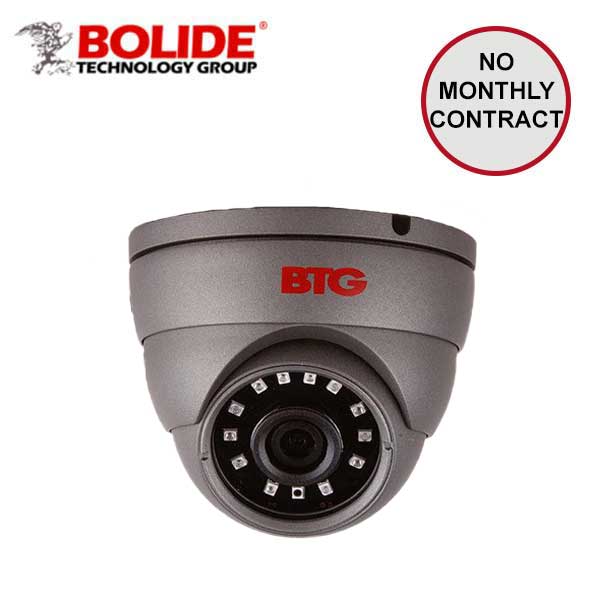

The new BTG1209 is a 2MP IR Eyeball Analog camera that has a fixed lens which allows it to take high quality footage up to 20m (65ft). Comes with high-performance processor 2.0 mega pixel CMOS imaging sensor, and is IP66 waterproof. Perfect for places with high activity, this camera is made for tough situations, and Its super easy to install.
Features:
- 2MP HD Analog Output (AHD/TVI/CVI)
- 1/2.9” High-Performance Progressive Scan CMOS
- No Delay, Long Distance transmission Up to 400 meters
- 3.6mm Fixed Lens
- Low illumination, auto color to black
- ICR switch, day & night monitor
- Applicable to wherever high security monitoring is needed.
Specifications:
| Image Sensor | 1/2.9” 2MP Progressive Scan COMS |
| Resolution | 1920 x 1080 |
| Image System: | PAL / NTSC |
| Electronic Shutter | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Min illumination | Color: 0.08 lux @ (F1.2, AGC ON), 0 lux with IR |
| IR Distance | 20m |
| Focal Length | 3.6mm fixed lens |
| Video Output: |
1HD TVI/AHD/CVI/CVBS output |
| Video Frame Rate | 1080P@25fps, 1080P@30fps |
| D&N |
ICR EXT/Auto / Color/ BW (Black and White) |
| SMD |
24 PCS Minicrystal Led |
| Image set | Brightness, sharpness, digital noise reduction, color, Saturation |
| Power Supply | 12VDC ± 10 % |
| Power consumption | Max. 4W with IR cut filter on |
| Working Temp. | -20°C ~ 60°C |
| Working Humidity | ≤90% |
| Protection Class | IP66 |
| Dimensions | 93 x 93 x 68mm (3.7 x 3.7 x 2.7in) |
Downloads:
