Bolide - IP / 2MP / Network Pinhole Camera / Fixed / 2.8mm Lens / Multiple Streams / Facial Recognition / 12VDC
- Product SKU: BOL-BN600AI
- NSID: 23440
-
BOL-BN600AI

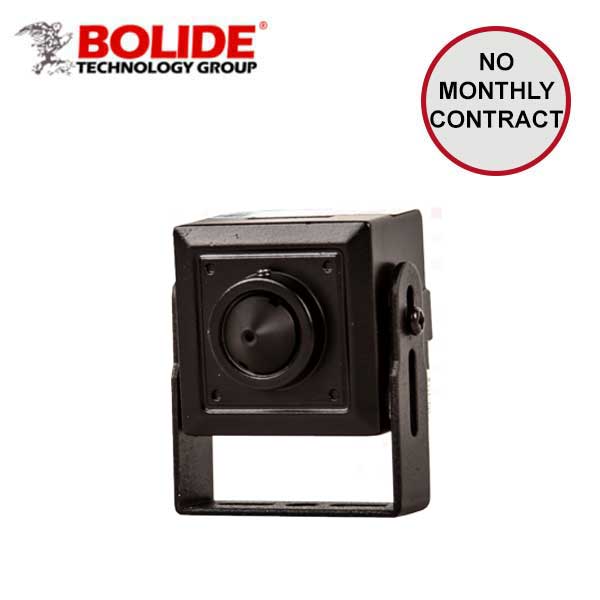

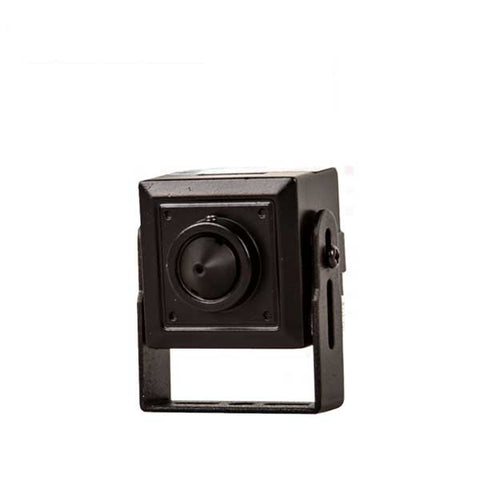

This BN600AI is a 2MP IR Pinhole camera that has a fixed lens which allows it to take high quality footage despite the size. Comes with high-performance processor 2.0 mega pixel CMOS imaging sensor. Perfect for providing undetected surveillance, they can be used to monitor vandalism, theft, and break ins, without anyone noticing the camera.
Features:
- 1/2.8" Progressive Scan CMOS
- 3 Streams
- Built-in Micro SD
- True WDR >120dB
- H.265/H.264/MJPEG
- 1920x1080/30fps
- Motion Detection
- Network disconnect
- iPac AI Enabled with Facial Recognition System
Specifications:
| Image Sensor: | 1/2.8” Progressive Scan CMOS |
| Effective Pixels: | 1920(H)×1080(V) |
| Electronic Shutter: | 1/5-1/20,000s |
| Min Illumination: | Color: 0.001Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON) |
| Wide Dynamic Range: | True WDR >120dB |
| Lens: | 2.8mm Fixed Pinhole Lens |
| View Angle: | 84 degrees |
| Compression: | H.265, H.264, MJPEG |
| Max Resolution: | 1080P(1920×1080) |
| Stream / Frame Rate: | Stream1: 1920×1080/1280×720 @50/60fps Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps Stream3: VGA/CIF/QVGA @25/30fps |
| Bit Rate Control: | CBR / VBR |
| Bit Rate: | Stream1: 200kbps~12000kbps Stream2: 100kbps~6000kbps Stream3: 100kbps~3000kbps |
| Noise Reduction: | 2D / 3D DNR |
| Audio Compression: | G.711, RAW_PCM |
| Audio Bit Rate: | 8kbps, 16kps, 64kbps |
| Intelligence IVS: | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Power Supply: | DC12V, POE |
| Power Consumption: | 3 Watts Max |
| Dimensions: | 37.6 x 34 x 46.5mm (1.5 x 1.3 x 1.8in) |
Downloads:
