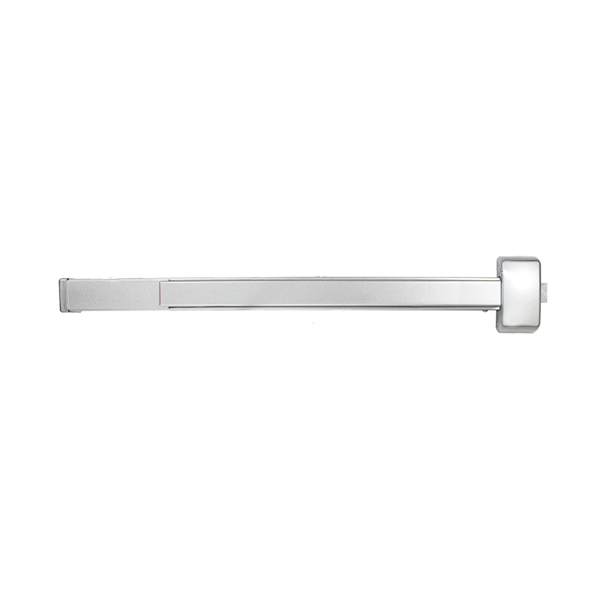

Cal-Royal - A2200EO36 - Rim Exit Device - Aluminum - Grade 1
Available to Order
SKU:
CRL-A2200EO36-AL
NSID:
49201
- $164.53
-
$197.44 - $164.53
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.
Features:
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Retrofits Sargent 12-2828 and 12-2838 Series
- Conforms & Meets ADA Regulations.
- Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
- UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
- UL Listed for Fire Exit Hardware. 3 hours. (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
- Chassis mounted unit construction.
Specifications:
| For Doors | 1 ¾” thick standard optional 2 ¼” thick. 4 ½” minimum stile width required for single or double door application using standard 239 strikes and pull or lever trims |
| Chassis | Non-ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-ferrous alloy. Covers stock hollow metal doors with 161 cutout |
| Mounting | Furnished standard with wood and machine screws. Thru bolts are standard packaging on fire-rated devices. |
| End Cap | Steel construction |
| Handing | Non handed, center hub. 2 ¾” backset |
| Latch Bolt | Stainless steel ¾” throw |
| Spring | Stainless steel throughout |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge steel, painted |
| Dogging Feature | Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available |
