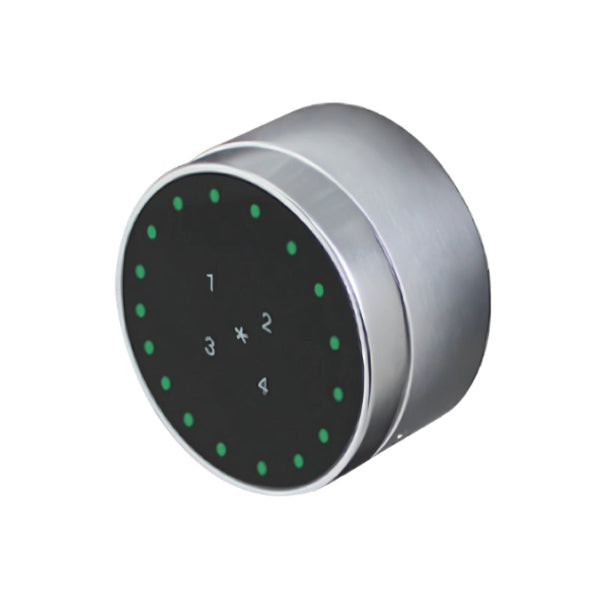

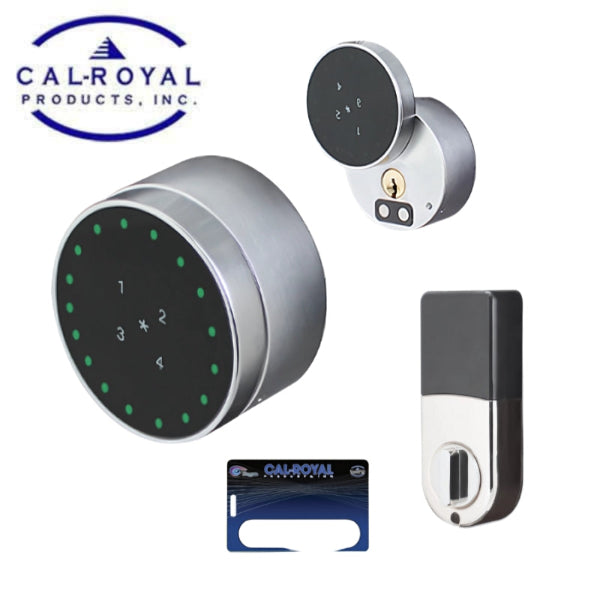

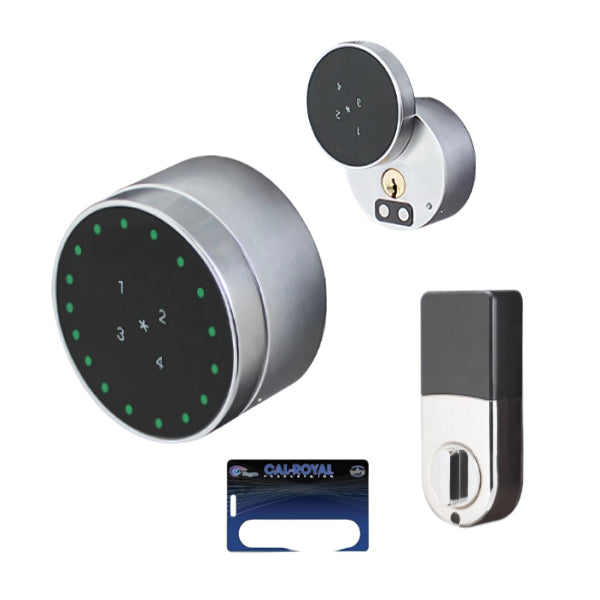

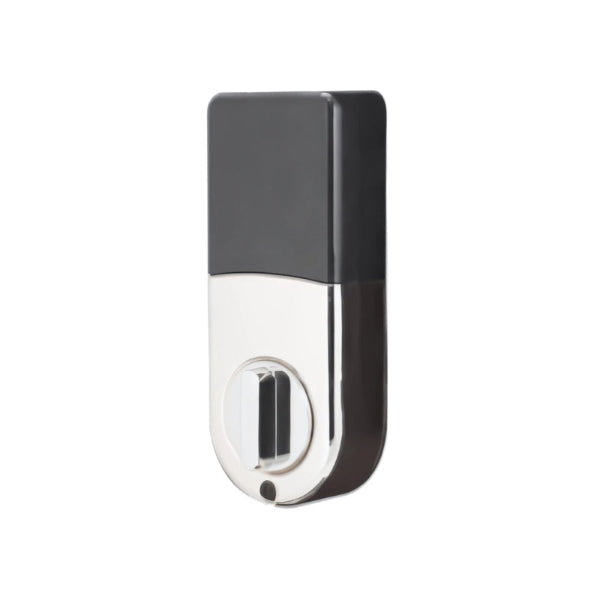

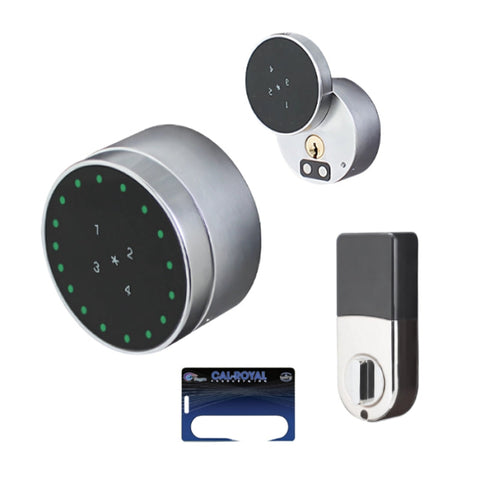

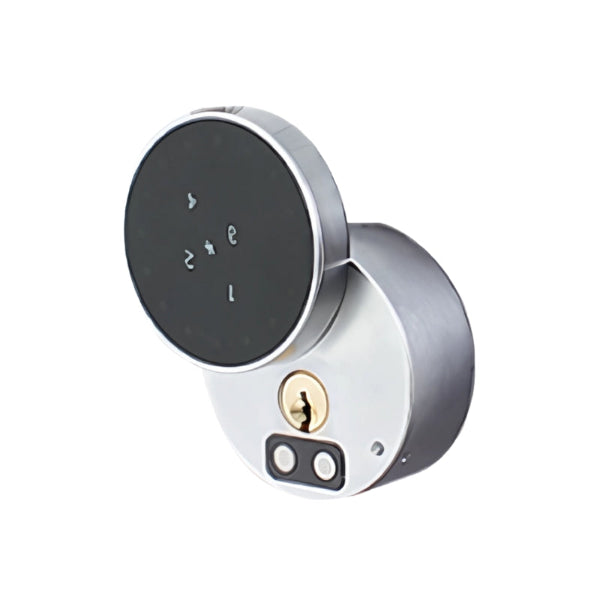

The Cal-Royal DB9000 is a Grade 2 electronic touchscreen deadbolt designed for both residential and standard-duty commercial applications. It combines modern aesthetics with robust security. Its digital touchscreen interface allows for keyless entry, while Bluetooth Low Energy (BLE) technology enables management via the K3 (Apple) and K3+ (Android) apps. Users can unlock doors using smartphones, RFID cards, key fobs, or traditional keys. An optional BLE Gateway facilitates remote management over the internet.
Features:
- Apple and Android Compatible
- BLE (Bluetooth Low Energy) management (optional gateway connectivity)
- Proximity RFID card (13.56MHz) standard
- Digital touchscreen
- Timestamped access log (Audit Trail)
- 1 Admin phone, 49 client phones per deadbolt
- 50 digital combinations per deadbolt
- 50 RFID cards / key fobs per deadbolt
- 10,000 audit trail entries
- 1 admin phone can manage up to 150 deadbolts
- Emergency key override
- Individual user access mode
- Door jam protector
- Smart L / R handing learning
- Key / thumb-turn turning detector
- One-tap locking
- Weather resistant
- Buzzer and LED indicators
- Anti-Tamper lockout
- Low battery warning
- Emergency charge interface
- 1-year electronic warranty
Specifications:
| Applications | For residential and standard duty commercial applications |
| Door Ranges | 1-3/8" to 1-3/4" thickness |
| Backset | Adjustable 2-3/8" (60mm) or 2-3/4" (70mm) |
| Latch Faceplate | 2-1/4" to 1" |
| Proximity Card (standard) | 2pcs. included. Compatible with existing MIFARE infrastructure. operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1-3/16". |
| Power Supply | 4 AA 1.5V Alkaline Batteries (Comes standard in packaging) |
| Radio Frequency | Bluetooth radio frequency: 2.4GHz |
| Cylinder & Keyways | 6-Pin solid brass "C" keyway standard |
| Weather Resistant | All models are weather resistant for operating temperature ranges of +158°F to -4°F (+70° to -20°C) and storage temperature ranges of 176°F to -22°F (+80°C to -30°C) |
| Bluetooth Connectivity | Lock can be managed/synced using the K3 (Apple) and K3+ (Android) app. |
| Access Log (Audit Trail) | The K3 app features a 24/7 activity log, so you can keep track of which client accessed the lock. A timestamped access log can be shared by the admin phone via email. 10,000 audit trail entries |
| Strike | Deadbolt strike 1-1/8" x 2-3/4" |
| User ID Capacity | 1 Admin + 49 client phones + 50 digital touchscreen combinations + 50 (Cards/Key Fobs) |
