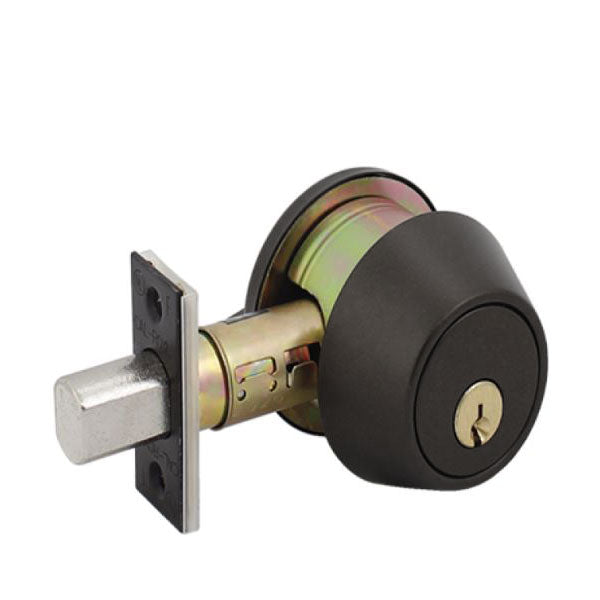

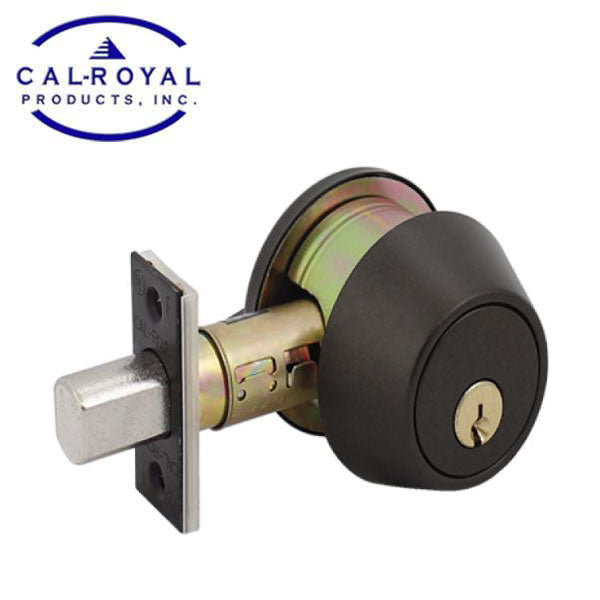

Cal-Royal - Maximum Security Deadbolt - Single Cylinder - Heavy Duty - Black Coated - Grade 2

In Stock
SKU: CRL-ULT360-E0152-US1
NSID: 32834

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$47.65
$54.00
$47.65

Features

  • Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 2
  • Lifetime Warranty
  • Solid brass 6 pin “C” keyway cylinder, optional other keyways
  • ADA (American Disability Act) Ergonomic Thumbturn
  • Tapered cylinder guard and metal insert, turns free with any removal attempt
  • Deadbolt thrown or retracted by key from outside or by inside turn unit.
  • Bolt automatically deadlocks when fully thrown.
  • Adjustable latch bolt

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Handing Non-Handed
Cylinder

Standard 6-pin solid brass “C” keyway

Door Thickness 1-3/8" (35 mm) - 1-3/4 " (44.5 mm)
Backset 2 3/8" (60 mm)
Deadbolt Faceplate Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations
Material Wrought Brass or Stainless Steel
Strike 1-1/8" x 2-3/4" square corner
Bore Diameter 1” for latch, 2 ⅛” for lock housing.
Finish US1 - Flat Black Coated
Certifications
Grade 2
Manufacturer Warranty Limited lifetime mechanical warranty
