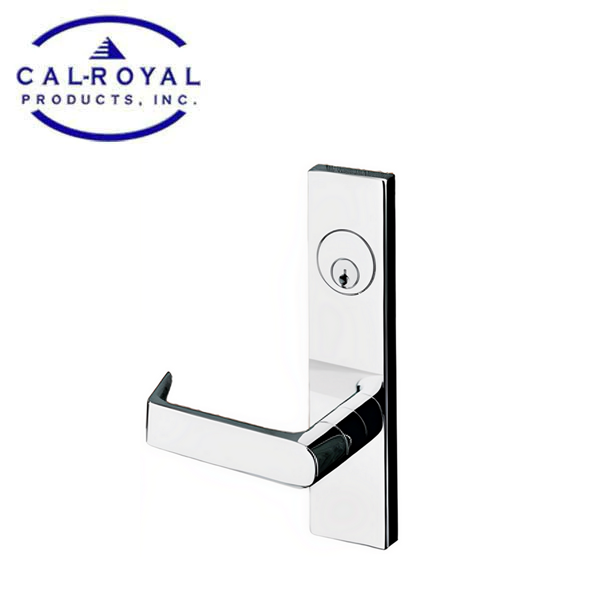

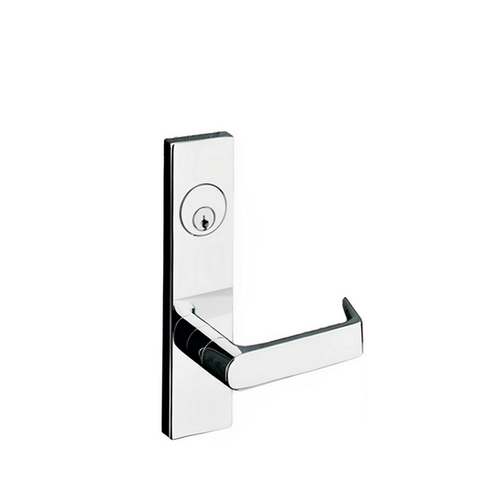

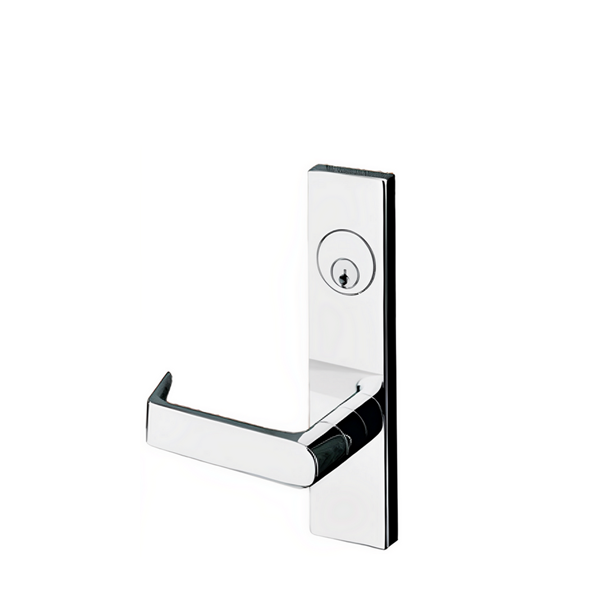

*Discontinued* Cal-Royal - NM8466SE - NM Series Mortise Lock - Heavy Duty - Storeroom Function - SE Escutcheon - 2 3/4" Backset - Polished Chrome - Fired Rated - Grade 1
Out of Stock
SKU:
CRL-NM8466SE-LH-US26
NSID:
67465
67466
- $262.16
-
$314.59 - $262.16
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Features:
- BHMA Certified Lifetime Warranty
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Rust-proof heavy duty 2 ¾" backset lock case
- Individual spring to prevent lever sag, easily reversible
- Forged brass lever handles exceed requirements of ADA (American Disability Act)
- Auxiliary latch bolt
- Armored front plate conceals lock mounting screws
- 1" throw heavy duty deadbolt with anti-saw hardened pins
- Heavy duty ¾" latch bolt with anti-friction latch, easily reversible
- $262.16
-
$314.59 - $262.16
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Function: | Storeroom |
| Door Thickness: | 1-3/4" |
| Handing: | Left or Right |
| Backset: | 2-3/4" (70mm) |
| Strike: | Brass, non-handed curved strike 4-7/8" x 1 1/4" |
| Deadbolt: | 1" throw, brass, chrome plated with hardened steel rollers |
| Latch Bolt: |
Brass, chrome plated with heavy-duty deadbolt |
| Trims: | SE Escutcheon |
| Finishes: | Polished Chrome |
| Fire Rated: | 3-hour fire door |
| Certifications: | Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles |
Downloads:
