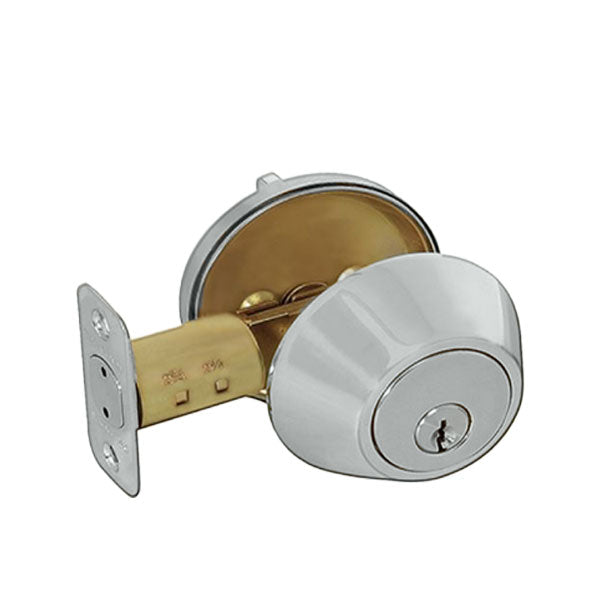

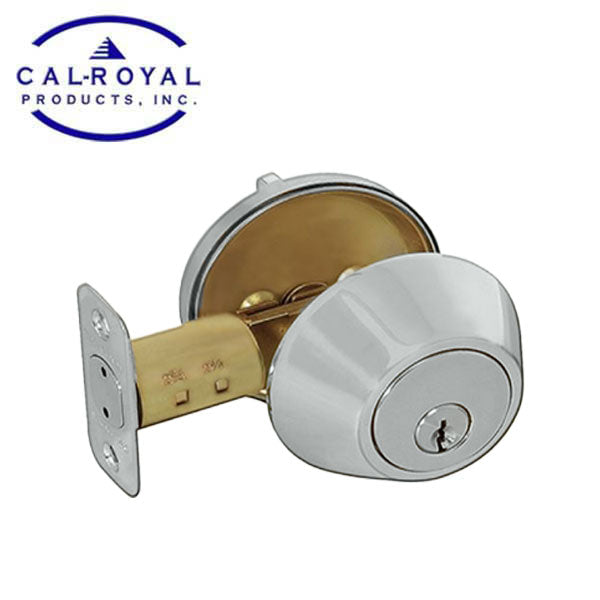

Cal-Royal - Single Cylinder Deadbolt - 2 3/8" Backset - Satin Chrome - Grade 3
In Stock
SKU:
CRL-ED-500-US26D
NSID:
36767
- $16.31
-
$19.57 - $16.31
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Features
- Conforms with ANSI A 156.2 Series 4000, GRADE 3
- 5 Year Finish Warranty, 25 Year Mechanical Warranty
- ADA (American Disability Act) Ergonomic Thumbturn
- Kwikset keyway. Re-keyable for master and construction keying
- All metal body and cylinder construction
- Reversible for left & right handed doors
- Full 1” throw deadbolt with hardened steel pin to prevent saw cutting
Specifications
| Handing | Non-Handed for Left or Right hand doors |
| Cylinder | Standard 6-pin solid brass Kwikset “C” keyway |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4 " (44.5 mm) |
| Backset | 2-3/8" (60 mm) or 2-3/4" |
| Deadbolt | 1” Throw |
| Material | Brass |
| Strike | 1” x 2 ¼” Round corner |
| Handing | Reversible for Right and Left Handed Doors |
| Finish | US26D - Satin Chrome |
| Certifications |
Grade 3 |
| Manufacturer Warranty | 5 Year Finish, 25 Year Mechanical |
