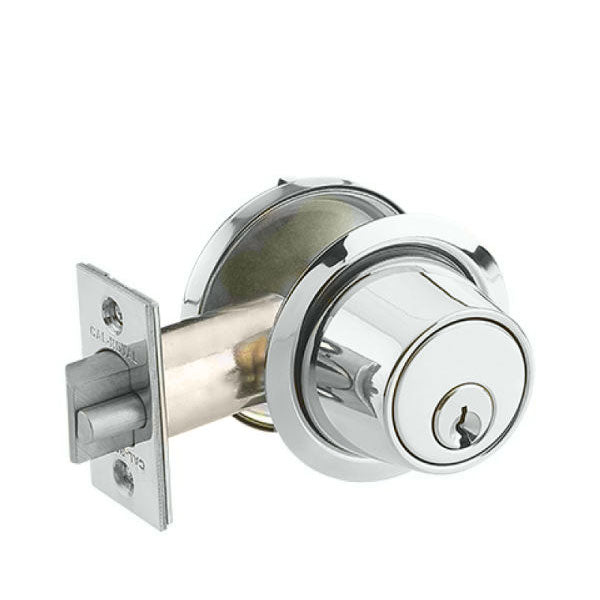

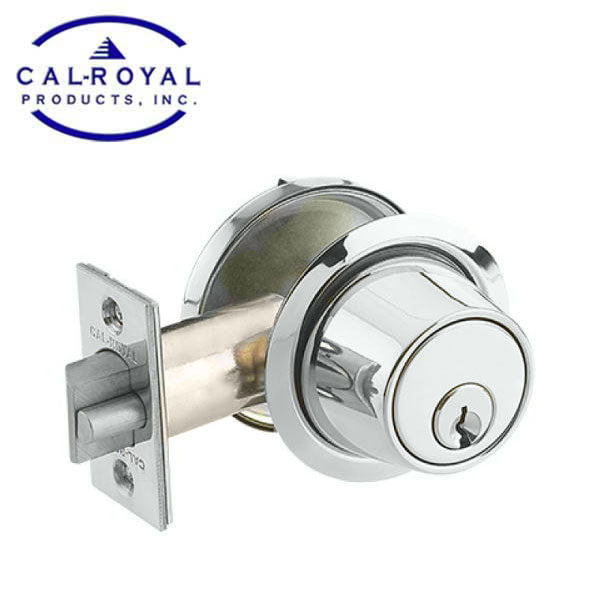

Cal-Royal - Single Cylinder Deadbolt - Standard Duty - Gate Latch - Satin Chrome - Grade 2
Available to Order
SKU:
CRL-GL160-26D
NSID:
32935
- $51.85
-
$62.22 - $51.85
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Features
- Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 2
- Lifetime Warranty
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- ADA (American Disability Act) Ergonomic Thumbturn
- Tapered cylinder guard and metal insert, turns free with any removal attempt
- Adjustable latch bolt
Specifications
| Handing | Non-Handed for Left or Right hand doors |
| Cylinder | Standard 6-pin solid brass “C” keyway |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4 " (44.5 mm) |
| Backset | 2 3/8" (60 mm) |
| Deadbolt Faceplate | Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations |
| Material | Wrought Brass or Stainless Steel |
| Strike | 1-1/8" x 2-3/4" square corner |
| Bore Diameter | 1” for latch, 1 ½” or 2 ⅛” for lock housing |
| Finish | US26D - Satin Chrome |
| Certifications |
Grade 2 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
