Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum
Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum
Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum
Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum
Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum

Camden CM-2020 - Flush Mount Narrow Key Switch - SPDT Momentary - Brushed Aluminum

$59.71 $102.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CM-2020
  • CMD-CM-2020
    Item number: 6907

    Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .

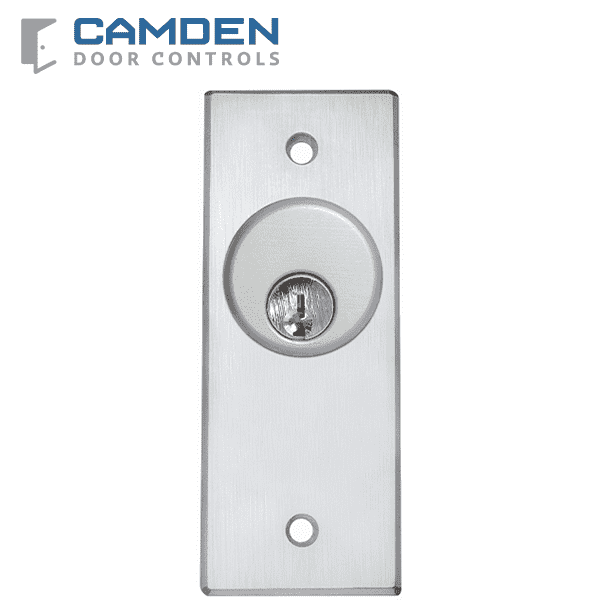

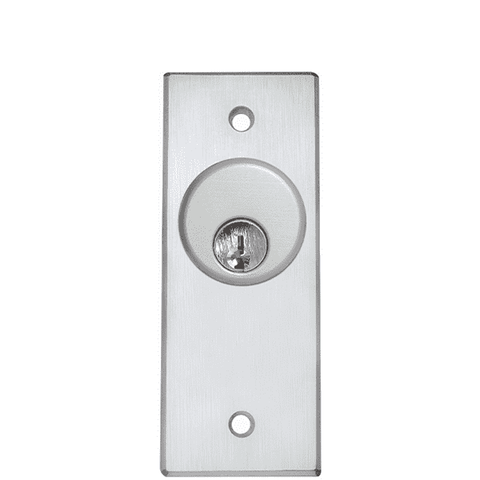

    NOTE: photo shown with optional LED* *Mortise Cylinder Sold Separately**

    • Indoor or outdoor flush applications
    • Accepts standard mortise cylinders (1" - 1-1/4")
    • Mullion style - only 1-3/4" wide
    • Heavy duty 1/4" thick aluminum plate
    • 1 piece die cast construction
    • Locators prevent cylinder from spinning
    • Cylinder sits flush to faceplate
    • Tamper proof screws and driver provided
    • No set screw required
    • 1 or 2 switches may be installed
    • Heat shrink protective sleeve over contacts
    $59.71
Specifications:

Voltage:  12/24V AC/DC
Contact Rating:  6 A @ 30 VDC
Switch Life:  100,000 cycles
Temp Range:  32°F to 85°F (0°C to +85°C)
Std. Finish:  Brushed Aluminum
Dimensions:  Narrow: 4-1/2" x 1-3/4" x 1-1/2"
(114mm x 44m x 42mm)





Spec Sheets
  • CM-1100-2000_Spec Sheets_R5 pdf 0.64 DOWNLOAD
Reference Guides
  • Key Switch_Cross Reference pdf 0.15 DOWNLOAD
Manuals
  • CM-1100_2200_Manual_R1 pdf 0.62 DOWNLOAD
