Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer
Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer
Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer
Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer
Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer

Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer

$79.99 $136.00
Availability: In Stock
  • Product SKU: CMD-CM-30EE
  • NSID: 1346
  • CMD-CM-30EE

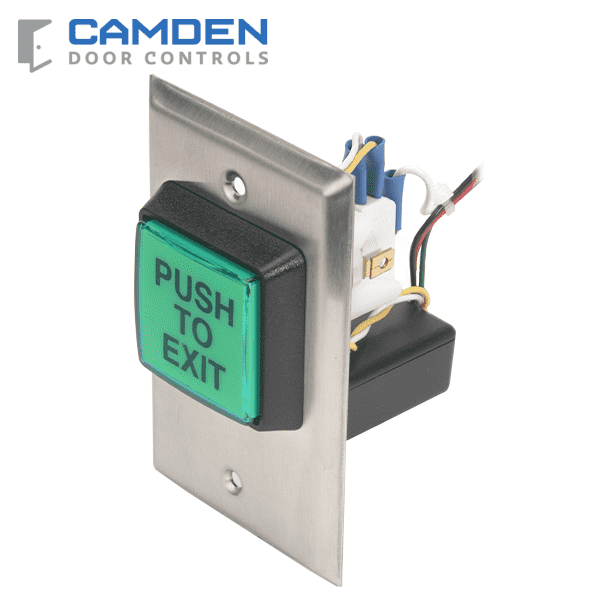

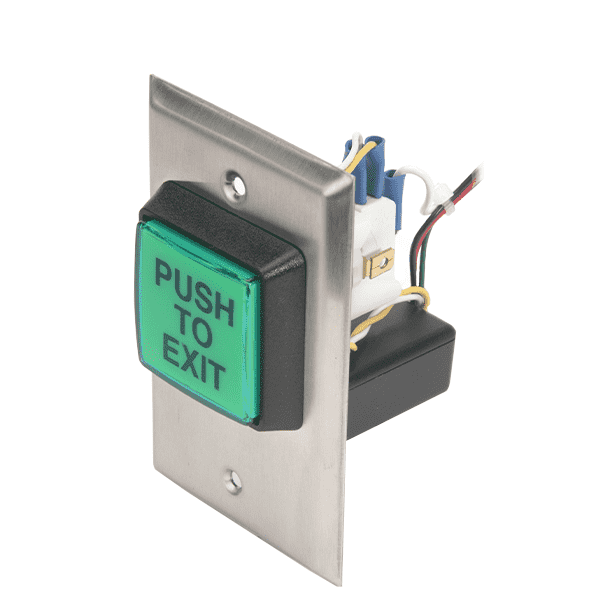

    CM-30EE and CM-30AT LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws.

    CM-30EE is supplied with an integrated 30 second fixed timer. CM-30AT is supplied with an adjustable 30 second timer. Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included.

    • Large 2" square illuminated button mounted on stainless steel faceplate
    • Heavy duty stainless steel faceplate
    • CM-30EE: 30 second fixed timer
    • CM-30AT: 30 second adjustable timer
    • In-wall back box included
    • 12/24V with LED bulb
    • Tamper proof screws and driver included
    • CM-30EE: Double break design for additional security
    • 3 year warranty with '2 for 1' replacement

    $79.99
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Voltage: 12/24 VDC
Contact Type: SPDT Form 'C'
Contact Rating: 10 A @ 30 VDC
Switch Type: Momentary
Dimensions: 4-1/2" x 2-3/4" x 2-1/2” (114.3mm x 69.85mm x 63.5mm)
Std. Finish: US/C 32D
Mounting: Single gang in-wall box included


Spec Sheets
  • CM-30EE-AT_Spec Sheets_R2 pdf 0.44 DOWNLOAD
Reference Guides
  • Push/Exit Button_Cross Reference pdf 0.20 DOWNLOAD
Manuals
  • CM-30EE_EELED_Manual pdf 0.56 DOWNLOAD
