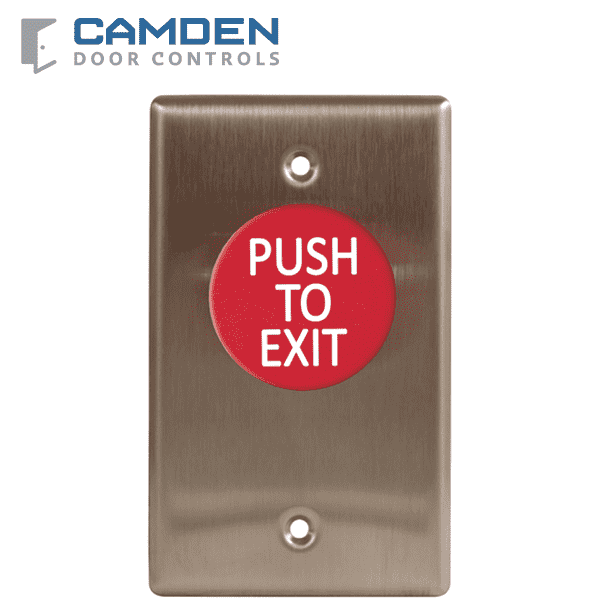

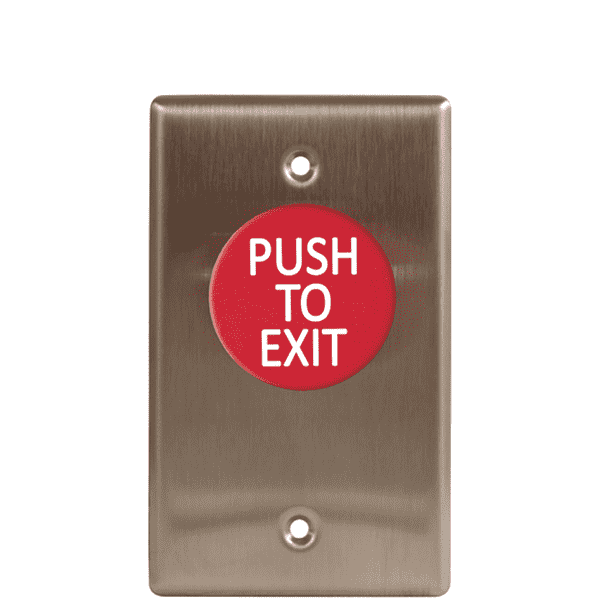

Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC
Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC
Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC
Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC
Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC

Camden CM-420RPTE - Push/Exit Single Gang Mushroom Switch - Momentary - 12/24 VDC

$54.99 $82.00
Availability: In Stock
Wishlist
  • Product SKU: CMD-CM-420RPTE
  • NSID: 1370

  • CMD-CM-420RPTE

    CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.

    • 1-5/8" (40mm) diameter button
    • Vandal resistant free-spinning, heavy-duty button
    • Vandal resistant 18 gauge stainless steel faceplate
    • Single gang, double gang and narrow faceplates
    • 3 year warranty with '2 for 1' replacement

    $54.99
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications;

Voltage: 12/24 VDC
Contact Rating: 6 A @ 30 VDC
Switch Type: Momentary
Dimensions: CM-400:
4-1/2"H x 2-3/4"W x 1-3/4"D
(114mm x 70mm x 44mm)
CM-400N:
4-1/2"H x 1-3/4"W x 1-3/4"D
(114mm x 44mm x 44mm)
CM-400W:
4-1/2"H x 4-1/2"W x 1-3/4"D
(114mm x 114mm x 44mm)
Std. Finish: US32 / C32D


Spec Sheets
  • CM-400_Spec Sheet_R7 pdf 0.61 DOWNLOAD
Reference Guides
  • Push Button Switch_Cross Reference pdf 0.15 DOWNLOAD

CMD-CM-420RPTE

CM-400 Series mushroom push buttons are available in red, blue, or green (other colors on request), with a 1-5/8" (40mm) diameter. To protect against vandalism, the buttons are free-spinning. They are supplied with an industrial grade 18 gauge stainless steel faceplate.

  • 1-5/8" (40mm) diameter button
  • Vandal resistant free-spinning, heavy-duty button
  • Vandal resistant 18 gauge stainless steel faceplate
  • Single gang, double gang and narrow faceplates
  • 3 year warranty with '2 for 1' replacement

Specifications;

Voltage: 12/24 VDC
Contact Rating: 6 A @ 30 VDC
Switch Type: Momentary
Dimensions: CM-400:
4-1/2"H x 2-3/4"W x 1-3/4"D
(114mm x 70mm x 44mm)
CM-400N:
4-1/2"H x 1-3/4"W x 1-3/4"D
(114mm x 44mm x 44mm)
CM-400W:
4-1/2"H x 4-1/2"W x 1-3/4"D
(114mm x 114mm x 44mm)
Std. Finish: US32 / C32D


Spec Sheets
  • CM-400_Spec Sheet_R7 pdf 0.61 DOWNLOAD
Reference Guides
  • Push Button Switch_Cross Reference pdf 0.15 DOWNLOAD
