Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC
Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC
Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC
Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC
Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC

Camden CX-1000/74 - MicroMinder - Ultra Compact Adjustable Timer - 12/24V AC/DC

$29.96 $50.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-1000/74
  • CMD-CX-1000/74
    Item number: 6892

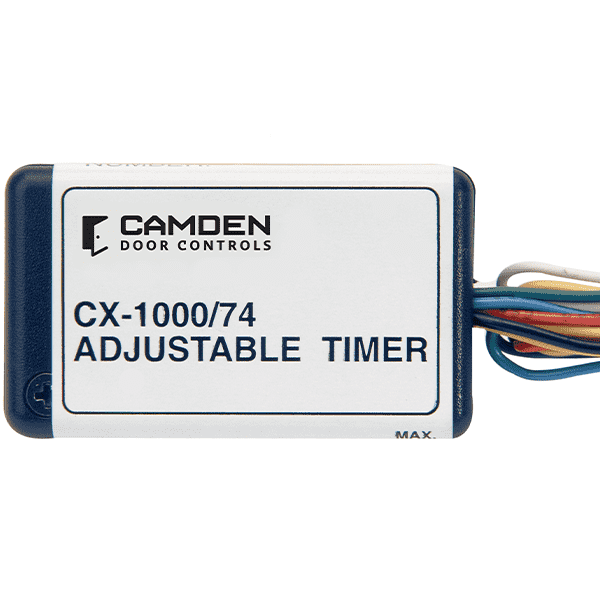

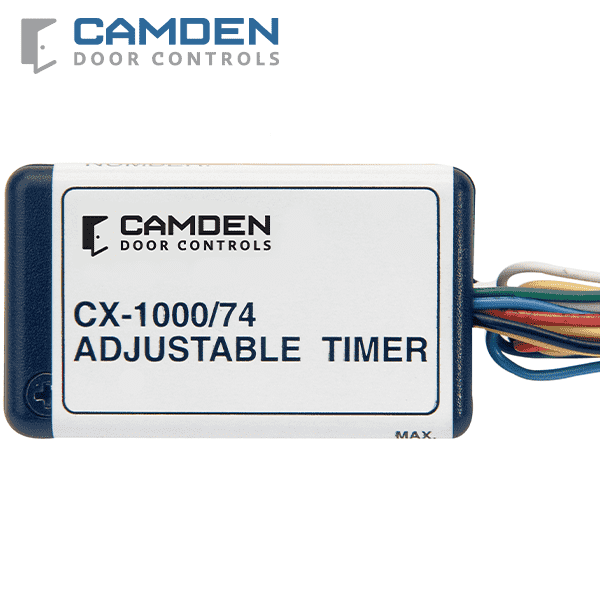

    Camden's ultra compact and affordable CX-1000/74 is a flexible and easy to operate 'delay on release' timer. The delay time is adjustable from 1 to 30 seconds via a simple potentiometer.

    Applications: Ideal for control of automatic door operators or de-energizing electrified locks such as strike or magnetic lock. Used where AC and DC operation is required or where an unprotected circuit board timer may be subject to damage.

    • Ultra compact design
    • Adjustable delay from 1-30 seconds
    • Color-coded leads and plastic case
    • 3 year warranty
    $29.96

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Voltage:  12/24V AC/DC
Current Draw:  20 mA idle
33 mA operating
Response Time:  .03 Seconds
Input:  N/O dry contact
Output:  Form 'C' (SPDT)
Contact Rating:  3 A @ 24 VDC
Electrical Life:  100,000 @ Rated Capacity
Time Delay:  1 - 30 Seconds
Mounting:  Double Sided Foam Tape
Enclosure:  Black Styrene Plastic


Spec Sheets
  • CX-1000-74_Spec Sheet_R1 pdf 0.37 DOWNLOAD
Reference Guides
  • Special Purpose Products Cross Reference pdf 0.14 DOWNLOAD
Manuals
  • CM-1000/74_Manual pdf 0.03 DOWNLOAD
  • CM-1000/74_Wiring Diagram pdf 0.02 DOWNLOAD
