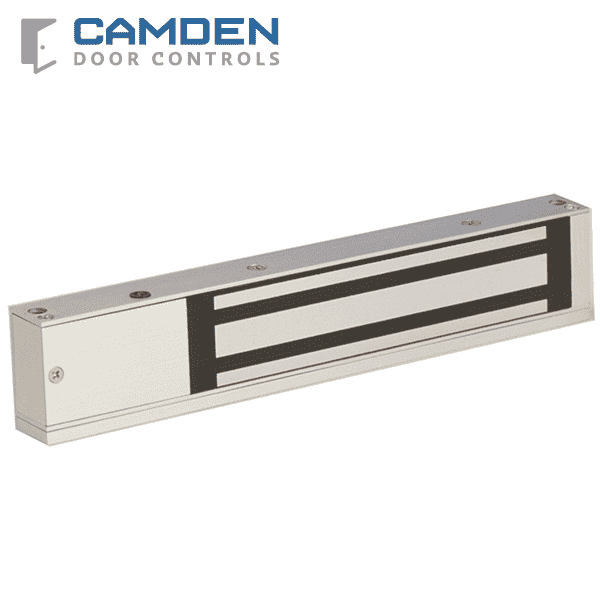

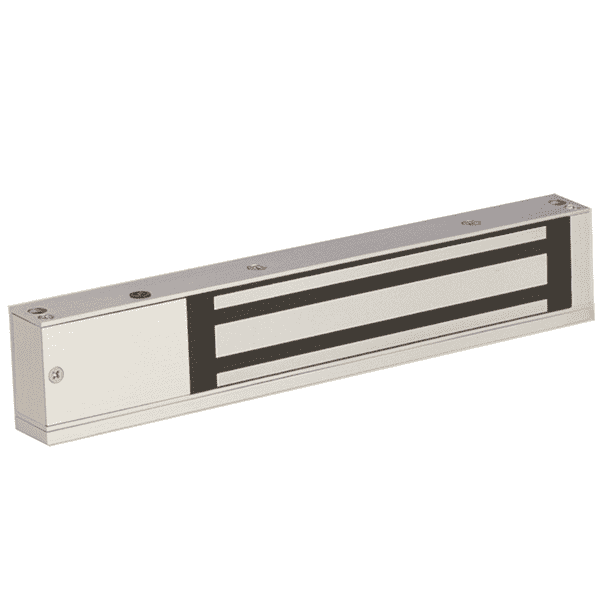

Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed
Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed

Camden CX-91S-06 - Single Door Surface Mount Mag Lock - 600 lb Holding Force - 12/24 VDC - UL/UCL Listed

$93.67 $160.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-91S-06
  • CMD-CX-91S-06
    Item number: 6887

    Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300, 600 and 1,200 Lb. models with the option of a built-in 'TDS' module that provide an adjustable timer, lock sensor, door status switch, relay and LED.

    • 600 and 1,200 Lb. single door models are UL and CUL listed
    • Weather and vandal resistant construction proven over thousands of installations
    • Surface and mortise mount models
    • Compatible with all access/egress systems
    • Field selectable 12/24 VDC operation
    • On board MOV power surge protection prevents damage to mag lock
    • A wide range of mounting brackets and spacers available
    • Lifetime warranty
    $93.67

Specifications:

Voltage:  12/24 VDC
Current Draw:  CX-90 Series: 360 mA @ 12 VDC
180 mA @ 24 VDC
CX-91 Series: 500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  TDS versions
Bond Sensor: 1 A @ 30 VDC
Door Status Switch: 0.5 A @ 30V AC/DC
Time Delay:  TLS versions: 0 to 30 Seconds
Dimensions:  CX-90S-03: 6-1/2" x 1-3/8" x 13/16"
(165mm x 35mm x 21mm)
CX-90M-03: 8" x 1-3/8" x 13/16"
(203mm x 35mm x 21mm)
CX-91S-06: 9-7/8" x 1-7/8" x 1"
(251mm x 48mm x 25mm)
CX-91M-06: 9" x 1-1/2" x 1-1/8"
(229mm x 38mm x 29mm)
CX-91S-12: 10-1/2" x 2-7/8" x 1-7/8"
(267mm x 73mm x 48mm)
Armature Plate:
300 Lbs.: 5-1/8" x 1-1/4" x 1/4"
(130mm x 32mm x 6mm)
600 Lbs.: 7-15/16" x 2-3/16" x 5/8"
(202mm x 56mm x 16mm)
1200 Lbs.: 7-15/16" x 3" x 5/8"
(202mm x 76mm x 16mm)


Spec Sheets
  • CX-Series Mag Locks_Spec Sheet_R2 pdf 0.52 DOWNLOAD
Reference Guides
  • Guide To Code Compliant Installation of Magnetic Locks pdf 0.77 DOWNLOAD
  • Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD
Manuals
  • CX-91S and 92S-06_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-06_Mounting Template pdf 0.13 DOWNLOAD
  • CX-91S and 92S-12_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S-12_Mounting Template pdf 0.05 DOWNLOAD
  • CX-91M-06_Manual pdf 0.59 DOWNLOAD
  • CX-90S-03_Manual_R1 pdf 0.37 DOWNLOAD
  • CX-90M-03_Manual_R1 pdf 0.53 DOWNLOAD
