Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC
Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC

Camden CX-94S-12LS - Surface Mount Gate Lock - 1200 lb Holding Force - Built-in Lock Sensor & Relay - 12/24 VDC

$140.51 $240.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-94S-12LS
  • CMD-CX-94S-12LS
    Item number: 6891

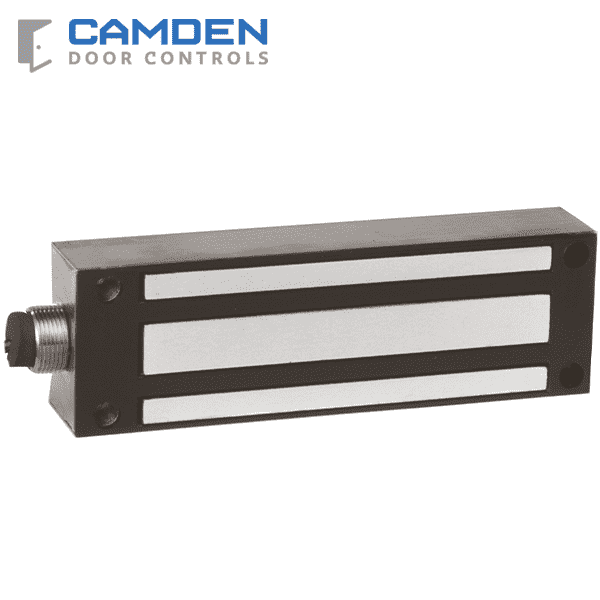

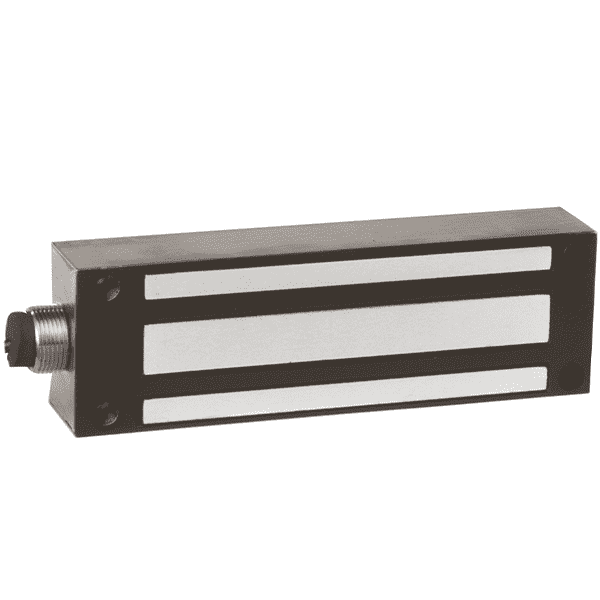

    Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects

    • 1,200 Lb. holding force
    • Compatible with all access/egress systems
    • Field selectable 12/24 VDC operation
    • Conduit fitting for weather resistant installation
    • Built-in lock sensor and relay
    • Lifetime warranty
    $140.51

Specifications:

Voltage:  12/24 VDC
Current Draw:  500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  Bond Sensor: 1 A @ 30 VDC
Dimensions:  8" x 2-1/2" x 1-5/8"
(203mm x 63mm x 41.5mm)


Spec Sheets
  • CX-94S-12LS_Spec Sheet pdf 0.25 DOWNLOAD
Reference Guides
  • Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD
Manuals
  • CX-94S-12LS_Manual_R1 pdf 0.44 DOWNLOAD

CMD-CX-94S-12LS
Item number: 6891

Camden CX-94S-12LS gate locks are rugged magnetic locks designed for outdoor applications. They offer exceptional performance and value with ultra low current draw, making them the ideal choice for most gating projects

  • 1,200 Lb. holding force
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • Conduit fitting for weather resistant installation
  • Built-in lock sensor and relay
  • Lifetime warranty

Specifications:

Voltage:  12/24 VDC
Current Draw:  500 mA @ 12 VDC
250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  Bond Sensor: 1 A @ 30 VDC
Dimensions:  8" x 2-1/2" x 1-5/8"
(203mm x 63mm x 41.5mm)


Spec Sheets
  • CX-94S-12LS_Spec Sheet pdf 0.25 DOWNLOAD
Reference Guides
  • Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD
Manuals
  • CX-94S-12LS_Manual_R1 pdf 0.44 DOWNLOAD
