$94.84 $162.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-ED1079D
  • CMD-CX-ED1079D
    Item number: 6880

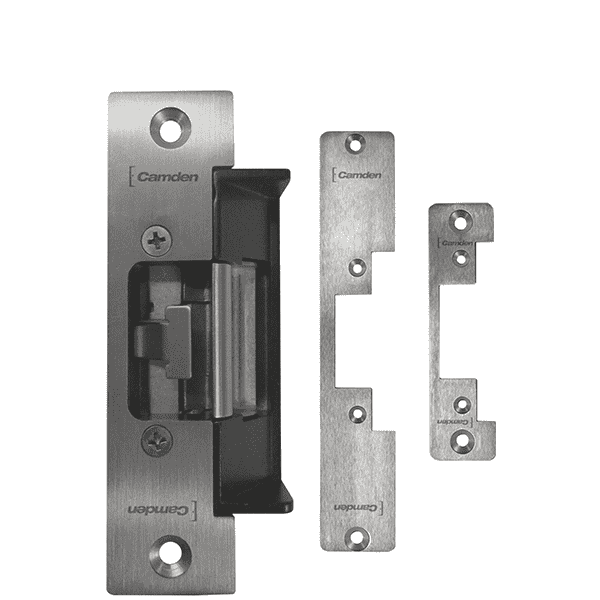

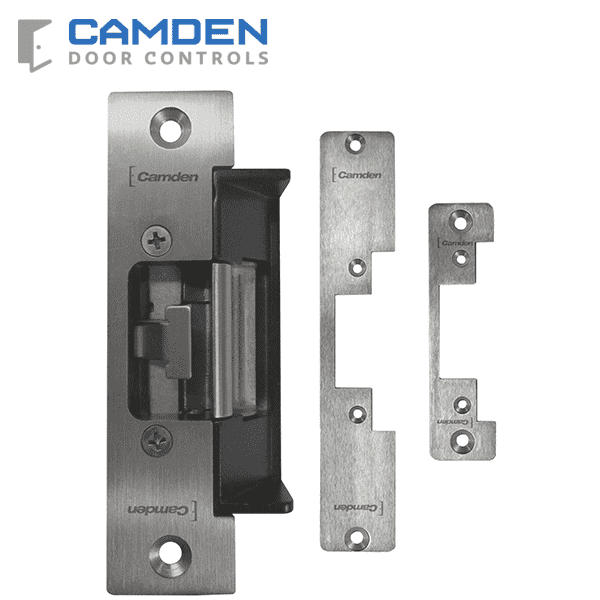

    CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.  Comes with 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B).

    • Centerline latch entry for cylindrical and mortise locksets.
    • CX-ED1079D, Std. Depth. 5/8" to 3/4" latch projection (throw)
    • Selectable 12/24V AC/DC
    • Selectable fail safe/fail secure operation
    • Horizontal adjustability of strike faceplate/body
    • 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
    • Continuous duty operation
    • Non-handed
    • 5 year warranty
    $94.84

Specifications:

Voltage:  12/24V AC/DC
Current Draw:  260 mA @ 12 VDC
150 mA @ 24 VDC
Static Strength:  1,500 Lbs.
Dynamic Strength:  70 Ft-Lbs.
Endurance:  1,000,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
Mode:  Selectable fail safe
fail secure
Operation:  AC - Buzz
DC- Silent
Duty:  Continuous
Latch Monitor:  Yes
Dimensions:  CX-ED1079D:
3-3/8"H x 1-3/4"W x 1-3/8"D
(86mm x 44mm x 35mm)


Spec Sheets
  • CX-ED1079_Spec Sheet R9 pdf 0.72 DOWNLOAD
Reference Guides
  • Strikes Cross Reference pdf 0.19 DOWNLOAD
  • Strikes Installer Guide pdf 2.60 DOWNLOAD
Manuals
  • CX-ED1079L/DL_Manual_Eng R6 pdf 0.57 DOWNLOAD
  • CX-ED1079L/DL_Manual_Fr R6 pdf 0.68 DOWNLOAD

CMD-CX-ED1079D
Item number: 6880

CX-ED1079D (standard depth, for 3/4" latch projection) 'Universal' grade 1 ANSI strikes offer 'Universal' performance with selectable 12/24V AC/DC and fail safe/fail secure operation, and have horizontal faceplate/body adjustment.  Comes with 3 stainless steel faceplates (CX-ESP1B, CX-ESP3B & CX-ESP4B).

  • Centerline latch entry for cylindrical and mortise locksets.
  • CX-ED1079D, Std. Depth. 5/8" to 3/4" latch projection (throw)
  • Selectable 12/24V AC/DC
  • Selectable fail safe/fail secure operation
  • Horizontal adjustability of strike faceplate/body
  • 3 stainless steel faceplates included: ANSI square, hollow metal and wood door frame
  • Continuous duty operation
  • Non-handed
  • 5 year warranty

Specifications:

Voltage:  12/24V AC/DC
Current Draw:  260 mA @ 12 VDC
150 mA @ 24 VDC
Static Strength:  1,500 Lbs.
Dynamic Strength:  70 Ft-Lbs.
Endurance:  1,000,000 cycles (Factory Tested)
250,000 cycles (UL Verified)
Mode:  Selectable fail safe
fail secure
Operation:  AC - Buzz
DC- Silent
Duty:  Continuous
Latch Monitor:  Yes
Dimensions:  CX-ED1079D:
3-3/8"H x 1-3/4"W x 1-3/8"D
(86mm x 44mm x 35mm)


Spec Sheets
  • CX-ED1079_Spec Sheet R9 pdf 0.72 DOWNLOAD
Reference Guides
  • Strikes Cross Reference pdf 0.19 DOWNLOAD
  • Strikes Installer Guide pdf 2.60 DOWNLOAD
Manuals
  • CX-ED1079L/DL_Manual_Eng R6 pdf 0.57 DOWNLOAD
  • CX-ED1079L/DL_Manual_Fr R6 pdf 0.68 DOWNLOAD
