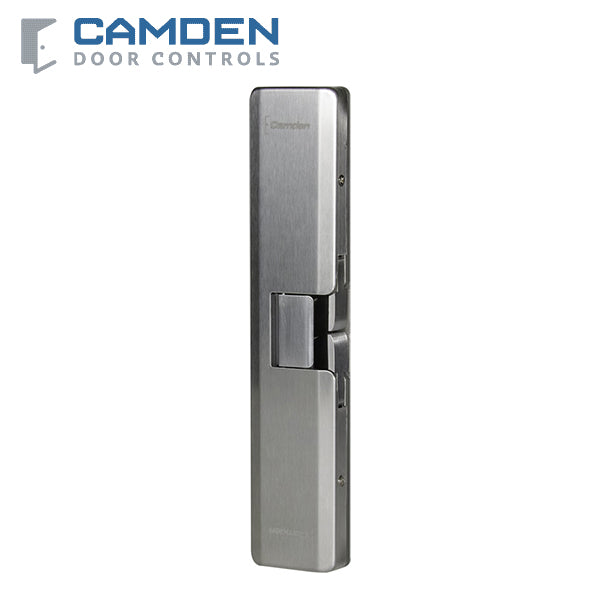

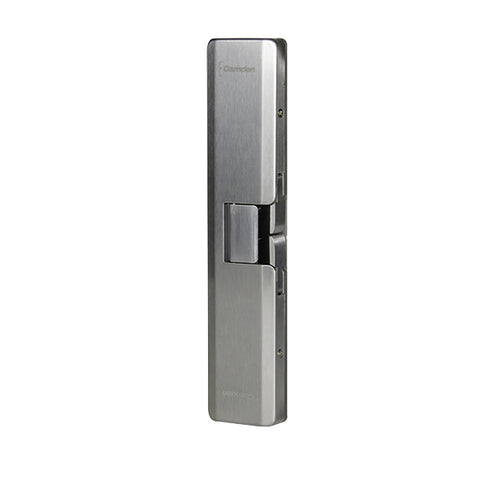

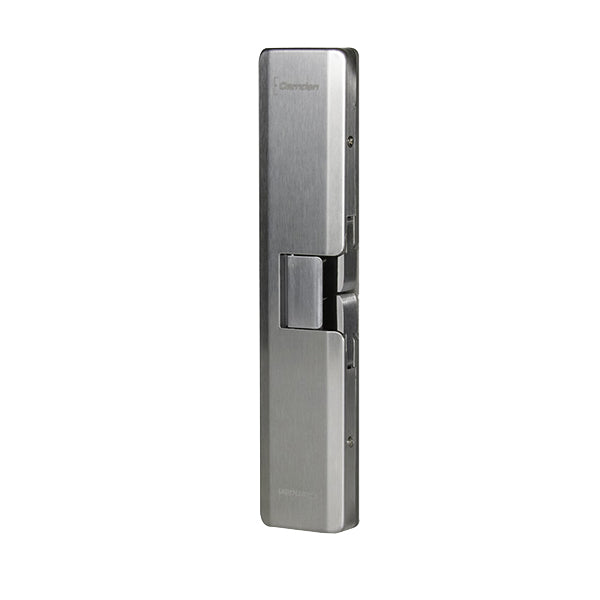

Camden - CX-EDP1289L - Electric Rim Strike - Latch Monitoring - Fire Rated - 12/24V AC/DC - Grade 1
Available to Order
SKU:
CMD-CX-EPD1289L
NSID:
66430
- $304.50
-
$330.48 - $304.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Camden introduces the first surface mount RIM strike with preload in the security industry. CX-EPD1289L grade 1 surface mount RIM strike, with latch monitoring, also offers a 'Universal' strike design that delivers unparalleled application flexibility, with both UL security and fire listings.
Preload is pressure exerted on the keeper of a strike that causes the mechanism to fail to release. Whether caused by air pressure, a misaligned door, or inexact installation, CX-EPD1289L RIM strikes are designed to operate where other strikes fail!
Special Features:
- ‘No Cut’ surface mount RIM strike for Pullman latches
- Operates with up to 15 lbs. of preload pressure
- 'Universal' design with selectable: 12/24V, AC/DC operation & Fail Safe/Fail Secure operation
- 3/4" latch projection
- Latches operate independently of each other
- Metal mounting jig included for easy installation
- Patented design
- Heavy duty stainless steel construction
- Horizontal adjustment, spacer plate available
- Removable latch monitoring switch included
- Non-handed, left or right
- 5 year warranty
Specifications
| Voltage: | 12/24V AC/DC |
| Current Draw: | 560mA @12V DC 280mA @24V DC |
| Static Strength: | 1,500 Lbs. (UL Verified) |
| Dynamic Strength: | 70 Ft-Lbs. |
| Endurance: | 1,000,000 cycles (Factory Tested) 250,000 cycles (UL Verified) |
| Fire Rating: | UL10C/CAN4-S104 3hrs. (Fail Secure Mode Only) |
| Mode: | Selectable - Fail Safe; Fail Secure |
| Operation: | AC - Buzz DC- Silent |
| Duty: | Continuous |
| Latch Monitor: | SPDT, 100mA @24V DC, Resistive |
| Dimensions: | 9-1/8"L x 1-7/8"W x 3/4"D (231.6mm x 48mm x 19.8mm) |
