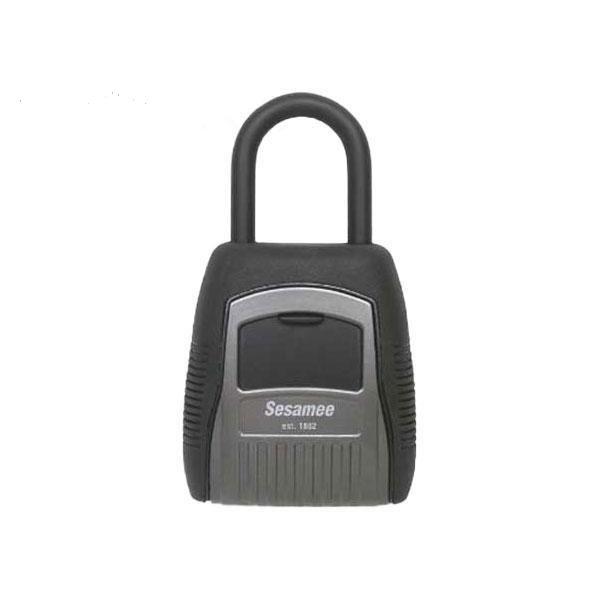

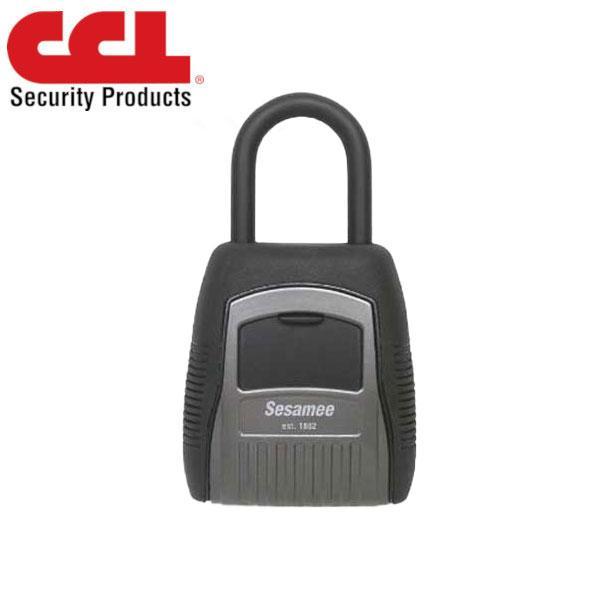

960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)
960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)
960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)
960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)
960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)

960-Series Dial Combination Security Lock - Knob Mount (SESAMEE 96009)

$19.90 $24.95
Available: Out of Stock
Wishlist
  • Product SKU: CCL-96009
  • The CCL-96009 Features:

    • Holds over 5 door or car keys
    • Portable, over the door knob mount for convenience
    • Set your own 4-digit combination for keyless convenience
    • 3-1/4" (83mm) wide durable metal construction
    • Shutter door protects combination dials from weather, dirt and grime
    • Molded body and vinyl coated shackle prevent scratching
    • A product of Taiwan; designed in Wheeling, Illinois
    $19.90

Instructions

Opening the key storage compartment door:

1. Open shutter door to reveal the dials and the release button.

2. Rotate dials to the current combination (Otherwise factory default 0-0-0-0)

3. Press down on the release button to open the door. Setting new combination: 1. Open the compartment door. (see Instructions above)

2. Push the reset lever left and toward you. The lever remains in this position.

3. Rotate the dials to your desired combination.

4. Push the reset lever up and right, back to its original position.

5. Close the key storage compartment door.

6. Scramble the combination dials to lock the door and conceal your combination.

7. Close the shutter door. Opening your shackle:

1. Open the compartment door (see instructions above)

2. Push the shackle release lever in direction of arrow (left)

3. Pull the shackle up and out of the lock.

4. Place shackle around door knob or other object.

5. Close shackle to lock.

6. Close the compartment door.

7. Scramble the combination dials to lock the door and conceal your combination.

8. Close the shutter door. Reminder:

1. The release button will open the lock until you scramble the dials.

2. Keep the shutter door closed to increase weather resistance and to conceal the dials from view.

3. Be sure to record your combination and store in safe location.

The CCL-96009 Features:

  • Holds over 5 door or car keys
  • Portable, over the door knob mount for convenience
  • Set your own 4-digit combination for keyless convenience
  • 3-1/4" (83mm) wide durable metal construction
  • Shutter door protects combination dials from weather, dirt and grime
  • Molded body and vinyl coated shackle prevent scratching
  • A product of Taiwan; designed in Wheeling, Illinois

Instructions

Opening the key storage compartment door:

1. Open shutter door to reveal the dials and the release button.

2. Rotate dials to the current combination (Otherwise factory default 0-0-0-0)

3. Press down on the release button to open the door. Setting new combination: 1. Open the compartment door. (see Instructions above)

2. Push the reset lever left and toward you. The lever remains in this position.

3. Rotate the dials to your desired combination.

4. Push the reset lever up and right, back to its original position.

5. Close the key storage compartment door.

6. Scramble the combination dials to lock the door and conceal your combination.

7. Close the shutter door. Opening your shackle:

1. Open the compartment door (see instructions above)

2. Push the shackle release lever in direction of arrow (left)

3. Pull the shackle up and out of the lock.

4. Place shackle around door knob or other object.

5. Close shackle to lock.

6. Close the compartment door.

7. Scramble the combination dials to lock the door and conceal your combination.

8. Close the shutter door. Reminder:

1. The release button will open the lock until you scramble the dials.

2. Keep the shutter door closed to increase weather resistance and to conceal the dials from view.

3. Be sure to record your combination and store in safe location.
