*Discontinued* CCL - C-510-L- Die Cast Tubular Cam Lock - 1-1/8" - US26D - KD
Out of Stock
SKU:
CCL-51030-delete
NSID:
17083
- $21.77
-
$26.12 - $21.77
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CCL-51030
This is the C-510-L - Die Cast Tubular Cam Lock - 1-1/8" - US26D - KD
Features & Benefits
This is the C-510-L - Die Cast Tubular Cam Lock - 1-1/8" - US26D - KD
Features & Benefits
- Length: 29/32"
- Finish: US26D - Satin Chrome
- Keying: KD
- Material: Zinc die cast housing, brass plug & spindle
- Operation: Push key and turn to desired position for locking and unlocking. Key removeable at various locations depending on mounting configurations.
- Specifications: Tubular cam lock available with removeable style cam only .Engineered for use in metal or fiberglass products.
- Mechanism: 7 Pin tumbler mechanism utilizing a tubular key which offers over 750,000 combinations.
- $21.77
-
$26.12 - $21.77
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x

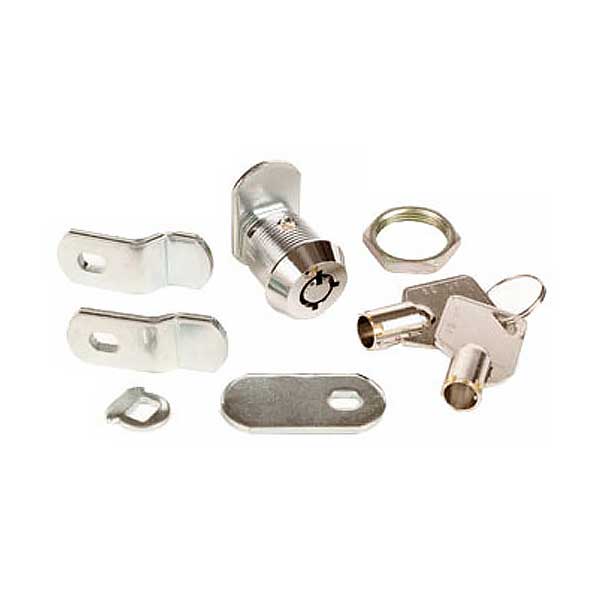

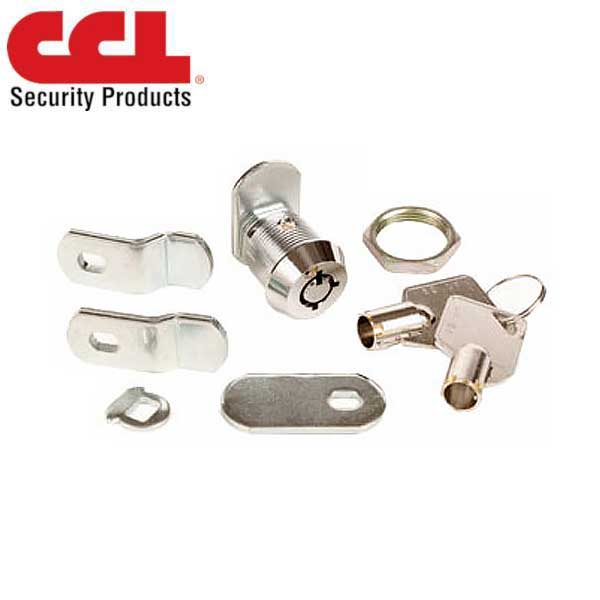

Package Includes:
- (1) (7 Pin) cylinder (w / key pulls at 12, 3, and 9 positions)
- (2) Keys (KD)
- (1) Straight cam 1-1/8"
- (1) Straight cam 7/8"
- (1) Offset cam 1-1/8" (1/8" offset)
- (1) Offset cam 1-1/8" (1/4" offset)
- (1) 90 Degree stop cam
- (1) 180 Degree stop cam
- (1) cam securing hex nut
- (1) cam securing lock
