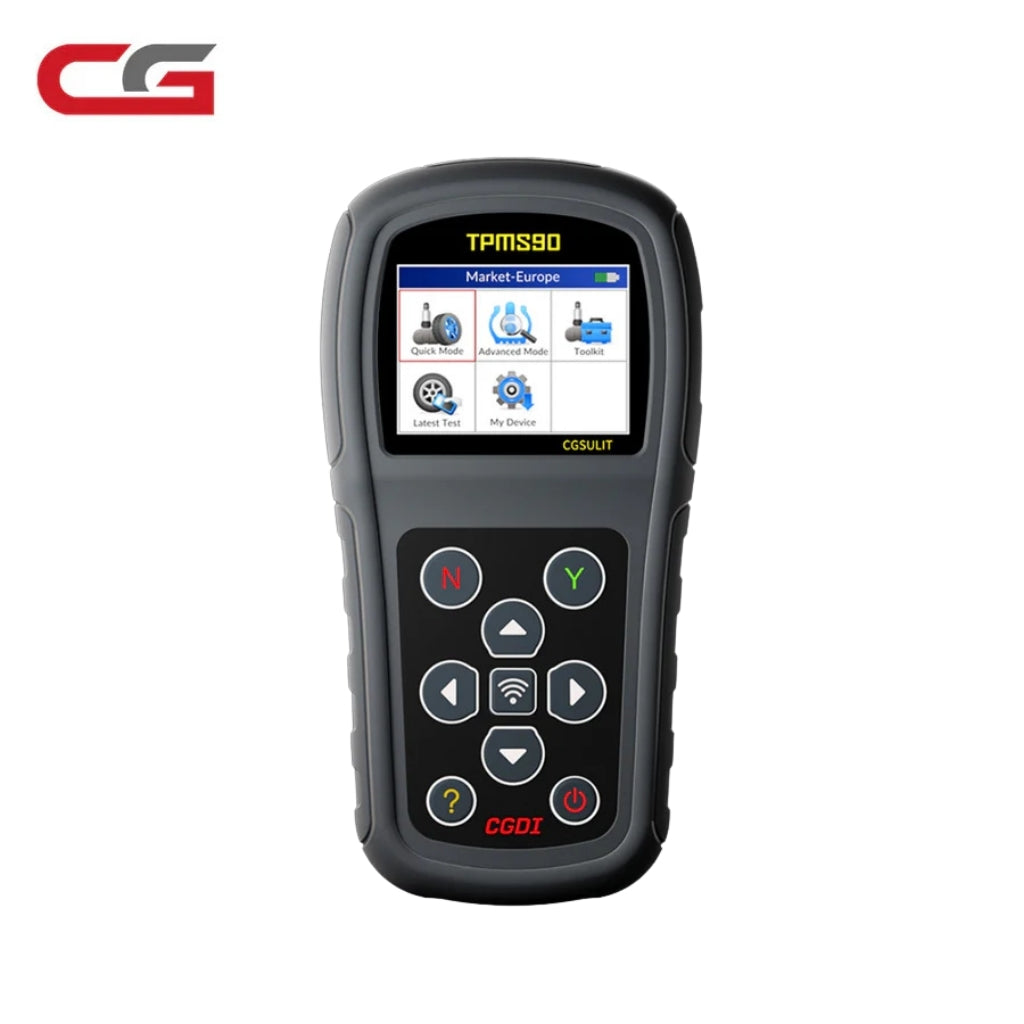

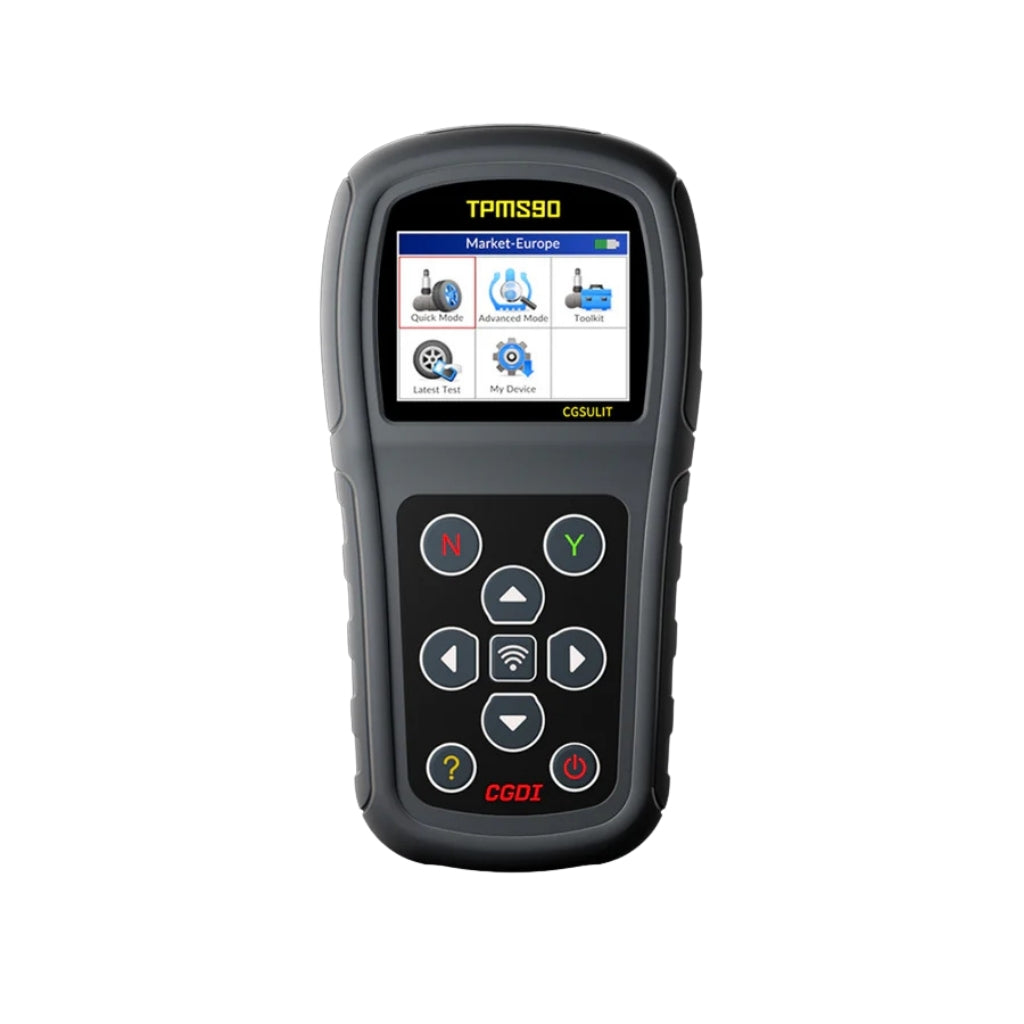

The CGDI TPMS90 is an advanced, all-in-one TPMS sensor programmer and diagnostic tool built for modern tire and vehicle service workshops. It supports the latest CAN FD communication protocols and offers seamless over-the-air software updates via Wi-Fi or USB, ensuring you always have access to the the newest sensor definitions and vehicle compatibility.
With the TPMS90, you can activate, read, clone, program, and relearn TPMS sensors including the universal TS01 sensor (dual frequency 315/433 MHz) across a wide range of makes and models. It features four flexible programming modes, supports simultaneous multi-sensor programming, reads OE sensor parameters (ID, temperature, battery status, pressure), and includes onboard TPMS diagnostics and relearn guides. Designed for efficiency and accuracy, this tool is ideal for tire shops, service centers, and locksmiths who demand top-tier TPMS service capability.
Features:
- Future-ready: With CAN FD support, it can handle next-generation TPMS systems.
- Always current: Lifetime free software updates via Wi-Fi and USB.
- High capacity: Up to 16 sensors can be programmed simultaneously.
- Versatile programming modes: Copy by OBD, Copy by Activation, Manual ID input, and Auto-create (1–16 sensors).
- Comprehensive TPMS support: Read & clear DTCs, view live sensor data, and guide through relearn procedures.
- Dual-frequency compatibility: Covers 315 MHz + 433 MHz in one sensor model, allowing broad vehicle coverage.

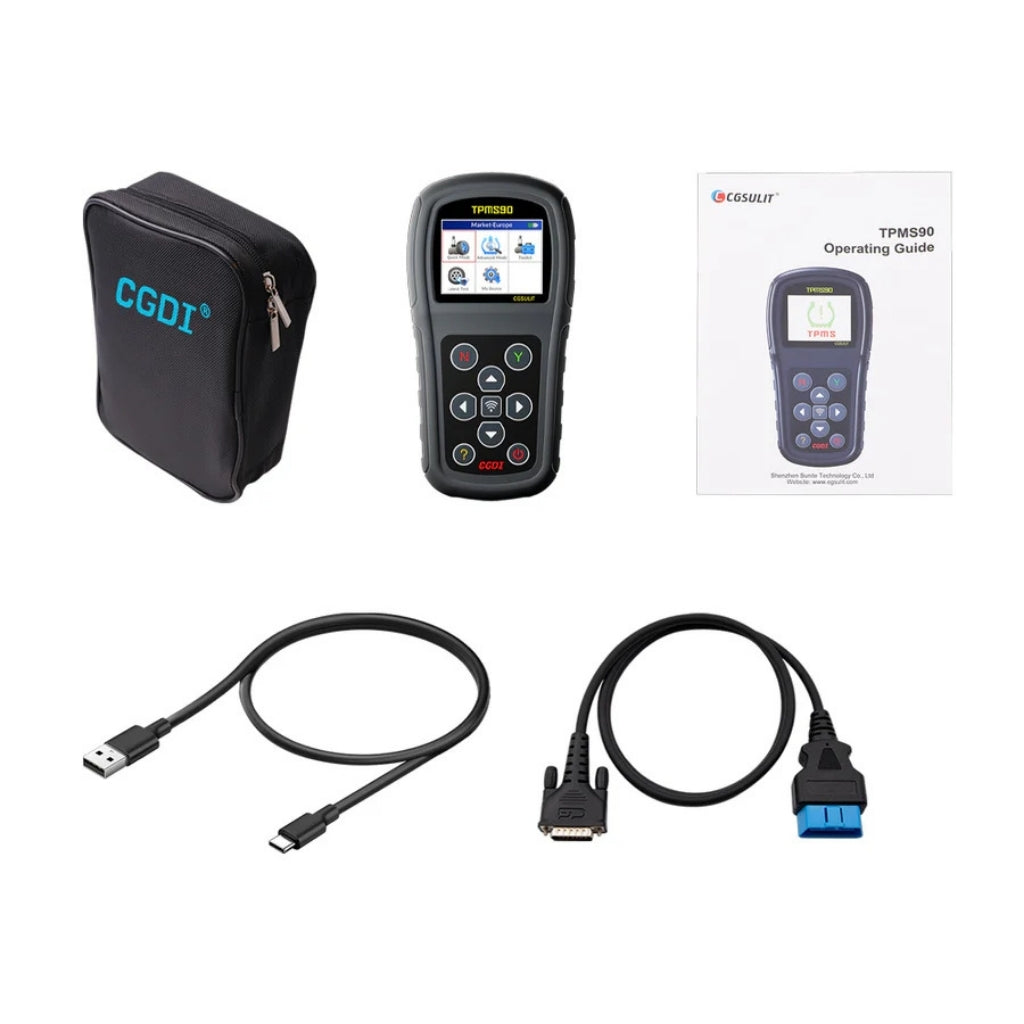

What's Included:
- TPMS90 main unit
- OBD cable
- USB / Type-C data & charging cable
- User manual & warranty card
- Carrying case / blow-molding shell & outer packaging
| Parameter | Specification |
|---|---|
| Display | 2.8″ TFT color screen |
| Power Supply / Battery | 3.7 V Li-polymer rechargeable battery |
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Dimensions | 165 × 84 × 220 mm (typical listing) |
| Weight | 0.82 kg (approx.) |
| Update / Connectivity | Wi-Fi & USB (lifetime free updates) |
| Supported Protocols | OBDII, CAN, CAN FD (latest protocol support) |
| Sensor Frequency Support | 315 MHz & 433 MHz (dual-frequency universal sensor support) |
| Programming Modes | • Copy by OBD • Copy by Activation • Manual ID Input • Auto-create 1–16 sensor IDs |
| Simultaneous Programming | Up to 16 sensors at once |
| OE Sensor Data Reading | Sensor ID, temperature, battery status, tire pressure value |
| TPMS Diagnostic & Relearn Support | Read/clear TPMS DTCs; onboard relearn procedure guide; OBD relearn, drive-to-learn, stationary learn |
| Key FOB Checking | Supported (verify remote key frequency and functions) |
| Packaging & Accessories | Main unit, OBD cable, USB/Type-C cable, user manual & warranty card, carrying case (typical) |
