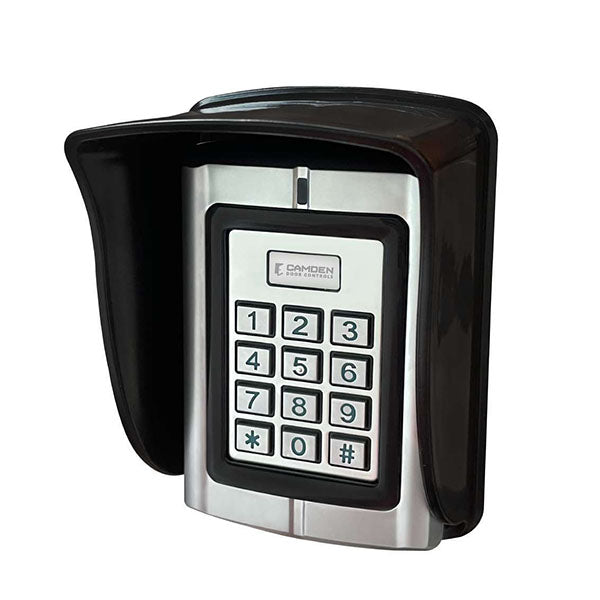

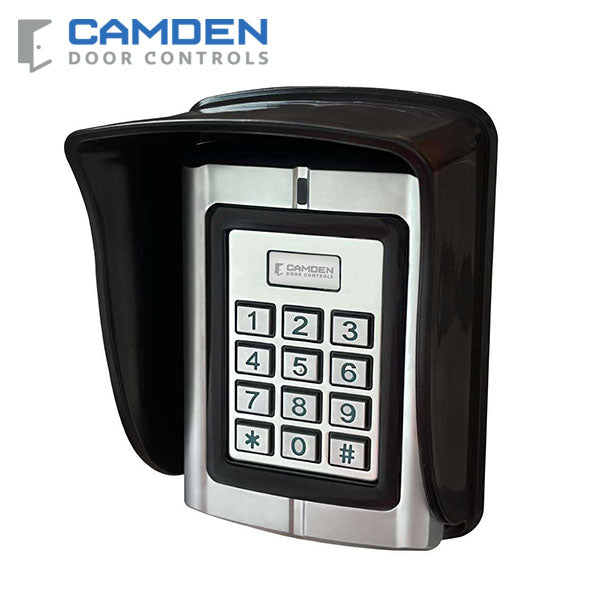

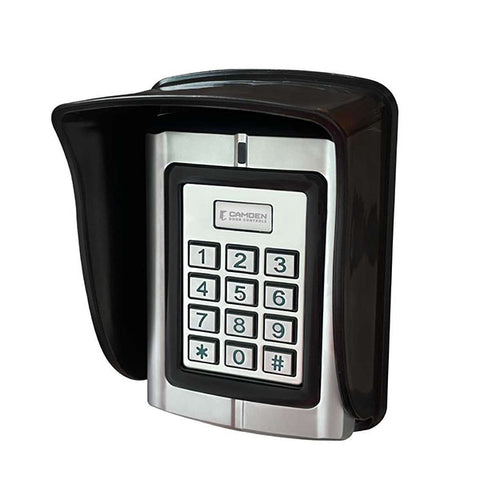

Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%
Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%
Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%
Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%
Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%

Camden CM-550SK - Surface Mount Keypad - 1000 Users - Vandal & Weather Resistant IP68 - 12 VDC +/- 10%

$121.99 $174.00
Availability: Available
  • Product SKU: CMD-CM-550SK
  • NSID: 1332
  • CMD-CM-550SK

    Camden surface mount keypads are rugged, weather and vandal resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, ‘Request to Exit’ inputs, tamper alarm and support up to 2,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors or other electrical device.

    • Up to 2,000 users
    • Backlit vandal resistant keypad
    • All metal construction for wall or jamb mounting
    • Weather resistant IP rated
    • Adjustable door delay time
    • Adjustable door open time
    • Tamper alarm output
    • Request to Exit device input
    • Blue backlighting for night time use
    • 3 year warranty

    $121.99
    Please Note: This product has a lead time of 3-4 weeks
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Voltage: CM-550SK: 12 VDC +/- 10%
Protection: CM-550SK: IP65
Current Draw: CM-550SK: 50 mA
Contact Type: CM-550SK: (2) Form 'C'
Contact Rating: CM-550SK: 2 A @ 30 VDC
Wiegand Interface: CM-550SK: NA
Time Delay: 0 – 99 seconds
Alarm Time: 0 – 3 minutes
Temp Range: CM-550SK: -49°F/+113°F
(-45°C/+55°C)
Dimensions: CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D
(121.67mm x 79.5mm x 26.42mm)

Download:

Spec Sheets

  • CM-550SK_Spec Sheet_R4 pdf 0.46 DOWNLOAD

Manuals

  • CM-550SK-V2_Manual_R4 pdf 0.58 DOWNLOAD
  • CM-550SK-V2_Manual_French_R4 pdf 0.60 DOWNLOAD
