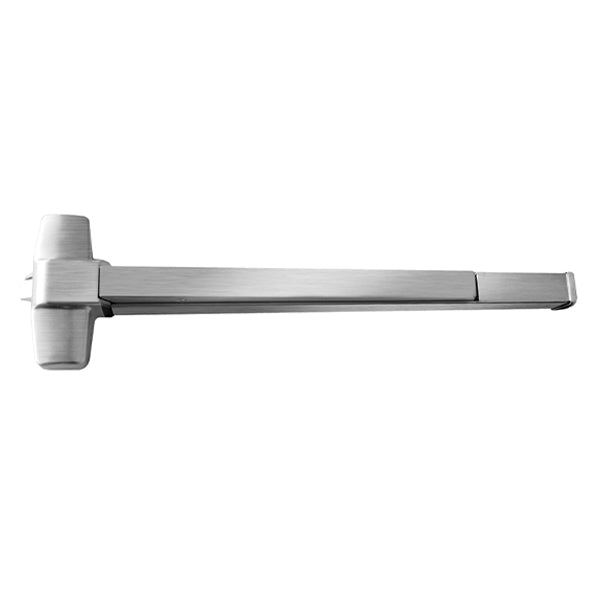

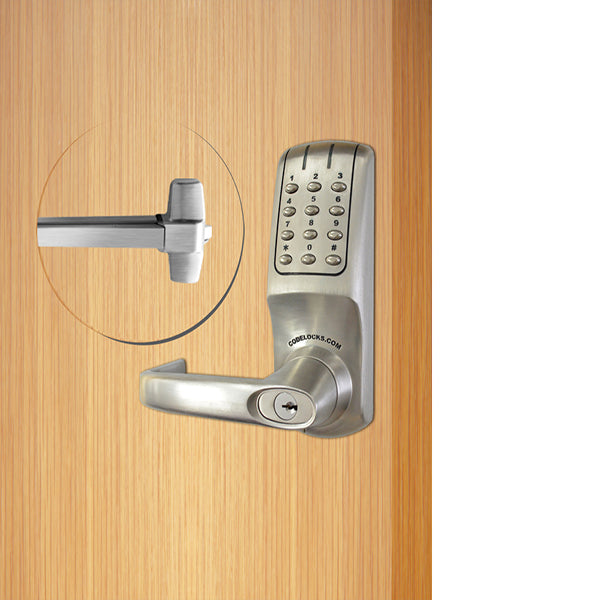

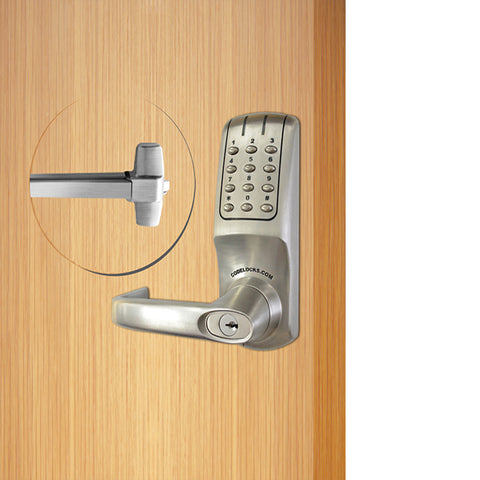

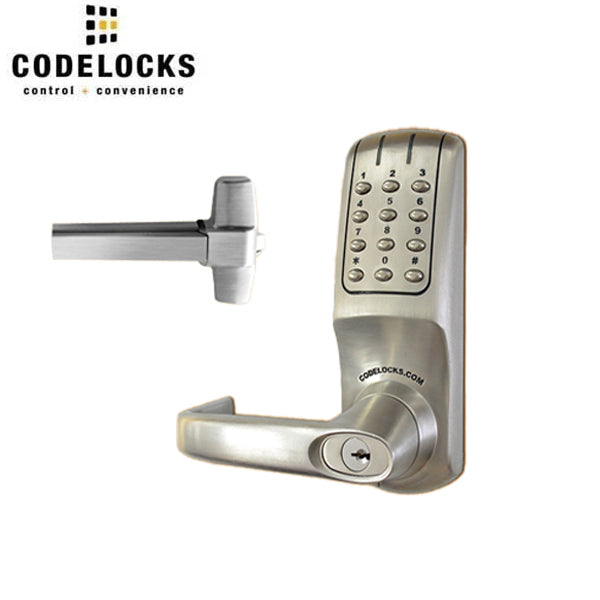

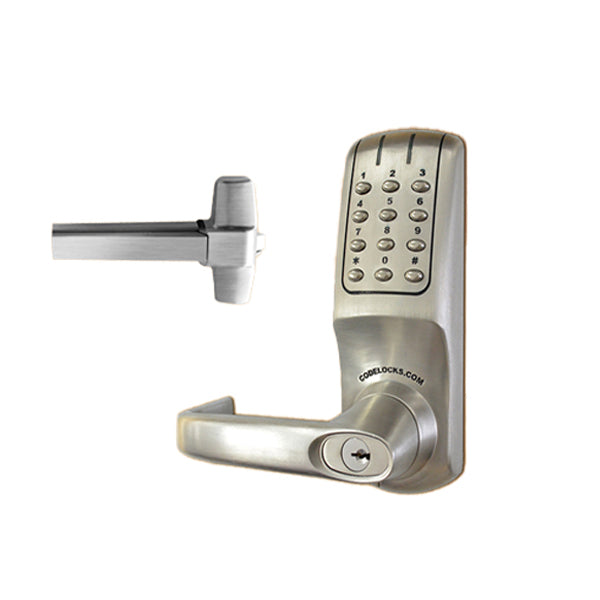

This is a kit which includes a CL5000 Electronic Door Exit Trim and a CL36R Panic Rim Exit Device.
The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code
Features:
- Electronic panic access kit
- Fit with new or existing panic equipment
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Tested to Grade 2 - ANSI - A156.2
- UL/ULC Fire Rating 3 hours
- Multiple mounting holes for easy retrofit of major brands panic devices
- Multiple opportunities for new hole locations for strong anchoring to door
- CL5000 Exit Trim tested to Grade 2.
- CL36R Panic Rim Exit Device tested to Grade 1.
Specifications:
| Brand |
Code Locks |
| Buttons |
3 x 4 |
| Panic Rim Device Length | 36" |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Code Change Method |
Tumblers (Off door) |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Operations | Up to 200,000 per set of 4 x AA batteries |
| Power | 4 x AA batteries |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Fire Rated | UL/ULC Fire Rating 3 hours |
| Manufacturer Warranty | Limited Lifetime Warranty |
