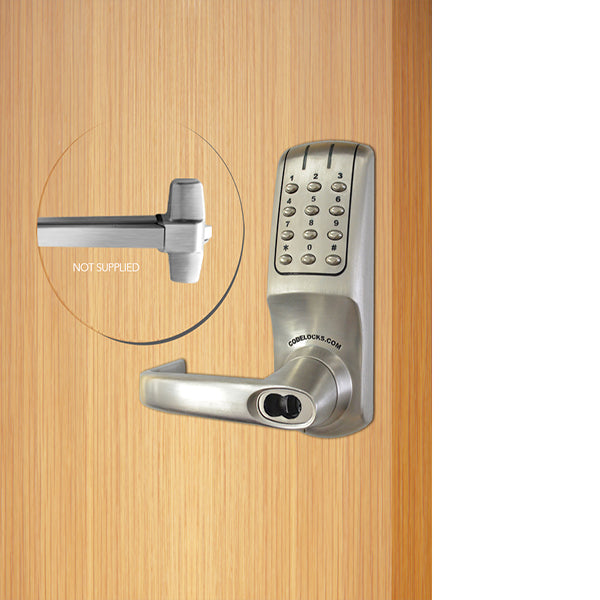

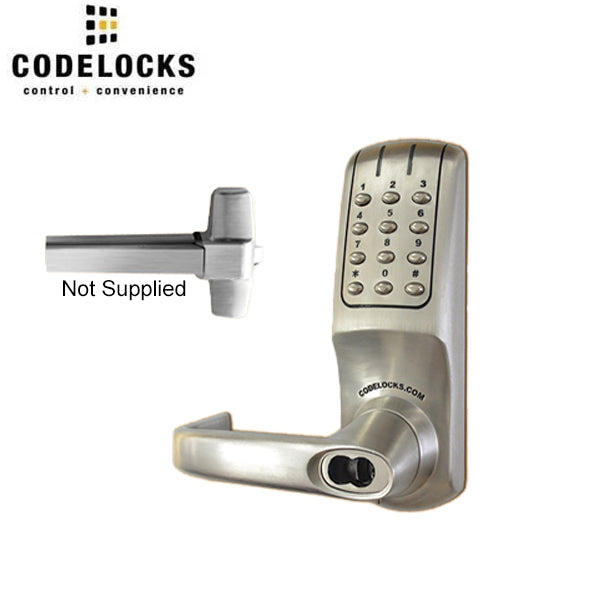

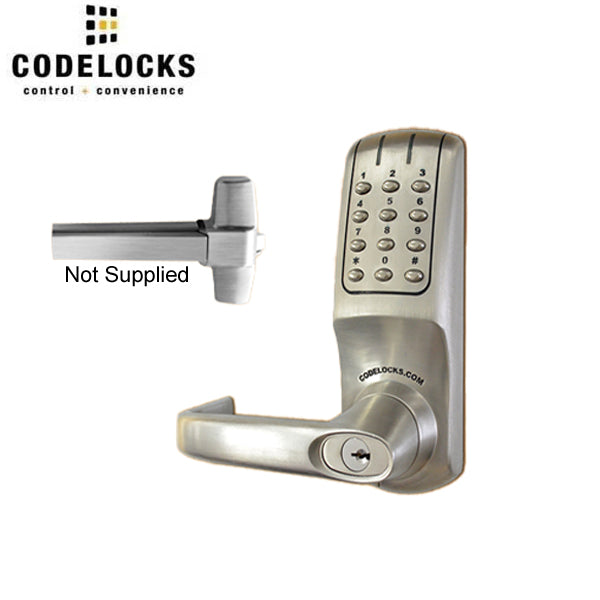

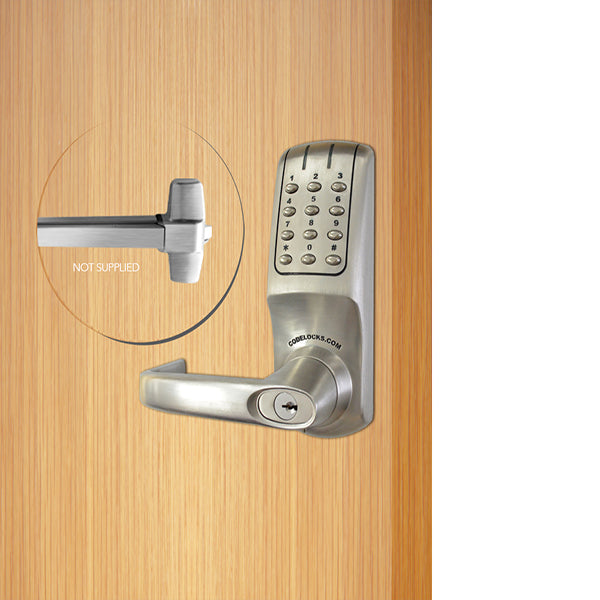

CodeLocks - CL5000 - Electronic Door Exit Trim - Heavy Duty - 2 3/4" Backset - Panic Access Kit - Optional SFIC Prep - Grade 2
Available to Order
SKU:
CDL-CL5000PK-BS
NSID:
43741
43742
- $379.75
-
$525.30 - $379.75
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-CL5000
The outside lever turns freely without operating the latchbolt. When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code. Code Free Mode can also be programmed at the keypad using the Master Code
Panic Rim Exit Device NOT included.*
Features:
- Electronic panic access kit
- Fit with new or existing panic equipment
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
- Tested to Grade 2 - ANSI - A156.2
- UL/ULC Fire Rating 3 hours
Specifications:
| Brand |
Code Locks |
| Buttons |
3 x 4 |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Code Change Method |
Tumblers (Off door) |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Operations | Up to 200,000 per set of 4 x AA batteries |
| Power | 4 x AA batteries |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Fire Rated | UL/ULC Fire Rating 3 hours |
| Manufacturer Warranty | Limited Lifetime Warranty |
