*Discontinued* CodeLocks - P1100-KPD - Electronic KitLock - Keypad Locker Lock Front Plate Only - Optional Finish
- $73.21
-
$87.85 - $73.21
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
CDL-P1100-FP-KPD

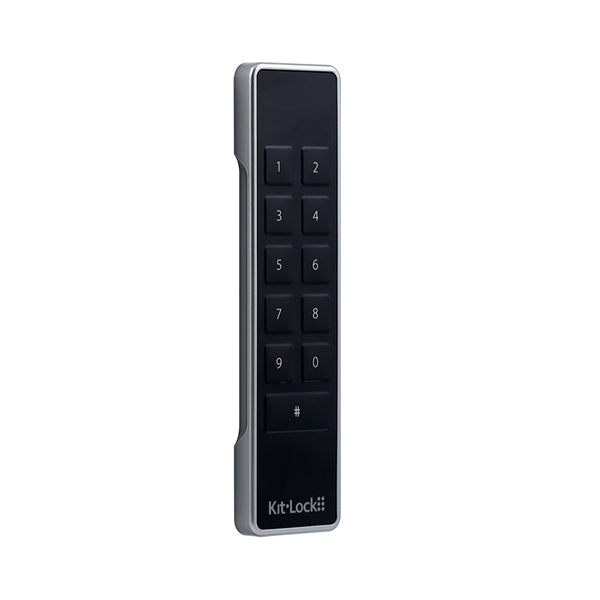

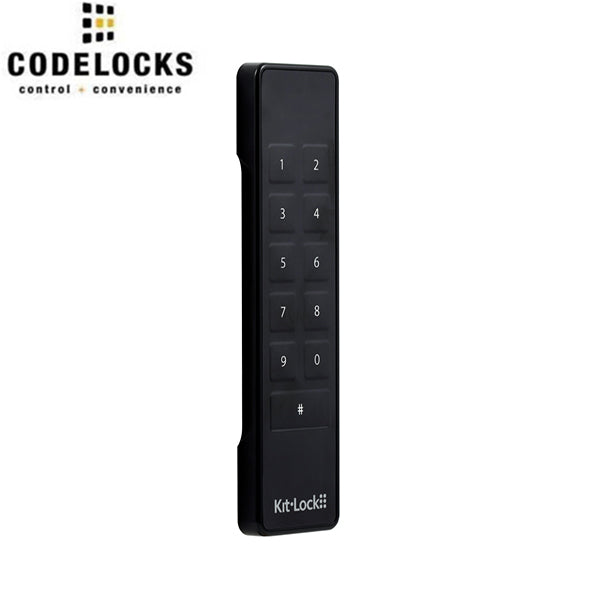

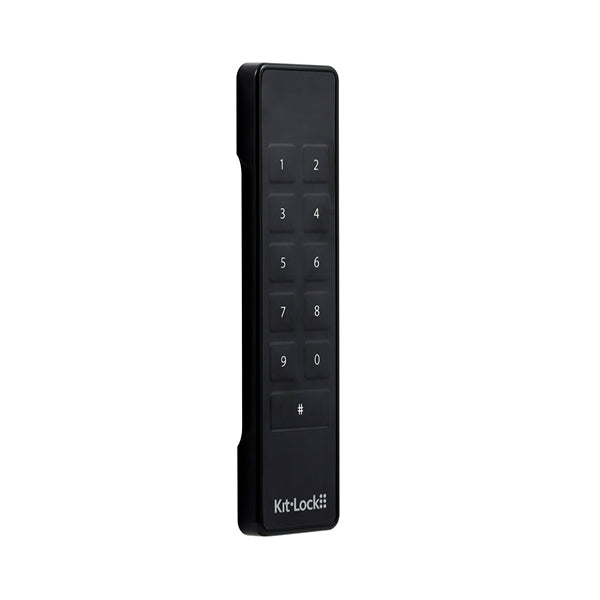

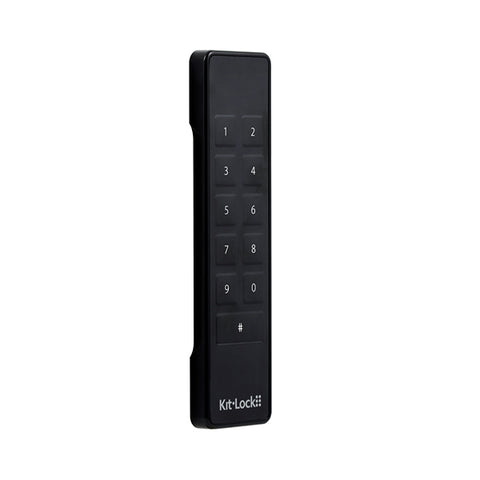

KL1100 KeyPad Front Plate
This is the front plate only. The powered latch of the KL1100 is not included.
About KL1100 KeyPad
This stylish standalone lock shares the same slimline design and powered latch as the KL1100 RFID but maintains the traditional code access keypad and features found in classic KitLock products. The product enhancements make this a front runner for those looking for traditional standalone digital locks with additional User Codes and auto-unlocking capabilities.
Codelocks KitLock products are designed for easy install and the KL1100 KeyPad is no different, sharing the same fixing holes as the KitLock KL1000 Classic, retrofit is an option for many applications. With up to 100,000 operations, 20 User Codes, Auto-Unlock at a set time or predefined period, this lock is an easy first choice for anybody looking for an upgrade to their lockers.
Available in Metallic Silver or Gloss Black finish, the lock is easy to wipe clean with anti-bacterial wipes and sprays.
Suitable for a wide range of applications where the same code will be repeatedly used or where a single one-time user code can be entered and then erased ready for the next user, for example, hot desking in an office or a locker in a gym.
Features:
- 8 digit Master Code and Sub Master Code
- 20 User Codes
- 6 digit Technician Code
- Auto-Unlock at a set time
- Maximum locked period
- Battery override
- On the door battery change
- Supports Private and Public Functions
- IP55 when fitted with gasket
- Anti-bacterial wipe clean
- $73.21
-
$87.85 - $73.21
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Brand |
KitLock by Codelocks |
| Battery Override | Connect to 5V micro USB power source for temporary power |
| Buttons | 2 x 5 + Programming |
| Code Change Method | Keypad (On Door) |
| Codes | Up to 20 user codes |
| Door Thickness |
Ready to fit doors up to 1" (25mm) |
| Finish |
Gloss Black, Metallic Silver |
| Functions |
Private, Public |
| Handed | Non Handed - Locks will fit doors hung on the left or right |
| Keypad | 11 individual buttons |
| Lock Dimensions | 138mm (H) x 38mm (W) x 12.5mm (D) |
| Low Battery | Red LED will flash 3 times before unlocking |
| Latch Type |
Powered Latch (Not Included) |
| Memory |
Non-volatile memory - programming will be retained |
| Operations |
Up to 100,000 operations per 4 x AA batteries |
| Power | 4 x 1.5 volt AA batteries (supplied) |
| Orientation |
Vertical |
| Suitable For |
Internal |
| User Levels |
Master, Sub Master, Technician, Standard User |
| User Types |
Code |
