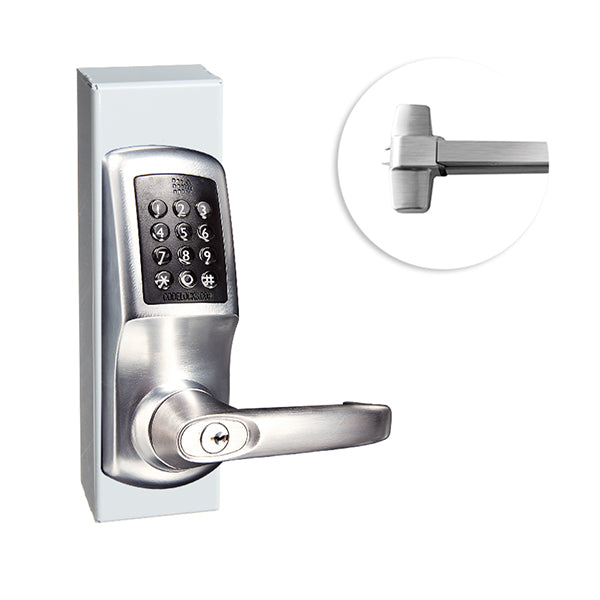

CodeLocks - CL5510 Gate Box Kit - Electronic Door Exit Trim with Panic Rim Exit Device - Heavy Duty - Panic Access Kit - Brushed Steel - Grade 2
- Product SKU: CDL-90836-36
- NSID:
-
CDL-90836-36 / CDL-90836-48
Front plate only. Install with new or existing panic equipment. The follower on the panic equipment must return to square to align with follower on the lock.
Managing and operating locks has never been easier. The CL5510 Smart Lock offers advanced programming and access methods, as well as simple retrofit opportunities for easy upgrades from the CL5000 range.
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential
Features:
- Manage and operate locks via smartphone
- Keyless entry - no lost keys
- Panic Rim Exit Device Included
- ANSI Grade 2
- 12 button back-lit keypad
- Lever handle lock for doors hung on the left or right
- NetCode® generation technology
- Set up to 10 Code Free access periods
- Suspend and restore any or all clients
- Keypad indicates locked / unlocked status
- Tamper time out and low battery warning
- Personal wireless connectivity for management
- Simple upgrade from electronic range using same fixings
- Auxiliary connections enabling four modes of operation

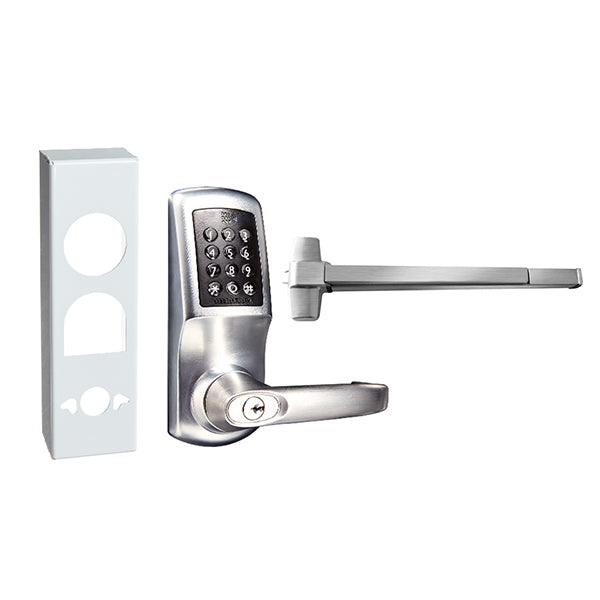

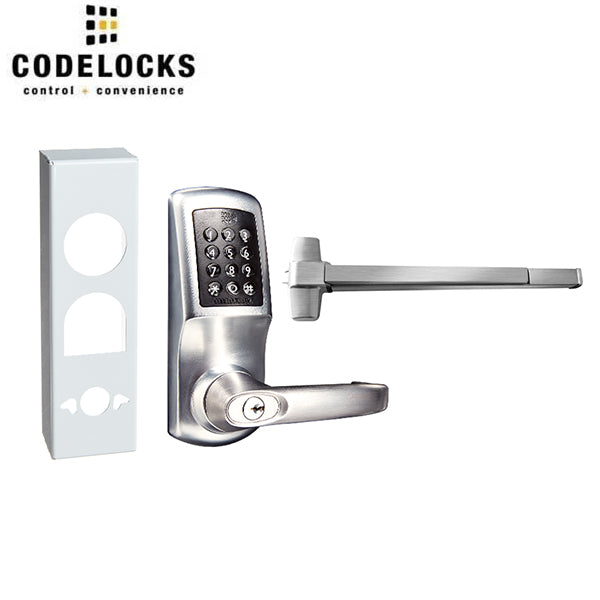

Gate Panic Hardware Kit Components
- CL5510 Smart Panic Access Kit
- Codelocks installation, operating/programming instructions and fastening bolts
- ANSI Grade 1 CL.ED Series Exit Device, available in two sizes, 36” and 48”
- Adjustable Strike bracket with u-bolt fastener
- Anti-Theft manipulation device
- 24” tall latch protector
- 24”, 2-piece panic shield adjustable to suit 30” - 54” wide gates
Specifications:
| Brand |
Code Locks |
| Gate Box Dimensions | 10.25” (H) x 5.5” (W) x 1.75” (D) |
| Gate box Materials | 14-gauge steel |
| Rim Device Size | Optional 36" or 48" |
| Buttons |
3 x 4 |
| Door Thickness | 1 3⁄8" - 2 3⁄8" (35mm - 60mm) |
| Clients – Smart Cards | Up to 150 Client Smart Cards |
| Clients – User Codes | Up to 100 Client User Codes |
| Code Change Method |
Keypad (On Door) |
| Function | NetCode |
| Material | Zinc Alloy |
| Finish Color | Brushed Steel |
| Handed |
Non-handed |
| Keypad |
12 Stainless Steel Buttons |
| Memory |
Stores 350 different Clients |
| Netcode | Stores 350 different Clients |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Operations | 10,000 operations from 4 x AA batteries |
| Power | 4 x AA batteries |
| Spindle | Two part 5⁄16" (8mm) spring loaded spindle |
| User Levels | Master, Sub Master, Standard User |
| User Types | Code, Card, Smartphone, NetCode® |
| Lock Material | Zinc Alloy |
| Orientation | Vertical |
| Fire Rated | UL/ULC Fire Rating 3 hours |
| Manufacturer Warranty | Limited Lifetime Warranty |
