Command Access - Electrified Latch Retraction Kit - For Townsteel ED1000, LSDA9200 & USCAN 1000 Series Exit Devices - 18 Gauge Wire - 24VDC +/- 10%
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $349.38
-
$419.25 - $349.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

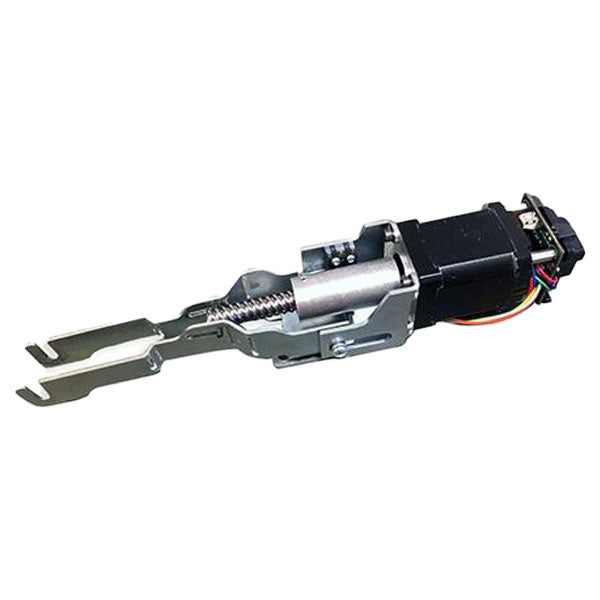

The new MLRK1-TS1 is a practical and cost-effective way to convert a mechanical Townsteel ED1000, LSDA PD9200 & USCAN series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and for peace of mind is backed by CAT's 3-year no hassle warranty. The new unit easily hooks onto the back activating bracket and is secured with (2) screws, in a matter of seconds. The only hole you'll need to drill is for the wire raceway. PTS allows for a smooth post-installation adjustment of the latch/latches. Last but not least, it features an updated MM4S module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done.
Features:
- Next Generation MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues.
- "PTS": 5 second electronic adjustment for easy post installation adjustment.
- Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position.
- Low Current Draw - Field switchable to "High Torque" mode.
- Up to 300' wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.
- Push-n-Go Pigtail + 6' cable with Quick Connect for MM4S module to easily connect to power supply lead.
- 3-year "no hassle" warranty
| Voltage Range | 24VDC +/- 10% |
| System Protection | Unit Shutdown when Voltage exceeds 28VDC |
| Standard | Average Current Peak: 900mA, Average Current Hold 200mA |
| High Torque | Average Current Peak: 2A, Average Current Hold: 250mA |
| PTS Adjustment | approx. 1/4" |
| Wire Run | 300' with 18ga wire |
| Weight | 2 lbs |
