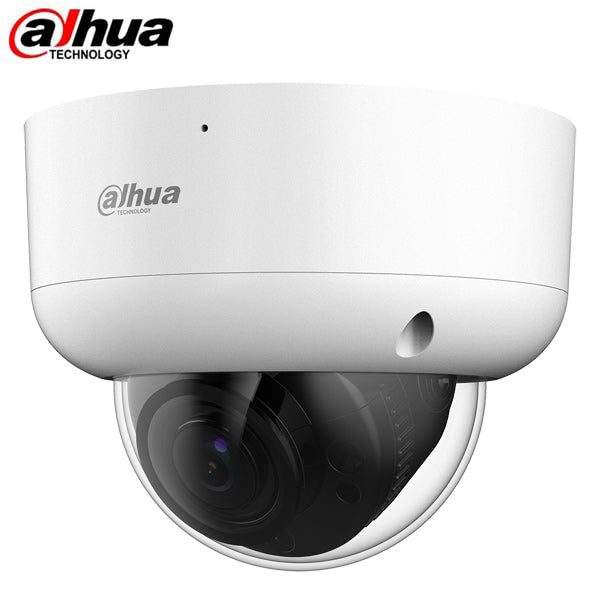

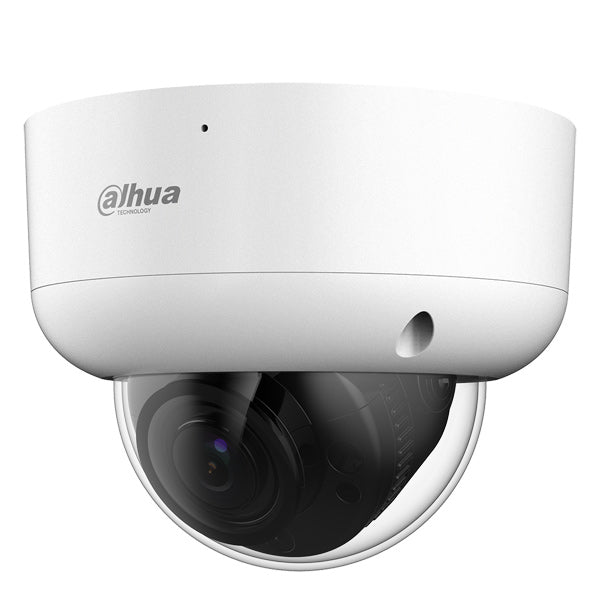

*Discontinued* Dahua / 2MP / Starlight Camera / Motorized Varifocal / 2.7-13.5mm Lens / WDR / IP67 / IK10 / DH-A22DMAZ
- $92.39
-
- $92.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 2 MP Starlight Dome camera leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a motorized zoom lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Starlight Technology and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
- 1/2.8-in. 2MP Progressive-scan CMOS Sensor • 2MP (1920 x 1080) at 30 fps
- Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Lens
- Starlight+ Technology for Low-light Applications
- True Wide Dynamic Range (130 dB) and 3D Noise Reduction
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- HD or SD Output, Switchable • Built-in Microphone
- Maximum IR Length 60 m (196.85 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $92.39
-
- $92.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.6 B/W: 0.005 lux at F1.6 |
| Lens | |
| Focal Length | 2.7 mm to 13.5 mm |
| Max. Aperture | F1.5 |
| Angle of View |
Horizontal: 108° to 30° |
| Optical Zoom | 4x |
| Focus Control | Auto, Semi-automatic, Manual |
| Iris Type | Fixed Iris |
| Close Focus Distance | 800.0 mm (31.50 in.) |
| DORI Distance - 2.7mm | |
| Detect (8 ppf) | 44.10 m (144.70 ft) |
| Observe (19 ppf) | 17.60 m (57.70 ft) |
| Recognize (38 ppf) | 8.80 m (28.90 ft) |
| Identify (76 ppf) | 4.40 m (14.40 ft) |
| Video | |
| Resolution | 1080p (1920 x 1080), 960H (960 x 480) |
| Frame Rate | RG-59/U Coax 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable |
| Transmission Distance | RG-59/U Coax: 720p: 500 m (1640.42 ft); 1080p: 400 m (1312.34 ft) RG-6/U Coax720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) CAT 6 UTP (balun required) 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-Language |
| Backlight Compensation | BLC, HLC, True WDR |
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D NR |
| Advanced Features | Defog |
| Digital Zoom | 16x |
| Flip | 0° / 180° |
| Certifications | |
| CE | EN55032 EN55024 EN50130-4 |
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 |
| Interface | |
| Video | One (1) Port, BNC HDCVI, TVI, AHD, CVBS selectable via DIP Switch |
| Audio | Input: One (1) Built-in Microphone |
| Electrical | |
| Power Supply | 24 VAC ±25% or 12 VDC ±10% |
| Power Consumption | Maximum 9.9 W (12 VDC, IR On) |
| Environmental | |
| Operating Conditions | Maximum 9.9 W (12 VDC, IR On) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | ø126.0 mm x 100.0 mm (ø4.96 in. x 3.94 in.) |
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 0.83 kg (1.83 lb) |
Downloads
Functions:
Multi-Format Output Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of –30° C to +60° C (–22° F to 140° F), the camera is designed for extreme temperature environments. The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
