*Discontinued* Dahua / ePoE Ethernet Switch / 8-Port / 800m PoE / 48-57 VDC / 120W / LR2110-8ET-120
Out of Stock
SKU:
DH-LR2110-8ET-120
NSID:
28318
- $286.18
-
- $286.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-LR2110-8ET-120

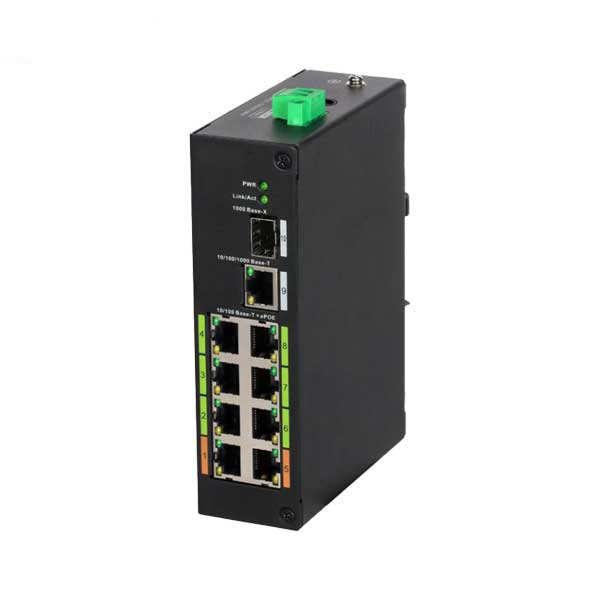

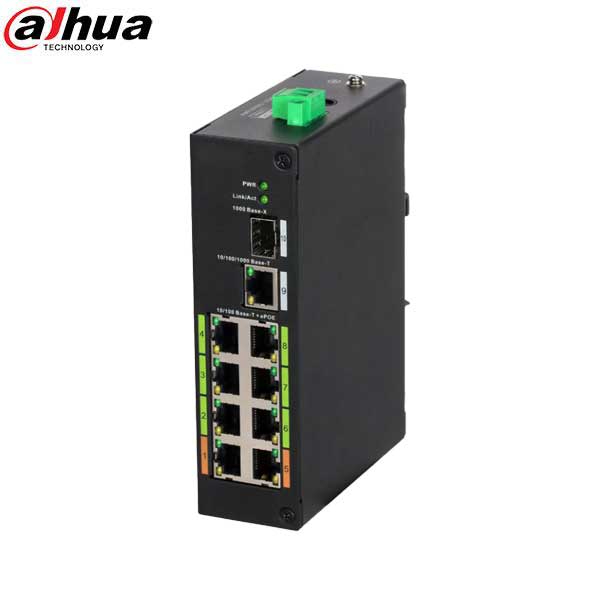

The DH-LR2110-8ET-120 is a 8-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE and the PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.
Features
- Layer 2 Network ePoE Switch
- Enhanced Power and Data Transmission Distances with ePoE
- Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
- MAC Auto Study and Aging, 8K MAC Address List Capacity
- Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
- Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the
- IEEE802.3X Standards
- Indicator LEDs Display the Transmission Mode (IEEE, E100, E10)
- Designed for Extreme Temperature Environments
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $286.18
-
- $286.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Ethernet Ports | |
| Uplink Ports | One (1) 1000 Base-X Port One (1) 10/100/1000 Base-T Port |
| Downstream Ports | Eight (8) 10/100 Base-T Ports (PoE Power Supply) |
| PoE Power Consumption | Hi-PoE: Ports 1 and 5 Consumption: up to 60 W per port IEEE802.3af, IEEE802.3at: Ports 2, 3, 4, 6, 7, 8 Consumption: up to 30 W per port Enhanced PoE (ePoE): Ports 1 to 8 Total PoE Budget: ≤ 120 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 2.75 MB |
| MAC Table Size | 8K |
| Flow Control | Enable by default |
| Power Requirements | 48 VDC to 57 VDC Power Adapter |
| Dimensions | 5.91 in. x 3.94 in. x 1.65 in. |
| Certifications | UL, FCC, CE |
| Warranty | New Limited Lifetime |
