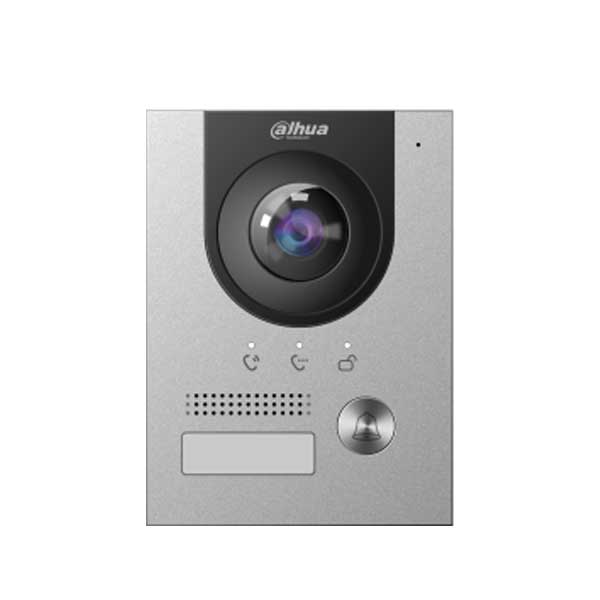

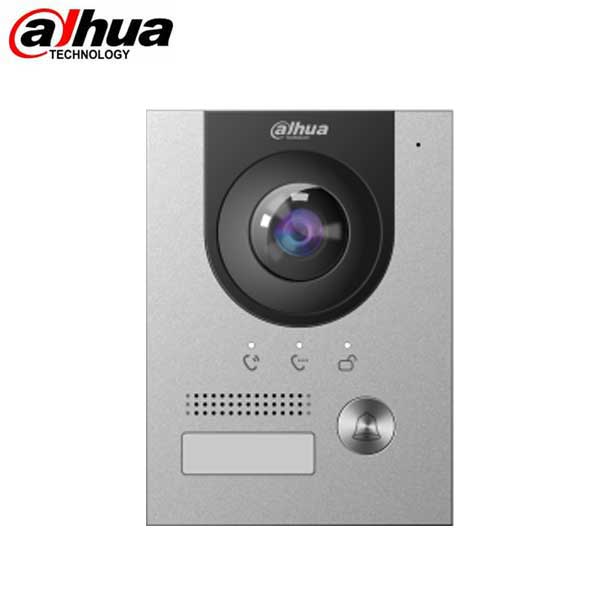

*Discontinued* Dahua / IP / 2MP / Video Doorbell / Fixed / 1.9mm Lens / Outdoor / IP65 / IK07 / Active Alarm / Built-in Microphone & Speaker / 5 Year Warranty / DH-VTO2202F-P-S2
Out of Stock
SKU:
DH-VTO2202F-P-S2
NSID:
28090
- $404.98
-
- $404.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-VTO2202F-P-S2
- Anodized aluminium front panel
- CMOS low illumination 2MP HD colorful 160° fisheye camera
- Video intercom function
- Access control function that supports two locks
- Mobile phone app, talk to the visitor or unlock the door remotely on your phone
- Compatible with 2-wire interface & RJ45 interface
- IK07 & IP65
- Support H.265
- Support surface and flush mount
- PoE
- Compatible accessories: VTM114, VTM115, VTM05R
- Five-year Warranty (for products sold through authorized Dahua Dealers)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $404.98
-
- $404.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP |
| Basic | |
| Camera |
1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
| Field of View | Horizontal: 168.6° Vertical: 87.1° Diagonal: 176.7° |
| Focal Length |
1.9 mm |
| WDR |
120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.265 |
| Video Resolution |
50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 4 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR) |
| Audio Input | 1 channel |
| Audio Output | Built-in Speaker |
| Audio Compression | G.711u |
| Audio Mode |
2-way voice communication |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 Bit |
| Status Indicator Light | 3 |
|
Port |
|
| Electric Lock | 1 |
| Alarm Output | 1 |
| Power Output | 1-ch 12 VDC 100mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | One RJ45 10M/100M network port |
|
General |
|
| Appearance color | Silver |
| Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) DC 48V 1A Standard PoE |
| Power Adapter | Optional |
| Installation |
Flush/surface mount |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% (RH, non-condensing) |
| Operating Altitude | 0 m–3000 m |
| Power Consumption | ≤ 12W |
|
Certifications |
|
| Certifications | CE; FCC; UL |
Downloads
