Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$495.99
Available: In Stock
  • Product SKU: DH-N53AF5Z
  • DH-N53AF5Z
    Item Number: XXXX

    • 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
    • Triple-stream Encoding
    • Smart H.265+ and Smart H.264+ Dual Codec
    • 5 MP (2592 x 1944) at 20 fps
    • 2.7 mm to 13.5 mm Motorized Vari-focal Lens
    • Starlight Technology for Low-light Applications
    • Analytics+ Function – Perimeter Protection
    • Smart Motion Detection for Improved Alarm Accuracy
    • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
    • Maximum IR LED Distance 60 m (196.85 ft)
    • ArcticPro Series Camera - Operational down to –40° C (–40° F)
    • IP67 Ingress Protection
    • Five-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices!

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

    Technical Specification

    Series: Lite
    Body: Bullet
    Image Sensor: 1/2.7-in. 5 MP CMOS
    Resolution: 5 MP, 2592(H) x 1944(V)
    Angle of View: Horizontal: 99° to 26°
    Vertical: 72° to 20°
    Diagonal: 133° to 33°
    Lens Type: Motorized Vari-focal
    Focal Length: 2.7 mm to 13.5 mm
    Min. Illumination: Color: 0.005 lux at F1.5
    0 lux at F1.5 (IR on)
    Day/Night: Auto (ICR), Color, B/W
    Max. IR Range: Up to 60.0 m (196.85 ft)
    WDR: 120dB
    Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
    H.264B, H.264H, MJPEG (Sub Stream only)
    Audio Compression: G.711a, G.711Mu, AAC, G.726
    Frame Rate: 5 MP (2592 x 1944) at 20 fps or
    4 MP (2688 x 1520) at 30 fps
    Multi-Streaming: 3 Streams
    IVS: Motion, Scene Change
    Analytics+: Perimeter Protection,
    Smart Motion Detection
    ONVIF: Yes
    Audio In: One (1) Channel, RCA
    Audio Out: One (1) Channel, RCA
    Memory Slot: Micro SD Slot, maximum 256 GB
    Alarm In: One (1) Channel (5 mA, 3 to 5 VDC)
    Alarm Out: One (1) Channel (300 mA, 12 VDC)
    IP Rating: 67
    IK Rating: -
    Operating Temp: –40° C to +60° C (–40° F to +140° F)
    Less than 95% RH
    Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
    < 9.8 W
    ePoE: No
    Camera
    Image Sensor 1/2.7-in. 5 MP CMOS
    Effective Pixels 2592(H) x 1944(V)
    RAM/ROM 512 MB/128 MB
    Scanning System Progressive
    Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
    Minimum Illumination Color: 0.005 lux at F1.5
    0 lux at F1.5 (IR on)
    IR Distance Up to 60.0 m (196.85 ft)
    IR On/Off Control Auto, Manual
    IR LEDs Four (4)
    Lens
    Lens Type Motorized Vari-focal
    Iris Type Fixed Aperture
    Mount Type 14
    Focal Length 2.7 mm to 13.5 mm
    Angle of View Horizontal: 99° to 26°
    Vertical: 72° to 20°
    Diagonal: 133° to 33°
    Close Focus Distance 0.80 m (2.62 ft)
    DORI Distance - Focus - Wide - Detect 64.0 m (209.97 ft)
    DORI Distance - Focus - Wide - Observe 25.60 m (83.99 ft)
    DORI Distance - Focus - Wide - Recognize 12.80 m (41.99 ft)
    DORI Distance - Focus - Wide - Identify 6.40 m (21.0 ft)
    DORI Distance - Focus - Tele - Detect 222.0 m (728.35 ft)
    DORI Distance - Focus - Tele - Observe 88.80 m (291.34 ft)
    DORI Distance - Focus - Tele - Recognize 44.40 m (145.67)
    DORI Distance - Focus - Tele - Identify 22.20 m (72.84)
    Installation Angle
    Range Pan: 0˚ to 355˚
    Tilt: 0˚ to 75˚
    Rotation: 0˚ to 355˚
    Video
    Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
    H.264H, MJPEG (Sub Stream only)
    Streaming Capability Three (3) Streams
    Resolution 5 MP (2592 x 1944), 4 MP (2688 x 1520),
    3 MP (2304 x 1296), 1080p (1920 x 1080),
    1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480),
    VGA (640 x 480), CIF (352 x 240)
    Frame Rate Main Stream: 5 MP (2592 x 1944) at 20 fps or
    4 MP (2688 x 1520) at 30 fps
    Frame Rate Sub Stream 1: D1 (704 x 480) at 30 fps
    Frame Rate Sub Stream 2: 720p (1280 x 720) at 30 fps
    Bit Rate Control CBR/VBR
    Bit Rate H.264: 3 Kbps to 8192 Kbps
    H.265: 3 Kbps to 8192 Kbps
    Day/Night Auto (ICR), Color, B/W
    BLC Mode BLC, HLC, True WDR (120 dB), SSA
    White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
    Regional Custom
    Gain Control Auto, Manual, Shutter Priority, Gain Priority
    Noise Reduction 3D DNR
    Motion Detection Off, On (4 Zones, Rectangular)
    Region of Interest Off, On (4 Zones)
    Advanced Features Smart IR
    Image Rotation 0°, 90°, 180°, 270°
    (supports 90°, 270° at 1920 x 1080 resolution)
    Mirror Off, On
    Privacy Masking Off, On (4 Areas, Rectangular)
    Audio
    Compression G.711a, G.711Mu, AAC, G.726
    Network
    Ethernet RJ-45 (10/100 Base-T)
    Protocol IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP,
    RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS,
    QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS,
    PPPoE, 802.1x, SNMP
    Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
    Streaming Method Unicast / Multicast
    Maximum User Access 20 Users (total bandwidth: 64 Mbps)
    Edge Storage Network Attached Storage (NAS)
    FTP, SFTP,
    Micro SD Card Slot, maximum 256 GB
    Web Viewer IE (Version 8 and higher), Chrome, Firefox,
    Management Software DSS, DMSS
    Mobile Operating System IOS, Android
    Certifications
    Safety UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07
    EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
    + A2:2013
    IEC 60950-1:2005 (Second Edition)
    Electromagnetic Compatibility
    (EMC)
    47 CFR FCC Part 15, Subpart B, Class B EN 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014

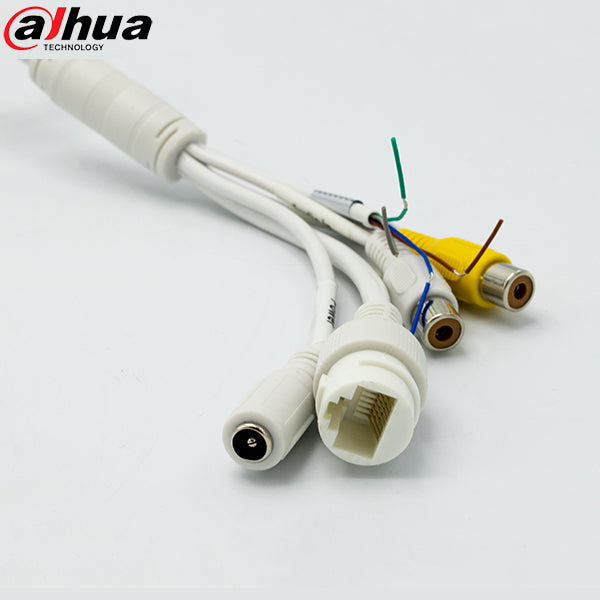

    Interface
    Audio Input: One (1) Channel, RCA
    Output: One (1) Channel, RCA
    Alarm Input: One (1) Channel (5 mA, 3 to 5 VDC)
    Output: One (1) Channel (300 mA, 12 VDC)
    Electrical
    Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
    Power Consumption < 9.8 W
    Environmental
    Operating Conditions –40° C to +60° C (–40° F to +140° F),
    Less than 95% RH
    Storage Conditions –40° C to +60° C (–40° F to +140° F)
    Ingress Protection IP67
    Construction
    Casing Metal

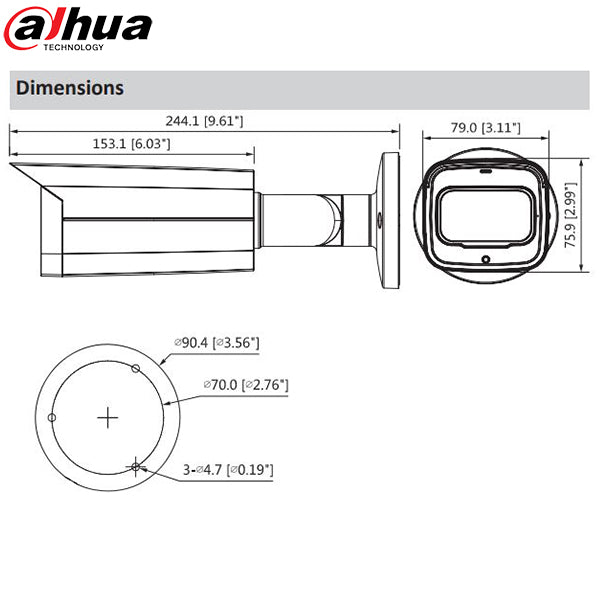

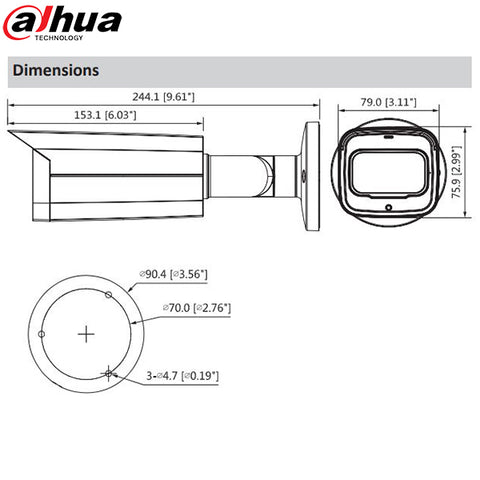

    Dimensions 244.10 mm x 79.0 mm x 75.90 (9.61 in. x 3.11 in. x 2.99 in.)
    Net Weight 0.82 kg (1.81 lb)
    Gross Weight 1.09 kg (2.40 lb)
    Analytics+ Functions²
    Perimeter Protection Detects human or vehicle violations using the following
    methods:
    Tripwire: a target crosses a defined line.
    Intrusion: a target enters or exits a defined perimeter.
    • Monitors a combination of ten (10) detection methods.
    • Search and retrieve video based on target type.
    Smart Motion Detection³ • Differentiates between and classify human and vehicle
    objects.
    • Filters false alarms due to leaves, lights, animals, and
    other inconsequential objects.
    • Extracts human or vehicle objects from recorded video
    for quick target search and retrieval.
    Intelligent Video System Functions²
    IVS triggers an alarm and takes a defined action for the following events:
    Standard Features • Tampering with the camera.
    • Error writing to an onboard Micro SD card.
    • Error sending or receiving data over the network.
    • Unauthorized access to the camera.
    • IP Address Conflict
    Premium Features
    Motion An object moves through any part of the scene
    Scene Change A person or object moves the camera to change the
    scene or covers the camera to obscure the scene.

    1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
    2. The Analytics+ functions and the IVS functions cannot be used at the same time, only one Analytics+ or IVS
    function can be used at a time. In addition, the Smart H.265+ and the Smart H.264+ Codec cannot be used
    simultaneously with either an Analytics+ or an IVS feature.
    3. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to
    take advantage of SMD alarm filtering and object classification when searching and playing back recorded
    video.

    Downloads:
    Data Sheet
    Quick Start Guide
    User Manual

    System Overview

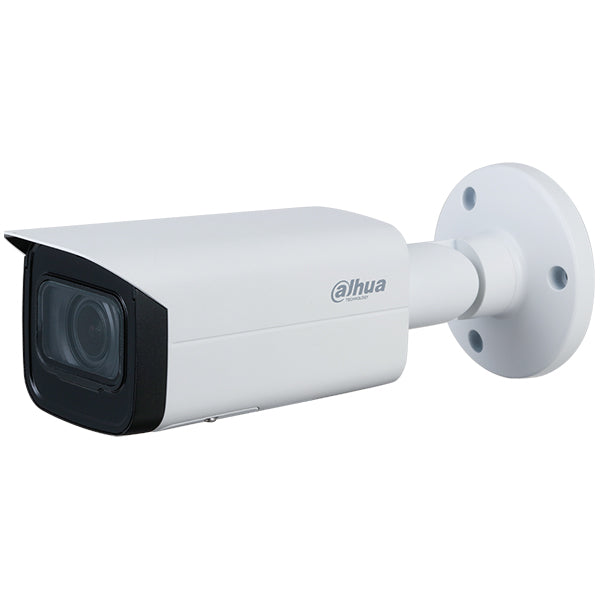

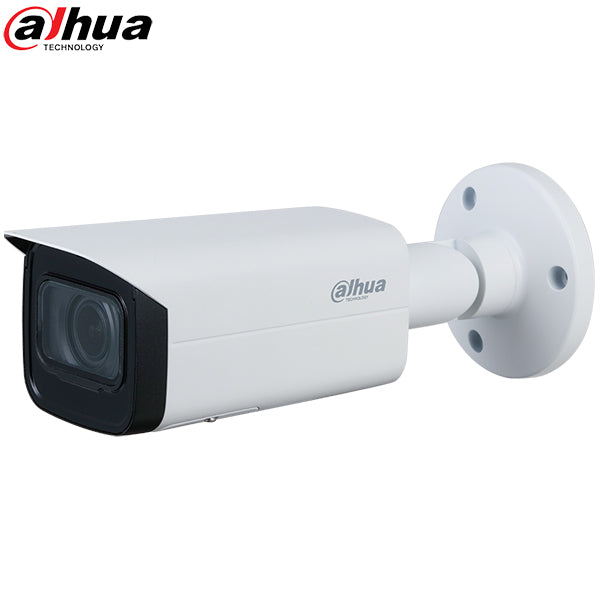

    The Dahua 5 MP Starlight camera offers Smart Motion Detection for
    improved alarm accuracy from intrusion and tripwire functions. The
    camera is ideal for a host of diverse applications — Starlight, True Wide
    Dynamic Range, and IR illumination allow the camera to operate in any
    lighting condition. The camera is a component of the Dahua ArcticPro
    series and is rated to IP67 allowing the camera to deliver high-quality
    and reliable video in the harshest environments.

    Functions

    Perimeter Protection
    Dahua Analytics+ includes Tripwire and Intrusion functions that offer
    custom tripwires based on object type for automation in limited access
    areas. Perimeter Protection requires less pixels to detect an object to
    deliver improved accuracy and decreased false alarms due to lights,
    weather, trees, or animals.

    Smart Motion Detection
    Smart Motion Detection, a component of Dahua's Analytics+ technology,
    improves alarm accuracy and decreases the number of false alarms. The
    advanced SMD algorithm analyzes a scene for human or vehicle motion,
    while filtering out other motion due to trees, leaves, animals, weather,
    and triggers an alarm when detected. SMD also saves time when
    searching recorded video by filtering false alarms and allowing quick
    retrieval of an alarm due to a person or vehicle.

    ArcticPro
    The Dahua ArcticPro Series of extreme-environment cameras combine
    temperature-tolerant components with a waterproof enclosure to
    ensure flawless operation in temperatures as low as –40° C (–40° F)
    without the need for an internal heater. The lack of a heater reduces the
    camera’s power consumption and saves operating costs. For applications
    that demand high-resolution video with advanced features in extremely
    cold environments, the Dahua ArcticPro Series offers a camera to satisfy
    the most demanding requirements.

    Starlight Technology
    For challenging low-light applications, Dahua's Starlight Ultra-low Light
    Technology offers best-in-class light sensitivity, capturing color details
    in low light conditions. The camera uses a set of optical features to
    balance light throughout the scene, resulting in clear images in dark
    environments.

    Smart H.265
    Smart H.265+ is the optimized implementation of the H.265 codec that
    uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
    flexible multi-frame reference structure and intelligent noise reduction to
    deliver high-quality video without straining the network. Smart H.265+
    technology reduces bit rate and storage requirements by up to 70%
    when compared to standard H.265 video compression.

    Wide Dynamic Range
    The camera achieves vivid images, even in the most intense contrast
    lighting conditions, using industry-leading wide dynamic range (WDR)
    technology. For applications with both bright and low lighting conditions
    that change quickly, True WDR (120 dB) optimizes both the bright and
    dark areas of a scene at the same time to provide usable video.

    Environmental
    Subjected to rigorous dust and water immersion tests and certified to the
    IP67 Ingress Protection rating makes it suitable for demanding outdoor
    applications. The camera offers a wide voltage range, with a 30% input
    voltage tolerance, suitable for external applications with unstable power
    sources.

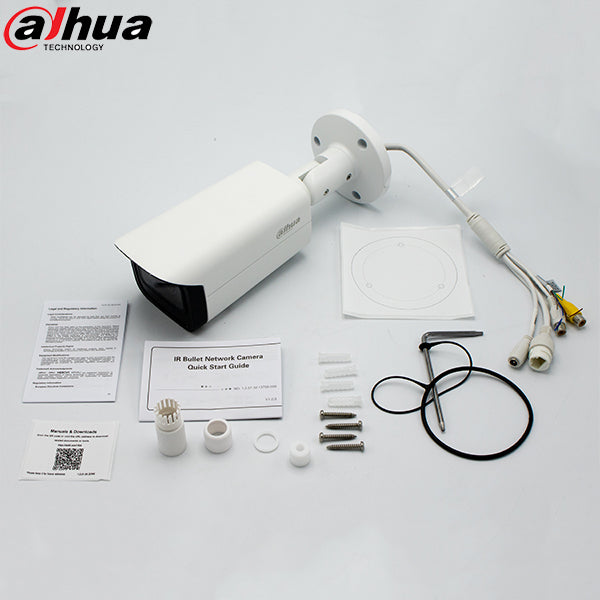

    DH-N53AF5Z
    Item Number: XXXX

    • 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
    • Triple-stream Encoding
    • Smart H.265+ and Smart H.264+ Dual Codec
    • 5 MP (2592 x 1944) at 20 fps
    • 2.7 mm to 13.5 mm Motorized Vari-focal Lens
    • Starlight Technology for Low-light Applications
    • Analytics+ Function – Perimeter Protection
    • Smart Motion Detection for Improved Alarm Accuracy
    • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
    • Maximum IR LED Distance 60 m (196.85 ft)
    • ArcticPro Series Camera - Operational down to –40° C (–40° F)
    • IP67 Ingress Protection
    • Five-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices!

      Technical Specification

      Series: Lite
      Body: Bullet
      Image Sensor: 1/2.7-in. 5 MP CMOS
      Resolution: 5 MP, 2592(H) x 1944(V)
      Angle of View: Horizontal: 99° to 26°
      Vertical: 72° to 20°
      Diagonal: 133° to 33°
      Lens Type: Motorized Vari-focal
      Focal Length: 2.7 mm to 13.5 mm
      Min. Illumination: Color: 0.005 lux at F1.5
      0 lux at F1.5 (IR on)
      Day/Night: Auto (ICR), Color, B/W
      Max. IR Range: Up to 60.0 m (196.85 ft)
      WDR: 120dB
      Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
      H.264B, H.264H, MJPEG (Sub Stream only)
      Audio Compression: G.711a, G.711Mu, AAC, G.726
      Frame Rate: 5 MP (2592 x 1944) at 20 fps or
      4 MP (2688 x 1520) at 30 fps
      Multi-Streaming: 3 Streams
      IVS: Motion, Scene Change
      Analytics+: Perimeter Protection,
      Smart Motion Detection
      ONVIF: Yes
      Audio In: One (1) Channel, RCA
      Audio Out: One (1) Channel, RCA
      Memory Slot: Micro SD Slot, maximum 256 GB
      Alarm In: One (1) Channel (5 mA, 3 to 5 VDC)
      Alarm Out: One (1) Channel (300 mA, 12 VDC)
      IP Rating: 67
      IK Rating: -
      Operating Temp: –40° C to +60° C (–40° F to +140° F)
      Less than 95% RH
      Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
      < 9.8 W
      ePoE: No
      Camera
      Image Sensor 1/2.7-in. 5 MP CMOS
      Effective Pixels 2592(H) x 1944(V)
      RAM/ROM 512 MB/128 MB
      Scanning System Progressive
      Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
      Minimum Illumination Color: 0.005 lux at F1.5
      0 lux at F1.5 (IR on)
      IR Distance Up to 60.0 m (196.85 ft)
      IR On/Off Control Auto, Manual
      IR LEDs Four (4)
      Lens
      Lens Type Motorized Vari-focal
      Iris Type Fixed Aperture
      Mount Type 14
      Focal Length 2.7 mm to 13.5 mm
      Angle of View Horizontal: 99° to 26°
      Vertical: 72° to 20°
      Diagonal: 133° to 33°
      Close Focus Distance 0.80 m (2.62 ft)
      DORI Distance - Focus - Wide - Detect 64.0 m (209.97 ft)
      DORI Distance - Focus - Wide - Observe 25.60 m (83.99 ft)
      DORI Distance - Focus - Wide - Recognize 12.80 m (41.99 ft)
      DORI Distance - Focus - Wide - Identify 6.40 m (21.0 ft)
      DORI Distance - Focus - Tele - Detect 222.0 m (728.35 ft)
      DORI Distance - Focus - Tele - Observe 88.80 m (291.34 ft)
      DORI Distance - Focus - Tele - Recognize 44.40 m (145.67)
      DORI Distance - Focus - Tele - Identify 22.20 m (72.84)
      Installation Angle
      Range Pan: 0˚ to 355˚
      Tilt: 0˚ to 75˚
      Rotation: 0˚ to 355˚
      Video
      Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
      H.264H, MJPEG (Sub Stream only)
      Streaming Capability Three (3) Streams
      Resolution 5 MP (2592 x 1944), 4 MP (2688 x 1520),
      3 MP (2304 x 1296), 1080p (1920 x 1080),
      1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480),
      VGA (640 x 480), CIF (352 x 240)
      Frame Rate Main Stream: 5 MP (2592 x 1944) at 20 fps or
      4 MP (2688 x 1520) at 30 fps
      Frame Rate Sub Stream 1: D1 (704 x 480) at 30 fps
      Frame Rate Sub Stream 2: 720p (1280 x 720) at 30 fps
      Bit Rate Control CBR/VBR
      Bit Rate H.264: 3 Kbps to 8192 Kbps
      H.265: 3 Kbps to 8192 Kbps
      Day/Night Auto (ICR), Color, B/W
      BLC Mode BLC, HLC, True WDR (120 dB), SSA
      White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
      Regional Custom
      Gain Control Auto, Manual, Shutter Priority, Gain Priority
      Noise Reduction 3D DNR
      Motion Detection Off, On (4 Zones, Rectangular)
      Region of Interest Off, On (4 Zones)
      Advanced Features Smart IR
      Image Rotation 0°, 90°, 180°, 270°
      (supports 90°, 270° at 1920 x 1080 resolution)
      Mirror Off, On
      Privacy Masking Off, On (4 Areas, Rectangular)
      Audio
      Compression G.711a, G.711Mu, AAC, G.726
      Network
      Ethernet RJ-45 (10/100 Base-T)
      Protocol IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP,
      RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS,
      QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS,
      PPPoE, 802.1x, SNMP
      Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
      Streaming Method Unicast / Multicast
      Maximum User Access 20 Users (total bandwidth: 64 Mbps)
      Edge Storage Network Attached Storage (NAS)
      FTP, SFTP,
      Micro SD Card Slot, maximum 256 GB
      Web Viewer IE (Version 8 and higher), Chrome, Firefox,
      Management Software DSS, DMSS
      Mobile Operating System IOS, Android
      Certifications
      Safety UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07
      EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
      + A2:2013
      IEC 60950-1:2005 (Second Edition)
      Electromagnetic Compatibility
      (EMC)
      47 CFR FCC Part 15, Subpart B, Class B EN 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014
      Interface
      Audio Input: One (1) Channel, RCA
      Output: One (1) Channel, RCA
      Alarm Input: One (1) Channel (5 mA, 3 to 5 VDC)
      Output: One (1) Channel (300 mA, 12 VDC)
      Electrical
      Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
      Power Consumption < 9.8 W
      Environmental
      Operating Conditions –40° C to +60° C (–40° F to +140° F),
      Less than 95% RH
      Storage Conditions –40° C to +60° C (–40° F to +140° F)
      Ingress Protection IP67
      Construction
      Casing Metal
      Dimensions 244.10 mm x 79.0 mm x 75.90 (9.61 in. x 3.11 in. x 2.99 in.)
      Net Weight 0.82 kg (1.81 lb)
      Gross Weight 1.09 kg (2.40 lb)
      Analytics+ Functions²
      Perimeter Protection Detects human or vehicle violations using the following
      methods:
      Tripwire: a target crosses a defined line.
      Intrusion: a target enters or exits a defined perimeter.
      • Monitors a combination of ten (10) detection methods.
      • Search and retrieve video based on target type.
      Smart Motion Detection³ • Differentiates between and classify human and vehicle
      objects.
      • Filters false alarms due to leaves, lights, animals, and
      other inconsequential objects.
      • Extracts human or vehicle objects from recorded video
      for quick target search and retrieval.
      Intelligent Video System Functions²
      IVS triggers an alarm and takes a defined action for the following events:
      Standard Features • Tampering with the camera.
      • Error writing to an onboard Micro SD card.
      • Error sending or receiving data over the network.
      • Unauthorized access to the camera.
      • IP Address Conflict
      Premium Features
      Motion An object moves through any part of the scene
      Scene Change A person or object moves the camera to change the
      scene or covers the camera to obscure the scene.

      1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
      2. The Analytics+ functions and the IVS functions cannot be used at the same time, only one Analytics+ or IVS
      function can be used at a time. In addition, the Smart H.265+ and the Smart H.264+ Codec cannot be used
      simultaneously with either an Analytics+ or an IVS feature.
      3. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to
      take advantage of SMD alarm filtering and object classification when searching and playing back recorded
      video.

      Downloads:
      Data Sheet
      Quick Start Guide
      User Manual

      System Overview
      The Dahua 5 MP Starlight camera offers Smart Motion Detection for
      improved alarm accuracy from intrusion and tripwire functions. The
      camera is ideal for a host of diverse applications — Starlight, True Wide
      Dynamic Range, and IR illumination allow the camera to operate in any
      lighting condition. The camera is a component of the Dahua ArcticPro
      series and is rated to IP67 allowing the camera to deliver high-quality
      and reliable video in the harshest environments.

      Functions

      Perimeter Protection
      Dahua Analytics+ includes Tripwire and Intrusion functions that offer
      custom tripwires based on object type for automation in limited access
      areas. Perimeter Protection requires less pixels to detect an object to
      deliver improved accuracy and decreased false alarms due to lights,
      weather, trees, or animals.

      Smart Motion Detection
      Smart Motion Detection, a component of Dahua's Analytics+ technology,
      improves alarm accuracy and decreases the number of false alarms. The
      advanced SMD algorithm analyzes a scene for human or vehicle motion,
      while filtering out other motion due to trees, leaves, animals, weather,
      and triggers an alarm when detected. SMD also saves time when
      searching recorded video by filtering false alarms and allowing quick
      retrieval of an alarm due to a person or vehicle.

      ArcticPro
      The Dahua ArcticPro Series of extreme-environment cameras combine
      temperature-tolerant components with a waterproof enclosure to
      ensure flawless operation in temperatures as low as –40° C (–40° F)
      without the need for an internal heater. The lack of a heater reduces the
      camera’s power consumption and saves operating costs. For applications
      that demand high-resolution video with advanced features in extremely
      cold environments, the Dahua ArcticPro Series offers a camera to satisfy
      the most demanding requirements.

      Starlight Technology
      For challenging low-light applications, Dahua's Starlight Ultra-low Light
      Technology offers best-in-class light sensitivity, capturing color details
      in low light conditions. The camera uses a set of optical features to
      balance light throughout the scene, resulting in clear images in dark
      environments.

      Smart H.265
      Smart H.265+ is the optimized implementation of the H.265 codec that
      uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
      flexible multi-frame reference structure and intelligent noise reduction to
      deliver high-quality video without straining the network. Smart H.265+
      technology reduces bit rate and storage requirements by up to 70%
      when compared to standard H.265 video compression.

      Wide Dynamic Range
      The camera achieves vivid images, even in the most intense contrast
      lighting conditions, using industry-leading wide dynamic range (WDR)
      technology. For applications with both bright and low lighting conditions
      that change quickly, True WDR (120 dB) optimizes both the bright and
      dark areas of a scene at the same time to provide usable video.

      Environmental
      Subjected to rigorous dust and water immersion tests and certified to the
      IP67 Ingress Protection rating makes it suitable for demanding outdoor
      applications. The camera offers a wide voltage range, with a 30% input
      voltage tolerance, suitable for external applications with unstable power
      sources.

      Compatible With
