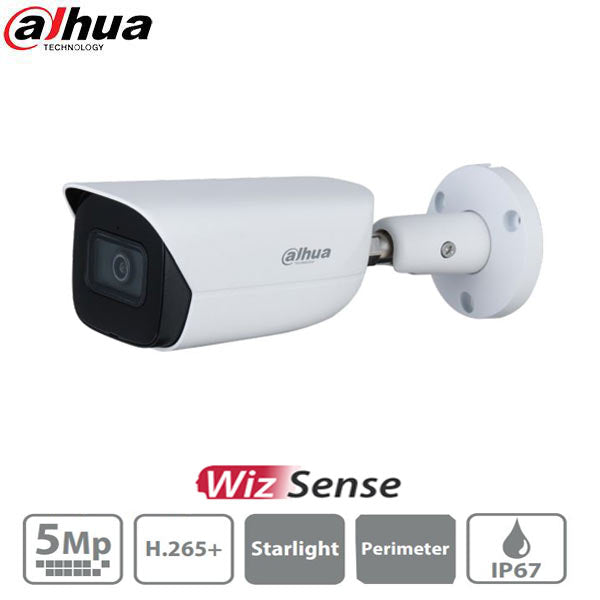

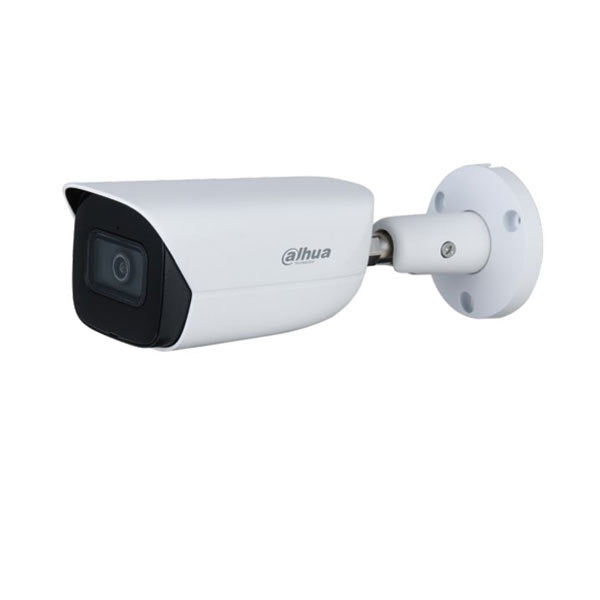

*Discontinued* Dahua / IP / 5MP / Bullet Camera / Motorized Varifocal / 2.8mm Lens / WDR / IP67 / 50m IR / Starlight / DH-N53AB52
- $251.98
-
- $251.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-N53AB52
The Dahua 5 MP Starlight camera offers Smart Motion Detection for improved alarm accuracy from intrusion and tripwire functions. The camera is ideal for a host of diverse applications — Starlight, True Wide Dynamic Range, and IR illumination allow the camera to operate in any lighting condition. The camera is a component of the Dahua ArcticPro series and is rated to IP67 allowing the camera to deliver high-quality and reliable video in the harshest environments.
- 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP (2592 x 1944) at 20 fps, 2.8 mm Fixed Lens
- Starlight Technology for Low-light Applications
- Analytics+ Function – Perimeter Protection and Smart Motion Detection+
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Maximum IR LED Distance 50 m (164.04 ft)
- Built-in Microphone
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Become a registered dealer of Dahua!
- Call 1-800-878-6604 for Dealer Prices!
- $251.98
-
- $251.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| Camera | |
| Image Sensor | 1/2.7-in. 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.005 lux at F1.6 0 lux at F1.6 (IR on) |
| IR Distance | Up to 50.0 m (164.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
| Lens | |
| Lens Type | Fixed Focal |
| Iris Type | Fixed Aperture |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 98° Vertical: 72° Diagonal: 130° |
| Close Focus Distance | 0.90 m (2.95 ft) |
| DORI Distance - Lens | 2.8 mm |
| DORI Distance - Detect | 56.0 m (183.73 ft) |
| DORI Distance - Observe | 22.40 m (73.49 ft) |
| DORI Distance - Recognize | 11.20 m (36.75 ft) |
| DORI Distance - Identify | 5.60 m (18.37 ft) |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 5 MP (2592 x 1944), 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 5 MP (2592 x 1944) at 20 fps or 4 MP (2688 x 1520) at 30 fps Sub Stream 1: D1 (704 x 480) at 30 fps Sub Stream 2: 720p (1280 x 720) at 30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Shutter Priority, Gain Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Smart IR |
| Image Rotation | 0°, 90°, 180°, 270° (supports 90°, 270° at 1920 x 1080 resolution) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
| Audio | |
| Compression | G.711a, G.711Mu, G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF Profile S and G, CGI, Milestone, Genetec, P2P |
| Auto Register | Support |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users (total bandwidth: 64 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP, Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Interface | |
| Audio - Input | One (1) Channel, RCA plus Built-in Microphone |
| Audio - Output | One (1) Channel, RCA |
| Alarm - Input | One (1) Channel (5 mA, 3 to 5 VDC) |
| Alarm - Output | One (1) Channel (300 mA, 12 VDC) |
| Electrical | |
| Power Supply | 12 VDC or PoE (IEEE 802.3af, Class 0) |
| Power Consumption | < 5.4 W |
| Construction | |
| Casing | Metal |
| Dimensions |
192.70 mm x 70.50 x 66.40 mm |
| Certifications |
UL, EN, CSA/CNA, CFR FCC, IEC, IP67 |
| Manufacturer's Warranty |
5 Years |
Downloads:
WizSense Series devices combine Dahua's powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.
Functions:
Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.
Smart Motion Detection+
Smart Motion Detection, a component of Dahua's Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.
ArcticPro
The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components with a waterproof enclosure to ensure flawless operation in temperatures as low as –40° C (–40° F) without the need for an internal heater. The lack of a heater reduces the camera’s power consumption and saves operating costs. For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light conditions. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Smart H.265
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Cybersecurity
Dahua network cameras are equipped with a series of key cybersecurity technologies including: security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.
Environmental
Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications. The camera offers a wide voltage range, with a 30% input voltage tolerance, suitable for external applications with unstable power sources.
