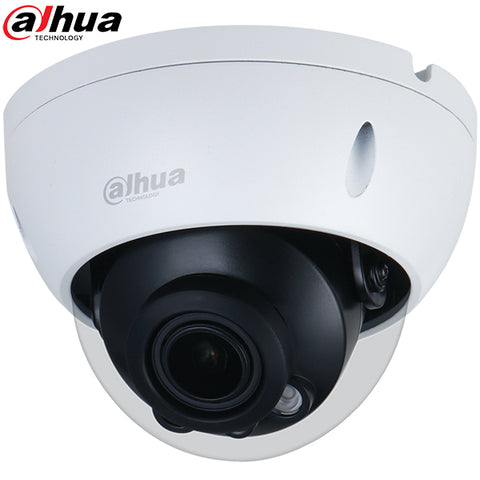

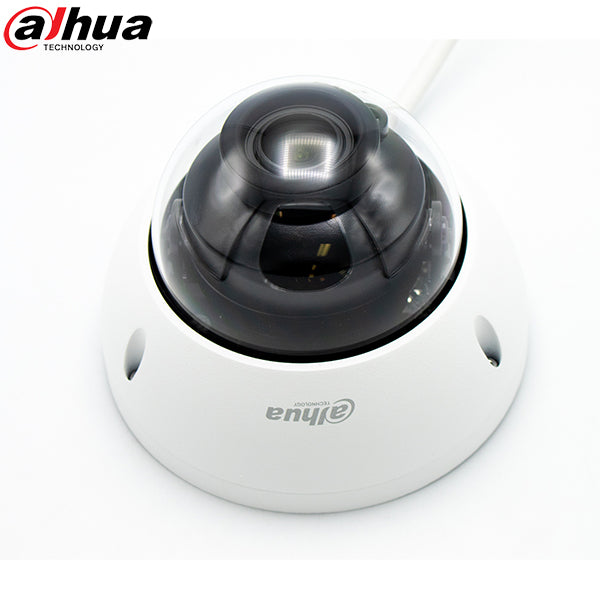

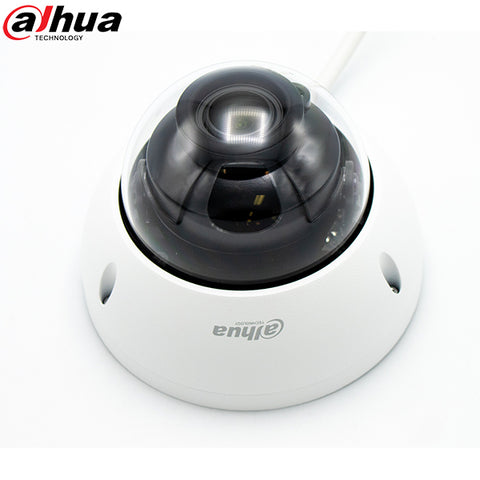

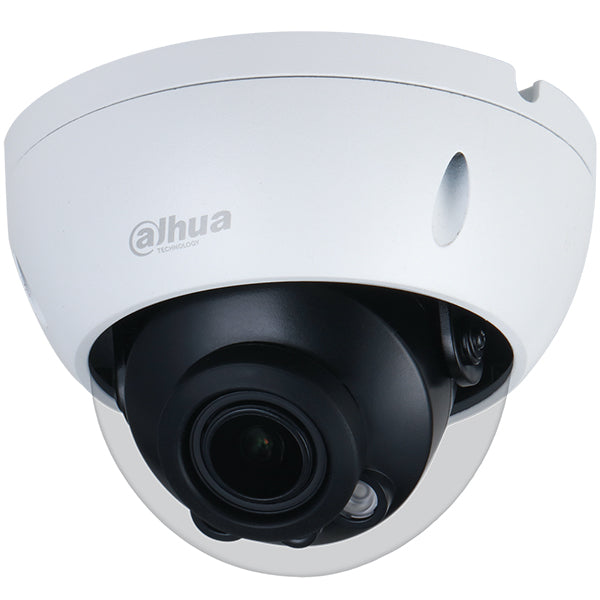

*Discontinued* Dahua / IP / 5MP / Dome Camera / Motorized Varifocal / 2.7-13.5mm Lens / Outdoor / WDR / IP67 / IK10 / 40m IR / Starlight / Smart Motion Detection / 5 Year Warranty / DH-N53AM5Z
- $272.79
-
- $272.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-N53AM5Z
The Dahua 5 MP Starlight camera offers Smart Motion Detection for improved alarm accuracy from intrusion and tripwire functions. The camera is ideal for a host of diverse applications — Starlight, True Wide Dynamic Range, and IR illumination allow the camera to operate in any lighting condition. The camera is rated to the IP67 Ingress Protection and to the IK10 Vandal Resistance standards, allowing the camera to deliver high-quality and reliable video in the harshest environments.
- 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP (2592 x 1944) at 20 fps
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- Starlight Technology for Low-light Applications
- Analytics+ Function – Perimeter Protection
- Smart Motion Detection for Improved Alarm Accuracy
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Maximum IR LED Distance 40 m (131.23 ft)
- Intelligent Video System
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $272.79
-
- $272.79
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Series: | Lite |
| Body: | Dome |
| Image Sensor: | 1/2.7-in. 5 MP CMOS |
| Resolution: | 5 MP, 2592(H) x 1944(V) |
| Angle of View: | Horizontal: 99° to 26° Vertical: 72° to 20° Diagonal: 133° to 33° |
| Lens Type: | Motorized Vari-focal |
| Focal Length: | 2.7 mm to 13.5 mm |
| Min. Illumination: | Color: 0.005 lux at F1.5 0 lux at F1.5 (IR on) |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 40.0 m (131.23 ft) |
| WDR: | 120dB |
| Video Compression: | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) |
| Audio Compression: | G.711a, G.711Mu, AAC, G.726 |
| Frame Rate: | 5 MP (2592 x 1944) at 20 fps or 4 MP (2688 x 1520) at 30 fps |
| Multi-Streaming: | 3 Streams |
| IVS: | Motion, Scene Change Analytics+: Perimeter Protection, Smart Motion Detection |
| ONVIF: | Yes |
| Audio In: | One (1) Channel, RCA |
| Audio Out: | One (1) Channel, RCA |

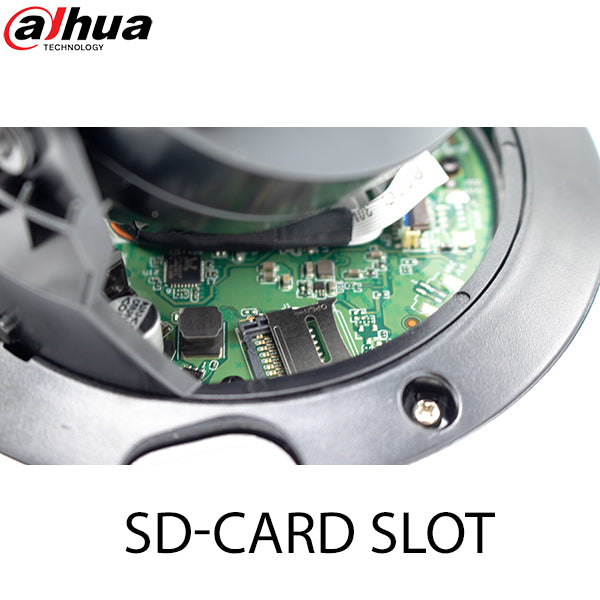

| Memory Slot: | Micro SD Slot, maximum 256 GB |
| Alarm In: | One (1) Channel (5 mA, 3 to 5 VDC) |
| Alarm Out: | One (1) Channel (300 mA, 12 VDC) |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Operating Temp: | –30° C to +60° C (–22° F to +140° F) Less than 95% RH |
| Power: | 12 VDC or PoE (IEEE 802.3af, Class 0) < 8.5 W |
| ePoE: | No |
| Camera | |
| Image Sensor | 1/2.7-in. 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.5 0 lux at F1.5 (IR on) |
| IR Distance | Up to 40.0 m (131.23 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Iris Type | Fixed Aperture |
| Mount Type | 14 |
| Focal Length | 2.7 mm to 13.5 mm |
| Maximum Aperture | F1.5 |
| Angle of View | Horizontal: 99° to 26° Vertical: 72° to 20° Diagonal: 133° to 33° |
| Close Focus Distance | 0.80 m (2.62 ft) |
| DORI Distance - Focus - Wide - Detect | 64.0 m (209.97 ft) |
| DORI Distance - Focus - Wide - Observe | 25.60 m (83.99 ft) |
| DORI Distance - Focus - Wide - Recognize | 12.80 m (41.99 ft) |
| DORI Distance - Focus - Wide - Identify | 6.40 m (21.0 ft) |
| DORI Distance - Focus - Tele - Detect | 222.0 m (728.35 ft) |
| DORI Distance - Focus - Tele - Observe | 88.80 m (291.34 ft) |
| DORI Distance - Focus - Tele - Recognize | 44.40 m (145.67) |
| DORI Distance - Focus - Tele - Identify | 22.20 m (72.84) |
| Installation Angle | |
| Range | Pan: 0˚ to 355˚ Tilt: 0˚ to 75˚ Rotation: 0˚ to 355˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 5 MP (2592 x 1944), 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 5 MP (2592 x 1944) at 20 fps or 4 MP (2688 x 1520) at 30 fps |
| Frame Rate | Sub Stream 1: D1 (704 x 480) at 30 fps |
| Frame Rate | Sub Stream 2: 720p (1280 x 720) at 30 fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 3 Kbps to 8192 Kbps H.265: 3 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Shutter Priority, Gain Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Smart IR |
| Image Rotation | 0°, 90°, 180°, 270° (supports 90°, 270° at 1920 x 1080 resolution) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
| Audio | |
| Compression | G.711a, G.711Mu, AAC, G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, SNMP |
| Interoperability | ONVIF Profile S and G, CGI, Milestone, Genetec, P2P |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users (total bandwidth: 64 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP, Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE (Version 8 and higher), Chrome, Firefox, |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (Second Edition) |
| Electromagnetic Compatibility (EMC) |
47 CFR FCC Part 15, Subpart B, Class B EN 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2014 |
| Interface | |

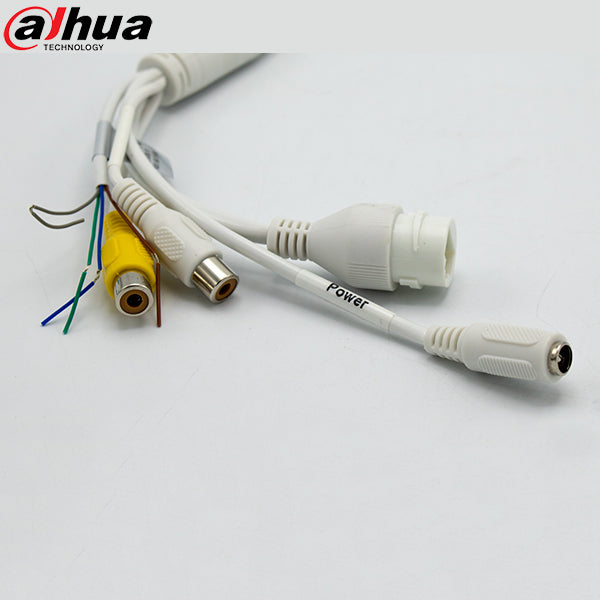

| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Alarm | Input: One (1) Channel (5 mA, 3 to 5 VDC) Output: One (1) Channel (300 mA, 12 VDC) |
| Electrical | |
| Power Supply | 12 VDC or PoE (IEEE 802.3af, Class 0) |
| Power Consumption | < 8.5 W |
| Environmental | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |

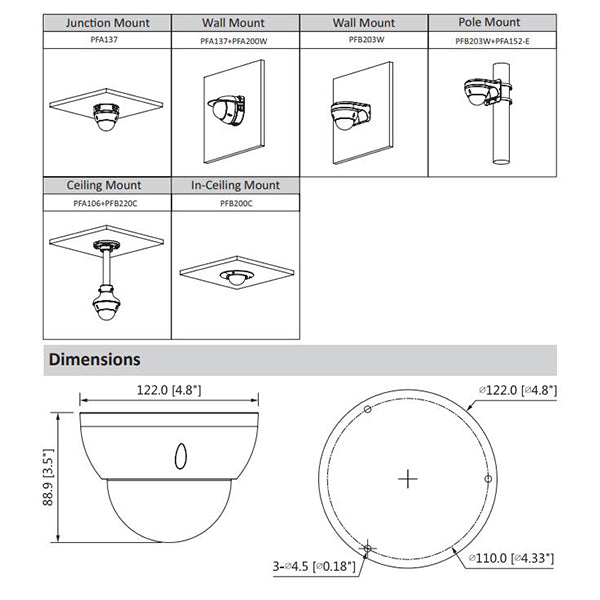

| Dimensions | 122.0 mm x 88.90 mm (4.80 in. x 3.50 in.) |
| Net Weight | 0.492 kg (1.09 lb) |
| Analytics+ Functions² | |
| Perimeter Protection | Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of ten (10) detection methods. • Search and retrieve video based on target type. |
| Smart Motion Detection³ | • Differentiates between and classify human and vehicle objects. • Filters false alarms due to leaves, lights, animals, and other inconsequential objects. • Extracts human or vehicle objects from recorded video for quick target search and retrieval. |
| Intelligent Video System Functions² | |
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. • IP Address Conflict |
| Premium Features | |
| Motion | An object moves through any part of the scene. |
| Scene Change | A person or object moves the camera to change the scene or covers the camera to obscure the scene. |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. The Analytics+ functions and the IVS functions cannot be used at the same time, only one Analytics+ or IVS function can be used at a time. In addition, the Smart H.265+ and the Smart H.264+ Codec cannot be used simultaneously with either an Analytics+ or an IVS feature. 3. Pair a Smart Motion Detection camera with a Dahua recording device that also offers SMD functionality to take advantage of SMD alarm filtering and object classification when searching and playing back recorded video.
Downloads:

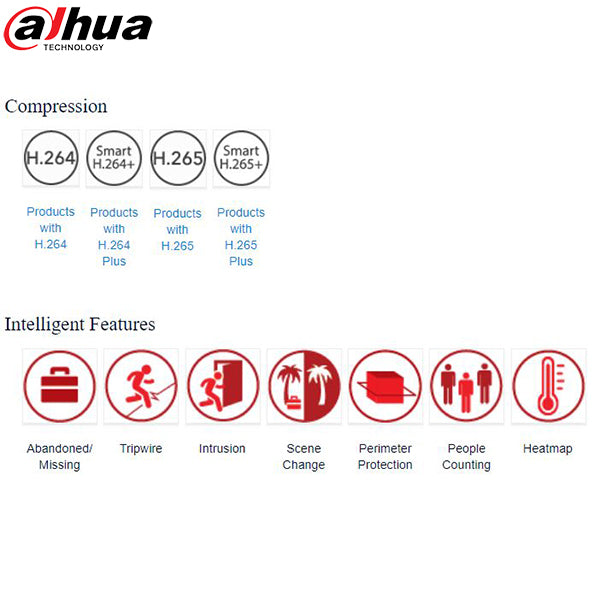

Functions:
Perimeter Protection
Dahua Analytics+ includes Tripwire and Intrusion functions that offer custom tripwires based on object type for automation in limited access areas. Perimeter Protection requires less pixels to detect an object to deliver improved accuracy and decreased false alarms due to lights, weather, trees, or animals.
Smart Motion Detection (SMD)
Smart Motion Detection, a component of Dahua's Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.
Starlight Technology
For challenging low-light applications, Dahua's Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light conditions. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Smart H.265
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Environmental
The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications. The camera offers a wide voltage range, with a 30% input voltage tolerance, suitable for external applications with unstable power sources.
