*Discontinued* Dahua / ePoE Ethernet Switch / 24-Port / 800m PoE / 100-240 VAC / 360W / Managed / LR2226-24ET-360
Out of Stock
SKU:
DH-LR2226-24ET-360
NSID:
28313
- $683.98
-
- $683.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-LR2226-24ET-360

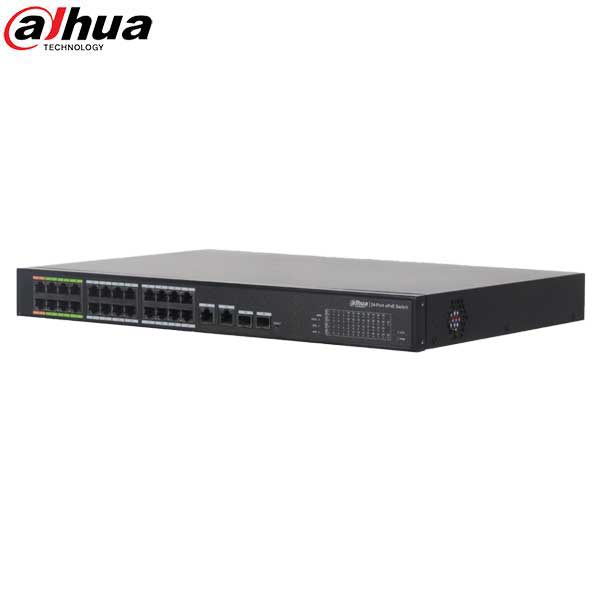

The DH-LR2226-24ET-360 is a 24-port ePoE Ethernet switch that supports PoE, PoE+, Hi-PoE and the PoC transmission standards. The switch is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.
Features
- Layer 2 Managed Network ePoE Switch
- Enhanced Power and Data Transmission Distances with ePoE
- Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
- Supports IEEE, E100, and E10 Transmission Modes (Ports 1 to 8)
- Supports Twisted-pair and Coaxial Cable Transmission (Ports 1 to 8)
- Web Management Protocols: 802.1Q, VLAN, STP/RTSP, LACP, 802.1X, QoS
- Supports PoE Management, Green PoE, and Legacy Support
- Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
- Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $683.98
-
- $683.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Ethernet Ports | Two (2) 1000 Base-X Ports (combo ports) Two (2) 10/100/1000 Base-T Ports 24 10/100 Base-T Ports (PoE Power Supply) |
| PoE Features | Hi-PoE: Ports 1 and 2 Consumption: up to 60 W per port IEEE802.3af, IEEE802.3at: Ports 3 to 24 Consumption: up to 30 W per port Enhanced PoE (ePoE): Ports 1 to 8 Total PoE Budget: ≤ 360 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Packet Buffer Memory | 2.75 MB |
| Power Requirements | 100 VAC to 240 VAC, 50/60 Hz |
| Lightning Protection | Common Mode: 4 KV Differential Mode: 2 KV |
| Dimensions | 17.32 in. x 11.81 in. x 1.73 in. |
| Certifications | EN, EL, FCC, IEC |
| Warranty | Limited Lifetime |
