*Discontinued* Dahua / PoE Ethernet Switch / 16-Port / 250m PoE / Managed / DH-PFS4218-16GT2GF-240
Out of Stock
SKU:
DH-PFS4218-16GT2GF-240
NSID:
26840
- $586.78
-
- $586.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFS4218-16GT2GF-240

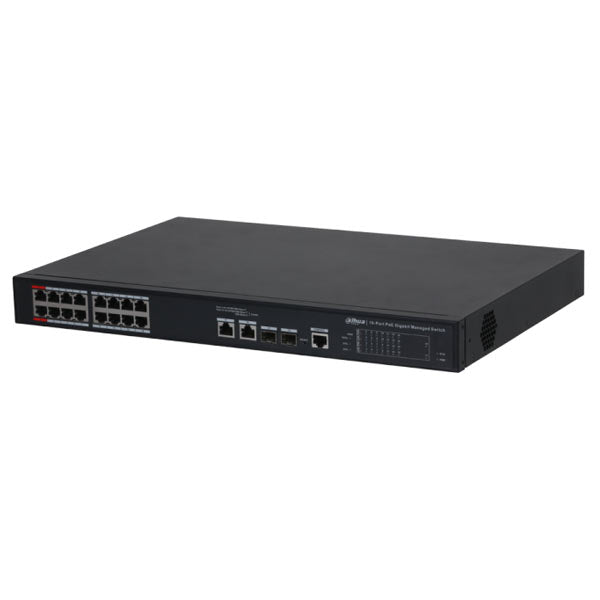

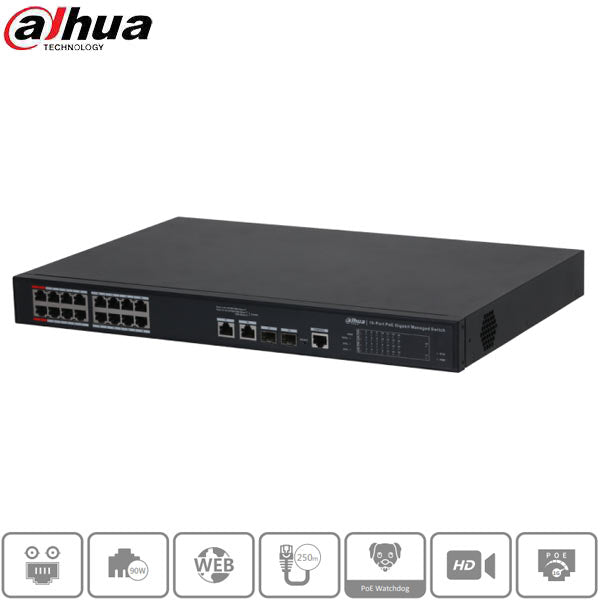

The Dahua DH-PFS4218-16GT2GF-240 16-port Managed Desktop Gigabit Switch is designed for field transmission applications and for high-definition video. The switch is equipped with a high performance switching engine, a large buffer, low transmission delay, and high reliability. In addition to the 16 PoE ports, the switch offers two (2) gigabit uplink combo ports with a PoE budget of 240 W. The switch also delivers powerful network management functions including CLI, iLinksView, and Web and network management software based on SNMP. The switch is housed in a sealed, metal case that offers low power consumption.
Features
- Layer 2 Network Management PoE Ethernet Switch
- Security Device Discovery Identifies all IP Devices Connected to the Same Network
- Intelligent PoE for Power Consumption Management
- Long-distance PoE Transmission Distance, up to 250.0 m (820.21 ft)
- PoE Watchdog Function Monitors Network
- High-capacity Data Cache (4-megabit) for Real-time Transmission with smooth video
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt Standards
- Limited Lifetime Warranty as two years after end of sale date
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $586.78
-
- $586.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Technical Specifications | |
|---|---|
| Ethernet Ports | Ports 1 through 16: 10/100/1000, RJ45 Ports 17 and 18: 10/100/1000 (uplink), RJ45 Ports 17 and 18: SFP 1000 Mbps (uplink combo) |
| PoE Power Consumption |
Ports 1 and 2: ≤ 90 W (IEEE802.3bt) Ports 3 through 16: ≤ 30 W (IEEE802.3at) Total Power Consumption: ≤ 240 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE, PoE++ (IEEE802.3bt) |
| PoE PIN Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-); |
| PoE Management | Power consumption management Power on and power off Power down for overload Green PoE Legacy support |
| PoE Transmission Distance¹ | 250.0 m (820.21 ft) |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 26.784 Mpps |
| Packet Buffer Memory | 4 MB |
| MAC Table Size | 8K |
| VLAN Amount |
4K |
| Standards Compliance | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z |
| Power Input | 100 VAC to 240 VAC |
| Power Consumption | Idle: 18 W PoE Full Load: 240 W |
| Operating Temperature | –10° C to 55° C (14° F to 131° F) |
| Operating Humidity | 10% to 90%, Relative |
| Electrostatic Discharge | Air Discharge: 8 kV Contact Discharge: 6 kV |
| Surge Protection | Common Mode: 4 kV Differential Mode: 2 KV Class B Electromagnetic Compatibility Standard |
| Dimensions (L x W x H) | 440.0 mm x 300.0 mm x 44.0 mm (17.32 in. x 11.81 in. x 1.73 in.) |
| Weight | 4.40 kg (9.70 lb) |
| Certifications |
|
|---|---|
| Safety | EN 62368-1:2014 + A11:2017 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014 |
| Service Specifications | |
|---|---|
| MAC Table | MAC Address Table Configuration |
| Spanning Tree | STP, RTSP, MSTP |
| VLAN | IEEE802.1Q Standard VLAN |
| Flow Control | Supports IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex) |
| Link Aggregation | Manual, LCP |
| Port Mirroring | Many-to-One Port Mirroring |
| Multicast | IGMP Snooping v1/v2/v3 |
| DHCP | DHCP Client/Server, DHCP Snooping |
| Security Features | • User Management • SSH • HTTPS • SNMP V1/V2/V3 • ACL • 802.1x • Loop Protection |
| Quality of Service | • Eight (8) output queues per port • Traffic shaping, port tag remarking • QoS based on CoS/DPL/PCP • QoS based on DSCP |
| System Maintenance | • Upload/Download configuration files • Online upgrade • System logs |
| Device Management | • Web (HTTP and HTTPS protocols) • iLinksView • CLI • SNMP V1/V2C/V3 |
1. Enabling 100 m (328.08 ft) to 250 m (820.21 ft) transmission distance will lower the transmission data speed from 1 Gbps to 10 Mbps.
