*Discontinued* Dahua / PoE Ethernet Switch / 8-Port / 250m PoE / 48-57 VDC / 96W / PFS3010-8ET-96
Out of Stock
SKU:
DH-PFS3010-8ET-96
NSID:
28319
- $116.98
-
- $116.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

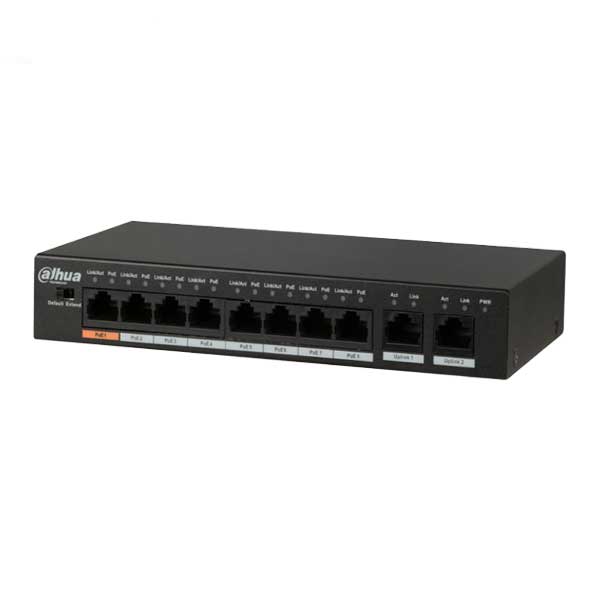

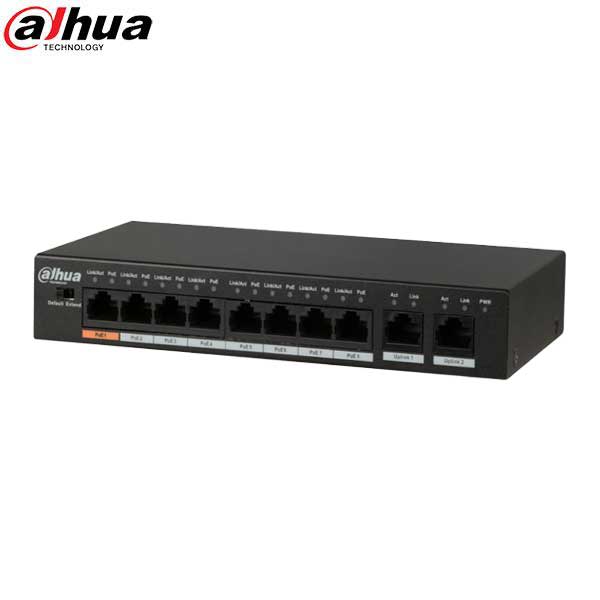

DH-PFS3010-8ET-96
The DH-PFS3010-8ET-96 commercial PoE switch is specially designed for long-distance video transmission applications. The switch uses LD PoE technology to transmit power and data up to 250 m (820 ft). LD PoE extends transmission distances beyond the industry-standard 100m, even with third-party PoE-compliant cameras. The switch provides eight (8) 10/100 Mbps PoE ports and two (2) 1000 Mbps uplink ports. The switch is also equipped with two transmission modes, Default and Extend, that are set by on-bard dip switches.
Features
- Layer 2 Commercial Switch
- Long-distance PoE (LD PoE) Transmits Power and Data 250 m (820 ft)
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X
- Conforms to IEEE802.3af and IEEE803.3at
- Supports Hi-PoE (60 W)
- MAC Auto-learning and Aging; 16K MAC Address Capacity
- MDI/MDIX Self-adaptation
- Metal Enclosure
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $116.98
-
- $116.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Ethernet Ports | Eight (8) 10/100 Mbps PoE Ports Two (2) 10/100/1000 Mbps Ports |
| PoE Features | Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE Consumption: Port 1: ≤ 60 W Ports 2-8: ≤ 30 W per Port Total PoE Budget: 96 W |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 4 MB |
| MAC Table Size | 16K |
| Flow Control | Enabled (by default) |
| Power Requirements | 48 VDC to 57 VDC |
| Dimensions | (7.48 in. x 3.94 in. x 1.18 in. |
| Certifications | UL, FCC, CE |
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 FCC Part 15 Subpart B Conforms to CE Standards |
| Lightning Protection | Common Mode: 2KV Differential Mode: 0.5KV |
| Manufacturer's Warranty | Limited Lifetime Warranty |
Downloads
