*Discontinued* Dahua / RFID Card Reader / Keypad / 13.56 MHz RFID / 9-15 VDC / DH-ASR1101A
Out of Stock
SKU:
DH-ASR1101A
NSID:
27877
- $124.18
-
- $124.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-ASR1101A

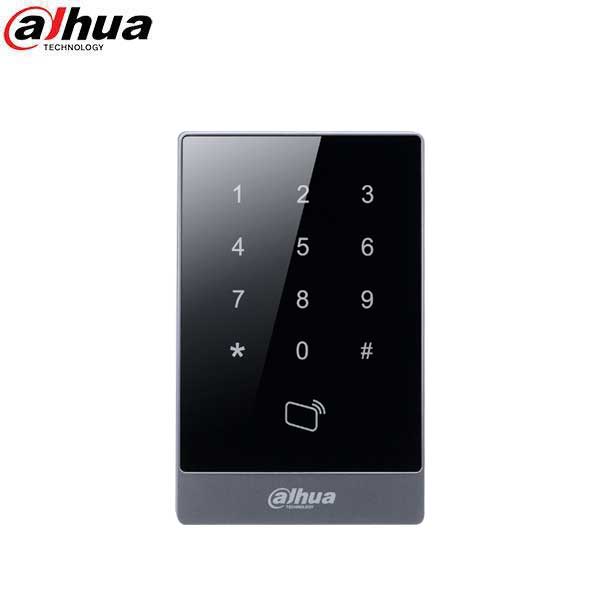

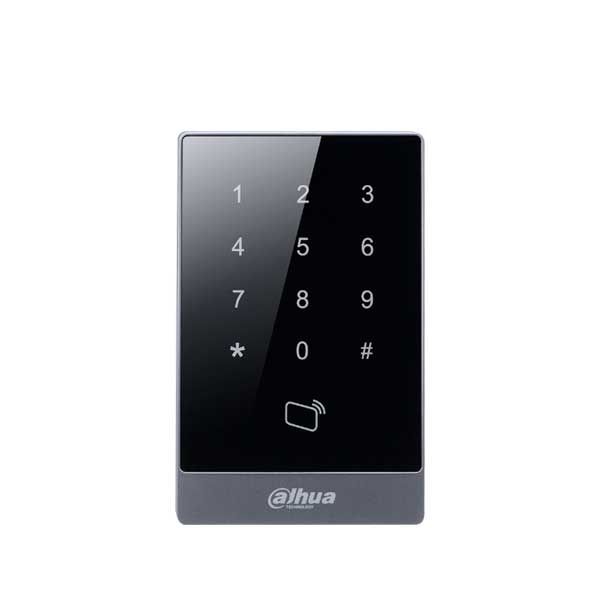

This is the Dahua Card Reader with keypad and 13.56 MHz RFID. it is ideal for general purpose access control installations that want to take advantage of the latest convenience and flexibility features of mobility.
Features
- Wiegand 34 and RS485 Protocols
- MIFARE 13.56 MHz Card
- Watch Dog Function for Tamper Detection
- Sensitive Touch Keypad with Blue Backlight
- Audible and Visual Indicators
- Surface-mount Installation
- $124.18
-
- $124.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| System | |
| Main Processor | 8-bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Distance | 2.36 in. to 3.15 in. maximum |
| Response Time | < 0.1 s |
| Keypad | Sensitive Touch Keypad, 12 Keys (1 to 9, *, #) |
| Interface | |
| To Controller | Wiegand 34, RS485 |
| Electrical | |
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Construction | |
| Color | Black |
| Dimensions | 5.34 in. x 3.42 in. x 0.50 in. |
| Certifications | EN UL FCC CAN/CSA |
Downloads
