*Discontinued* Dahua / Scalable Networked Access Control Panel / Enclosed / 4 Readers / TCP / RS-485 / 100K Users / 150K Event History / 9-15VDC / ASC1204C
Out of Stock
SKU:
DH-ASC1204C
NSID:
27873
- $465.59
-
- $465.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-ASC1204C

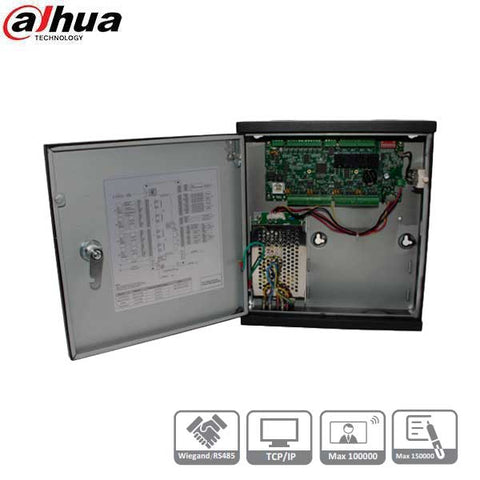

The DH-ASC1204C Four-Door, One-Way Access Controller is a controlling device which compensates video surveillance and visual intercom. It has neat and modern design with strong functionality, suitable for commercial building, corporation property and intelligent community.
Features:
- Includes vented enclosure and pre-wired power supply
- Removable terminal blocks support ease of wiring
- Scalable up to 64 four-door controllers managed by SmartPSS
- Supports controlled lock down of all connected access doors
- Easily integrate biometrics to secure sensitive locations
- Enable anti-passback and multi-door interlock to control traffic in high security applications
- $465.59
-
- $465.59
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| System | |
| Main Processor | 32-bit ARM Cortex-M3 |
| Memory | 16 MB (32 MB external) |
| Input/Output Ports | |
| Inputs: | Nine (9) Normally Open, Supervised Inputs, 0 VDC to 5 VDC nominal: Maximum Power for Relay Input, Four (4) Door Sensors, Four (4) Exit Buttons, One (1) Alarm |
| Outputs: | Five (5) Dry Relays: Four (4) Lock Relays Form C, 3 A at 24 VDC maximum¹, One (1) Alarm Relay, Switching Signal Type. 1 A at 24 VDC maximum |
| Readers | Four (4) Reader Inputs 11 VDC to 13 VDC, current limited. 300 mA, maximum per port |
| Capacity | |
| Card Holders | 100,000 |
| Events | 150,000 |
| Functions | |
| Unlock Modes | Card, Fingerprint, Password, Card + Password, Card or Password, Card + Fingerprint, Fingerprint + Password, and By Period |
| User Management | General, VIP, Guest, Patrol, Black List, Duress |
| Alarm Function | Door time-out Alarm, Intrusion Alarm, Duress Alarm, Tamper Alarm |
| Schedule Settings | Schedule: 128 Groups Period: 128 Groups |
| Interface | |
| Wiegand Reader Data | 24 AWG, 5 conductor stranded cable without shield, 40.0 m (131.23 ft), maximum |
| RS485 Reader Data | 24 AWG, 120 Ω Impedance, 3 conductor stranded cable without shield, 100.0 m (328.08 ft) maximum. Use a separate power supply to extend the RS485 reader data up to 1000.0 m (3280.84 ft), maximum |
| Network Compatibility | TCP/IP, RJ-45 (10/100 Mbps) |
| Operations | |
| Power Supply | Power Cable Included |
| Primary Voltage Input | 100 VAC to 240 VAC, 1.5 A, 47 Hz to 63 Hz |
| Secondary Voltage Input | 9 VDC to 15 VDC, 500 mA |
| Battery Charging Circuit | 13.8 VDC at 1 A. Use only a 12 VDC, 7000 mAh sealed rechargeable lead acid type battery (includes one 11-in. battery cable)³ |
| RTC | Support |
| Dimensions | 11.02 in. x 12.60 in. x 4.49 in. |
| Certifications | |
| Safety | UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07 EN 60950:2006+A2:2013 |
| Electromagnetic Compatibility (EMC) |
FCC CFR 47 Part 15 subpart B. EN |
