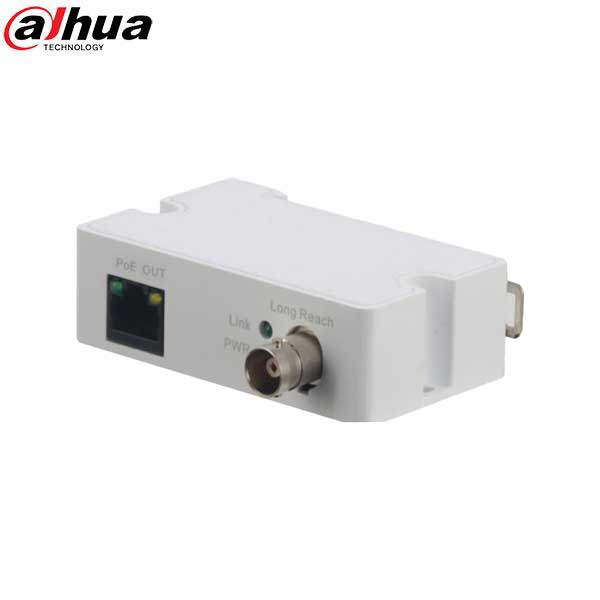

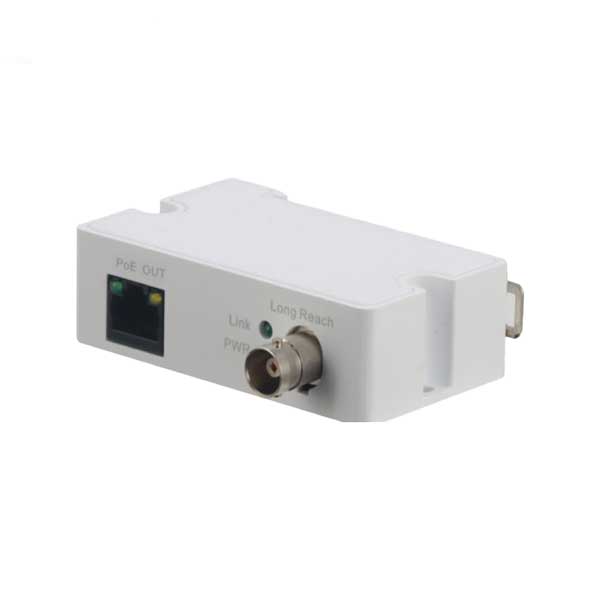

*Discontinued* Dahua / Single-port EoC Extender / Transmitter / Long-Distance PoE Transmission / 1000m / LR1002-1ET
Out of Stock
SKU:
DH-LR1002-1ET
NSID:
28320
- $44.98
-
- $44.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-LR1002-1ET
The LR1002-1ET Single-port EoC Extenders serves two purposes: first it converts between a PoE signal and Dahau's innovative Enhanced Power over Ethernet technology. Second, the extenders convert signals between coaxial cable and CAT5E/CAT6 Ethernet cable. These extenders allow non ePoE-enabled devices to take advantage of the long transmission distances that ePoE technology delivers.
Features
Converts between CAT5E/CAT6 and Coaxial Cable Transmission- Extends EoC Long-distance PoE Transmission to non ePoE-enabled Edge or Head-end Devices.
- Supports PoE Transmission, up to 1000 m (3280 ft)
- Supports IEEE802.3af and IEEE8022.3at Power Supply Standards
- Supports the IEEE802.3 and IEEE802.3u Standards
- Supports MDI/MDX Self-adaptation
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $44.98
-
- $44.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Function Port | One (1) RJ45, 10/100 Mbps Base-TX One (1) BNC |
| Transmission Distance | 100 Mbps: 400 m (1312 ft) 10 Mbps: 1000 m (3280 ft) |
| Power Consumption | <2W |
| Transmission Bandwidth | RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps |
| PoE Protocol | IEEE802.3af (PoE) and IEEE802.3at (PoE+) |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
| Dimension | 3.11 in. x 2.05 in. x 0.91 in. |
