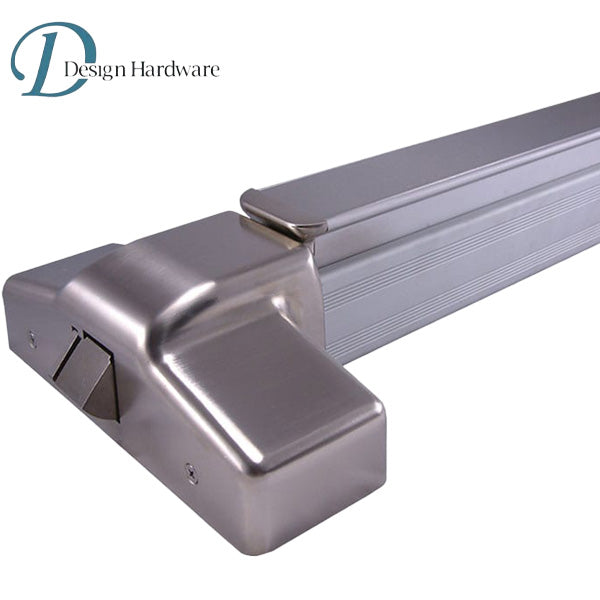

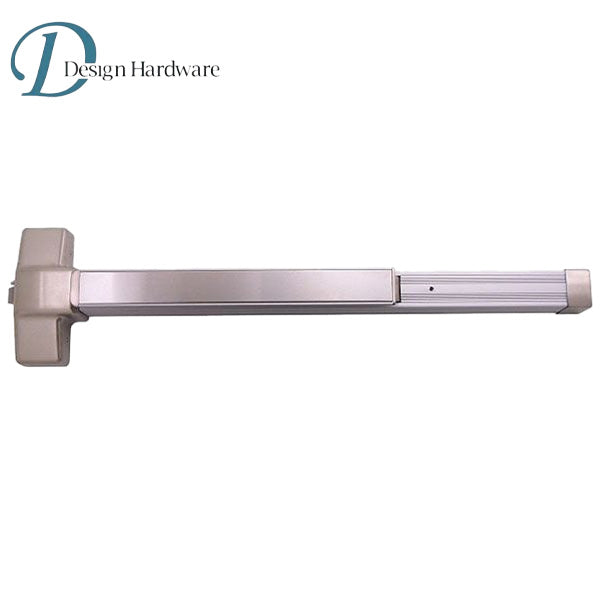

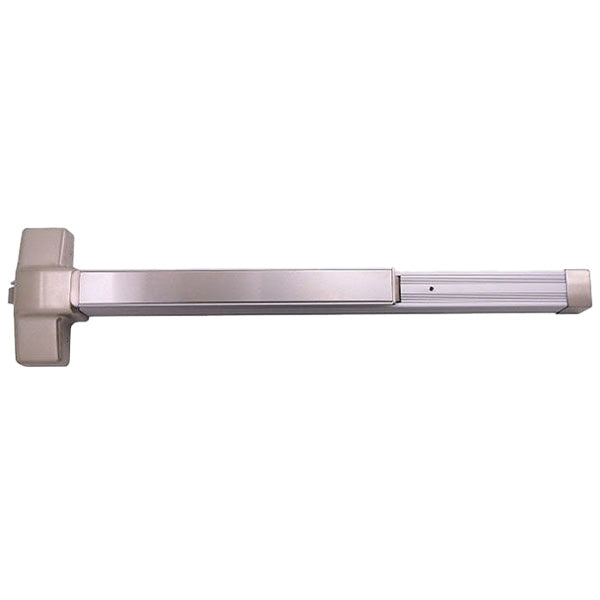

Design Hardware - 1000R - Rim Exit - Heavy Duty - 33-inches - Non-Handed - G1 - Satin Stainless Steel 630/US32D
Available to Order
SKU:
DEH-1000R-33-32D
NSID:
78377
- $351.20
-
$421.44 - $351.20
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 1000 Series meets ANSI A156.3-Grade 1 Standards and complies with the ADA, Americans with Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand.
Features:
- Heavy Duty, ANSI A156.3 Grade 1 Standards
- For use with metal and wood doors
- Meets ADA requirements, UL panic Listed
- Exit Only
- UL Listing: UL Listed for Panic exit hardware
Specifications:
| Handing | Non-Handed |
| Function | Exit Only |
| Device Length | 36 inch (3-ft) |
| Stile | Wide Stile |
| Fire Rated | No |
| Finish Description | Satin Stainless Steel |
| Product Type | Exit Device |
| Series | 1000R Pushpad |
| Device Type | Rim Device |
| Dogging Options | Hex Key Dogging |
| Latch Type | Deadlocking |
| ADA Compliant | No |
| Standards | Meets ANSI-A156.2 Series 4000 Grade 1 standards UL listing for Panic Exit hardware Meets ADA requirements ANSI A117.1 with Lever Trim |
| Stile Width | 4-1/2 inch |
| Center Case Dimensions | 8 Inch Height x 2-7/8 Inch Wide x 2-13/16 Inch Thick |
| Device Bar Projection | Pushbar neutral undogged: 3-3/8 inch; Pushbar Depressed Dogged: 2-13/16 |
| Device Rating | Panic Exit Hardware |
| Chassis Material | Steel |
| Function Family | Exit Only Device |
| For Door Width | 3-ft |
| Mechanism Case Dimensions | 2-3/16" Height x 2-13/16" Wide |
| Features | Completely Reversible; Simplest and Easiest to maintain; Extruded Anodized Aluminum Channel; Limited Lifetime Warranty |
| Grade | ANSI/BHMA Grade 1 |
| Application | Medium to Heavy Use |
| Bolt Throw | 5/8 inch |
