Detex - 09BN - Lever Trim For Value Series Devices - Entrance - BN Lever - Optional Finish - Grade 1
In Stock
SKU:
DTX-09BN
NSID:
36315
36316
- $252.93
-
$303.52 - $252.93
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Detex uses the BHMA functions/descriptions for all trims.
Features
- S Lever Standard
- Entrance
- Optional Finish
- Mortise cylinder required
- 161 Prep Cover Plate Standard
Specifications
| Function | 09 - Entrance by knob or lever only when released by key. Key removable only when locked. |
| Door Thickness | 1-3/4" - 1-3/4" |
| Compatible | Value Series Devices |
| Cylinder | 1-1/8" mortise cylinder (Not Included) |
| Backset | 2-3/4" |
| Handing | Field reversible |
| Lever |
BN Lever |
| Trim |
Escutcheon |
| Stile | 2" Narrow stile |

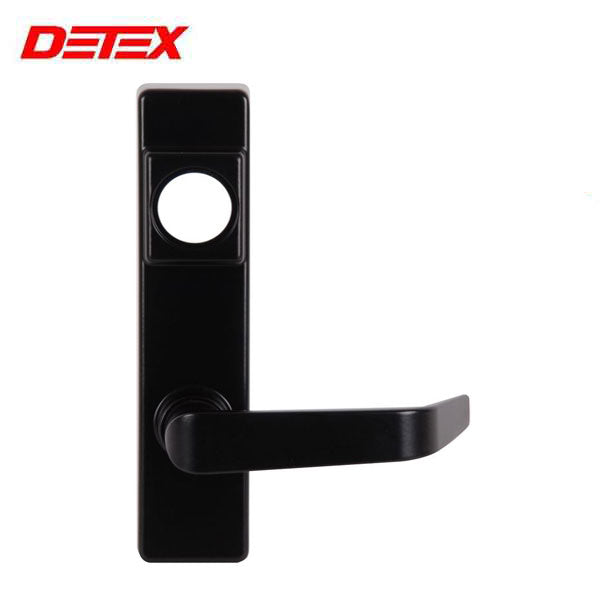

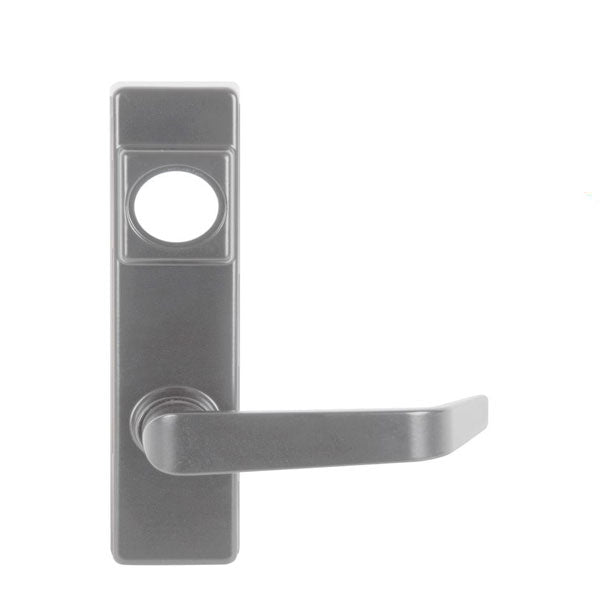

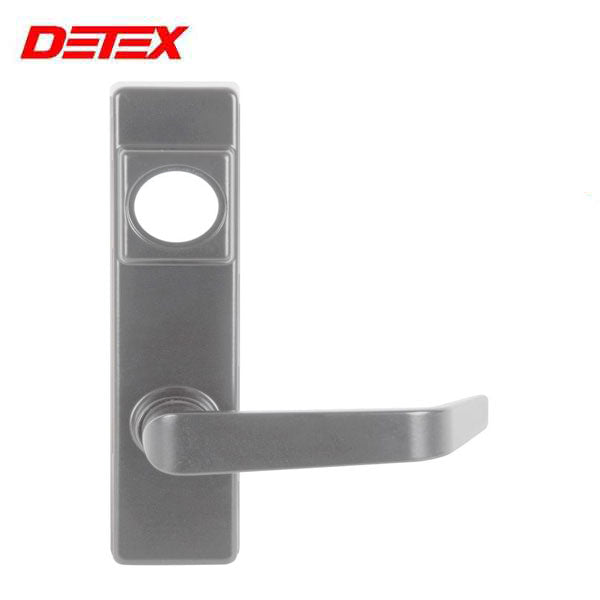

| Finish | 689 - Aluminum Plated, 693 - Black |
| Projection | 2-15/16" |
| Dimensions | 1-29/32" x 8-1/4" x 1-5/16" |
| Certifications | ANSI Grade 1 |
