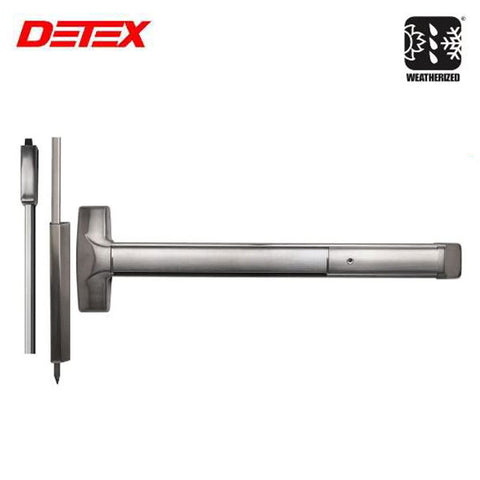

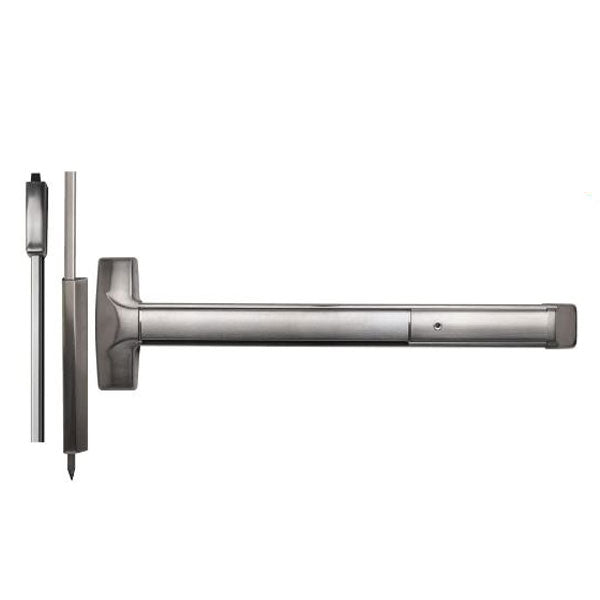

Detex - 20xW - Advantex Surface Vertical Rod - Exit Device - Weatherized - Hex Dogging - Wide Stile - 48" - Stainless Steel - Grade 1 - UHS Hardware
Detex - 20xW - Advantex Surface Vertical Rod - Exit Device - Weatherized - Hex Dogging - Wide Stile - 48" - Stainless Steel - Grade 1 - UHS Hardware

Detex - 20xW - Advantex Surface Vertical Rod - Exit Device - Weatherized - Hex Dogging - Wide Stile - 48" - Stainless Steel - Grade 1

Available to Order
SKU: DTX-20xWx629x48x96
NSID: 36318

Please Note: This product ships within 2 Days

$1,950.23
$2,202.40
$1,950.23

The 20xW Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors or gates without a mullion that are or may be exposed directly to the weather. All 20 Series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Features

  • Tough and durable design for years of trouble-free service in high-use, high-abuse or inclement weather environments
  • Outside trims are easily changed or rekeyed without removing device from door
  • Minimal door prep saves time and money
  • Heavy duty angled end cap deflects damage away from device
  • Security enhanced by stainless steel rod covers, standard
  • Patented mounting plate and strike locator system replaces paper templates
  • Fast and easy installation saves time and money
  • Stainless steel deadlocking top latch
  • Hardened steel bottom drop bolt with dust proof strike
  • Fasteners made of stainless steel 316 material
  • ADA ramped bottom bolt cover
  • 1/8 turn hex or cylinder dogging
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process
  • Handed - field reversible
  • Assembled using components resistant to temperature, dust, driving rain and salt fog
  • Field sizeable

Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications

    Door Width 48"
    Door Height 96"
    Door Thickness 1-3/4" - 2-1/4"
    Door Stile Fits 4-1/2” stile doors
    Top Latch 3/4" deadlocking
    Bottom Drop Bolt 5/8" dia. x 5-5/8" long secures into strike plate
    Handing Handed, Field Reversible
    Strike 97 strike
    Fasteners Machine and Self Drilling Screws
    Push Bar 3 1/8” Extended 2 3/8” Depressed
    Finish 629 - US32 - Polished Stainless Steel
    Certifications UL Listed, UL 1034-54, UL 1034-34, ADA, ANSI/BHMA A156.3
    Manufacturer's Warranty 10 Year Mechanical
