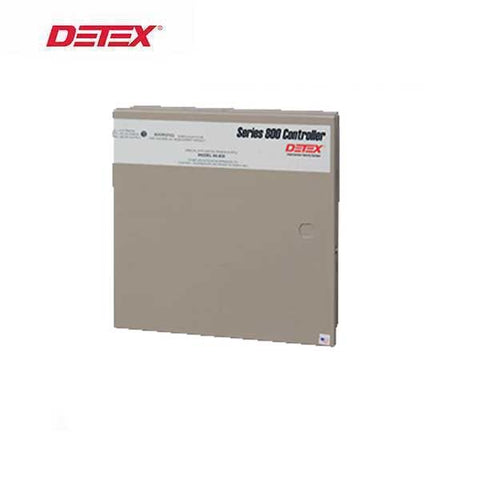

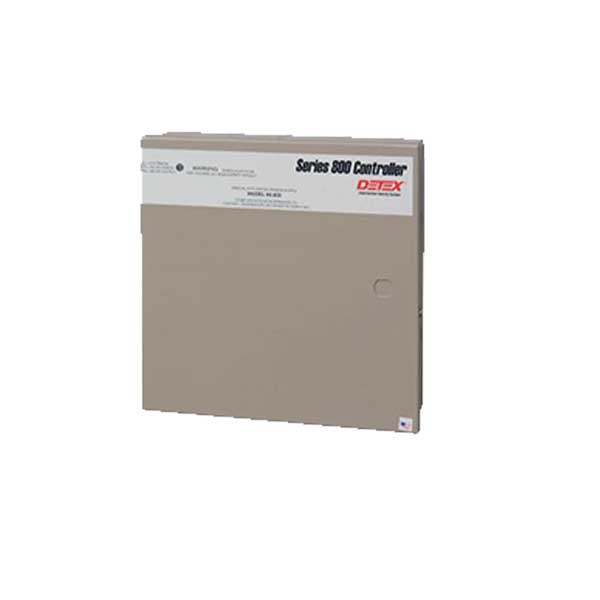

Detex - DTX-81-800 - Power Control System - Single Doors - 120VAC/24VDC
Detex - DTX-81-800 - Power Control System - Single Doors -  120VAC/24VDC
Detex - DTX-81-800 - Power Control System - Single Doors -  120VAC/24VDC
Detex - DTX-81-800 - Power Control System - Single Doors -  120VAC/24VDC
Detex - DTX-81-800 - Power Control System - Single Doors -  120VAC/24VDC

Detex - DTX-81-800 - Power Control System - Single Doors - 120VAC/24VDC

$504.00 $604.80
Available: In Stock
Wishlist
  • Product SKU: DTX-81-800
  • DTX-81-800

    The Detex 81-800 is logic and power supply that converts 120VAC into regulated and filtered 24VDC, providing a secure, consistent, power feed to various electrified door hardware accessories, primarily access control components, such as Detex latch retraction exit devices


    • Filtered and regulated 24VDC power protects the circuitry from stray power surges and spikes
    • Detex allows you to specify and supply the economical 81-800 for single door latch retraction applications
    • The Series 800 products have been engineered to provide superior operation through design integration with all Detex electric latch retraction options
    • 1 AMP continuous, controlling 1 Detex latch retraction (ER) device for 1 door
    • Battery charging circuit included standard (batteries sold separately)
    • Design provides enough power to cycle Detex latch retraction motor, one time, even if power is lost while attempting to open the door and gain access
    • Standard output used to signal automatic door operations



    $504.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)



Input

115VAC input
Output  Standard output used to signal automatic door operators
Switch Request to exit switch
Dimensions 12.25" high x 12.25" wide x 3.5" deep


Downloads

DTX-81-800

The Detex 81-800 is logic and power supply that converts 120VAC into regulated and filtered 24VDC, providing a secure, consistent, power feed to various electrified door hardware accessories, primarily access control components, such as Detex latch retraction exit devices


  • Filtered and regulated 24VDC power protects the circuitry from stray power surges and spikes
  • Detex allows you to specify and supply the economical 81-800 for single door latch retraction applications
  • The Series 800 products have been engineered to provide superior operation through design integration with all Detex electric latch retraction options
  • 1 AMP continuous, controlling 1 Detex latch retraction (ER) device for 1 door
  • Battery charging circuit included standard (batteries sold separately)
  • Design provides enough power to cycle Detex latch retraction motor, one time, even if power is lost while attempting to open the door and gain access
  • Standard output used to signal automatic door operations




Input

115VAC input
Output  Standard output used to signal automatic door operators
Switch Request to exit switch
Dimensions 12.25" high x 12.25" wide x 3.5" deep


Downloads

Compatible With
