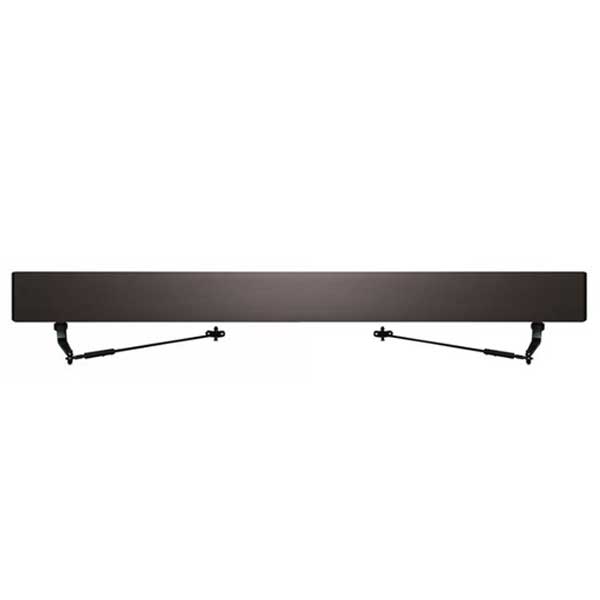

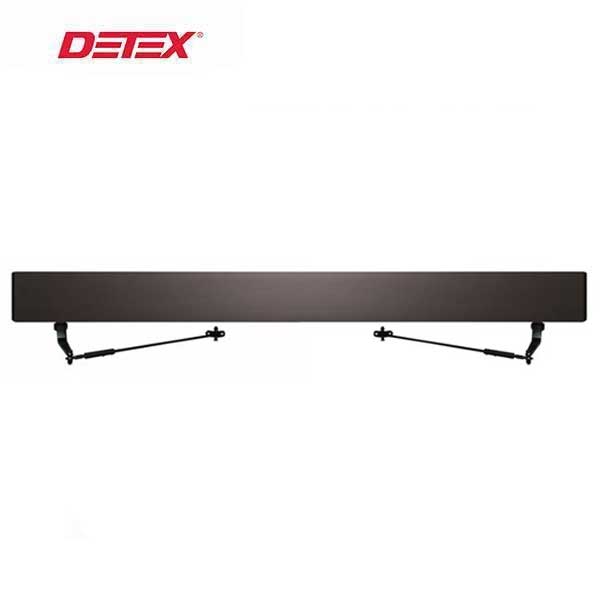

Detex - DTX-AO19-2x75.5xPULLxBZ - Automatic Door Operator - Low Energy - Double Door PULL - Heavy Duty - 3' - Dark Bronze

Detex - DTX-AO19-2x75.5xPULLxBZ - Automatic Door Operator - Low Energy - Double Door PULL - Heavy Duty - 3' - Dark Bronze

$3,665.00 ~~$4,398.00~~

Availability: Available

Wishlist

Product SKU: DTX-AO19-2x75.5xPULLxBZ
NSID: 24154

DTX-AO19-2x75.5xPULLxBZ

The (AO19 Series) DTX-AO19-2x75.5xPULLxBZ Automatic Door Operator for double doors is an easy to install, heavy duty product for high use and high abuse low energy applications.
- Economical operator provides safe and easy access in medium to high-traffic and security areas
- Provides ADA compliant access to handicap applications
- 115VAC power plug-in mounted in the header
- Hander plate allows quick installation
- A self-contained unit in an extruded case allows easy access for maintenance and adjustments
- Works with existing access control, locking, and computer signal devices
- Easy manual use
- Can be installed and adjustments can be made prior to electrician connecting building power
- Adjustable delayed activation for sequenced vestibule doors
- Single voltage source required to operate
- Adjustable closing speed
- Fits above most pairs of 36" doors
$3,665.00

Get it shipped

Today!

Order within

00 Hrs

00 Mins

00 Secs

Quantity

Description
Compatibility

Pull Revel Depth	2-1/2"
Power requirements	115VAC 60HZ 6 amps
Module	Activation input terminals Form C lock relay terminals Safety lock-out built in 17 additional features standard on board
Application	For use on doors 300LBS or less
Motor	115VDC rectified 1/8 hp 60:1 gearbox
Enclosure	7" h x 4 1/2" d Approximately 100LBS Aluminum extrusion

Downloads

DTX-AO19-2x75.5xPULLxBZ

The (AO19 Series) DTX-AO19-2x75.5xPULLxBZ Automatic Door Operator for double doors is an easy to install, heavy duty product for high use and high abuse low energy applications.

Economical operator provides safe and easy access in medium to high-traffic and security areas
Provides ADA compliant access to handicap applications
115VAC power plug-in mounted in the header
Hander plate allows quick installation
A self-contained unit in an extruded case allows easy access for maintenance and adjustments
Works with existing access control, locking, and computer signal devices
Easy manual use
Can be installed and adjustments can be made prior to electrician connecting building power
Adjustable delayed activation for sequenced vestibule doors
Single voltage source required to operate
Adjustable closing speed
Fits above most pairs of 36" doors

Pull Revel Depth	2-1/2"
Power requirements	115VAC 60HZ 6 amps
Module	Activation input terminals Form C lock relay terminals Safety lock-out built in 17 additional features standard on board
Application	For use on doors 300LBS or less
Motor	115VDC rectified 1/8 hp 60:1 gearbox
Enclosure	7" h x 4 1/2" d Approximately 100LBS Aluminum extrusion
