Detex - ECL-230X - TDB - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)
Detex - ECL-230X - TDB  - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)
Detex - ECL-230X - TDB  - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)
Detex - ECL-230X - TDB  - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)
Detex - ECL-230X - TDB  - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)

Detex - ECL-230X - TDB - Alarmed Deadbolt Panic Device - 3 Point Lock (Top, Bottom & Deadbolt)

$689.00 $1,231.00
Available: In Stock
Wishlist
  • Product SKU: DTX-ECL-230X-TDB
  • DTX-ECL-230X-TDB
    Item Number: 6830

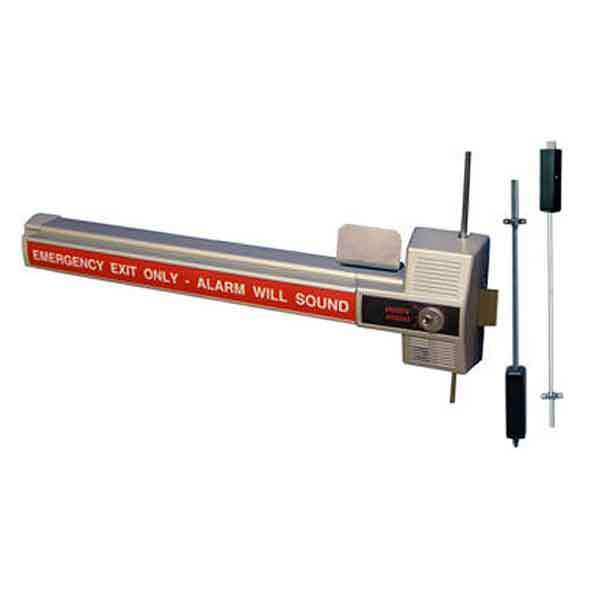

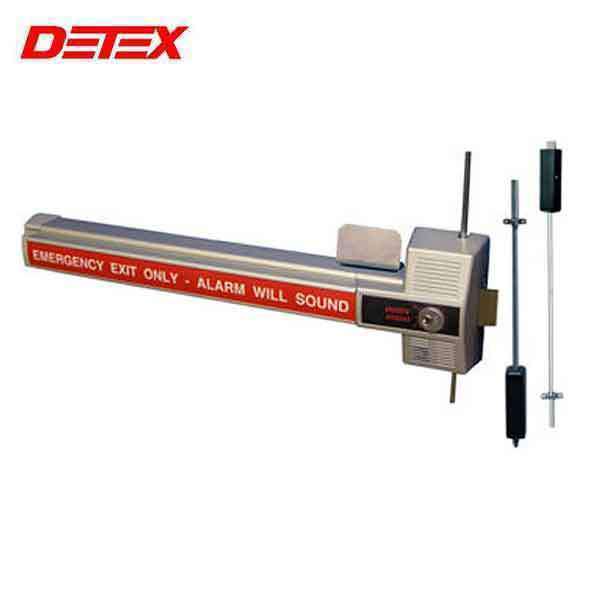

    The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL- 230X-TDB can withstand up to 16,000 pounds of pull force.

    Features

    • 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
    • Saw resistant dead bolt
    • Corrosion resistant alloy lock body 100 decibel alarm, powered by 9-volt battery (included)
    • Surface/flush reversible strike Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
    • Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed Locking and unlocking (dead bolt) always arms and disarms the alarm
    • Non-handed Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
    • Attack resistant design for maximum holding force Proven durability and reliability at a reasonable price
    • Easy to install Supplied With 9 Volt Battery
    • Reduces employee and customer theft Time tested construction resists attack from the inside
    • One size fits 36”-48” doors for code compliant acceptance Easy to see if the lights go out
    • Straightforward operation that everyone understands

    $689.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications

Door Types Wood, Hollow Metal
Door Thickness: 1-3/4" - 2-1/4"
Door Stile Standard Device fits 36”-48” door
Fasteners Machine and Sheet Metal Screws
Strike Surface/flush reversible strike • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
Alarm Status
Resetting the alarm can only be accomplished with a control key
Alarm Sound
 100 decibel alarm, powered by 9-volt battery (included)
Certifications
UL 305 Listed Panic Hardware
UL1034-34 Temperature Section 34 [Temperature Range -31° F (-35° C) to 150° F (+66° C)
UL 1034-54 Dust Section 54
Meets ADA Requirements
Meets NFPA 101 for Life Safety, CA Title 19
ANSI/BHMA A156.3 Grade 2 requirements for all Building Codes
California State Fire Marshall - 4140-0127:102
Meets International Building Code


Download Installation Instructions Here

DTX-ECL-230X-TDB
Item Number: 6830

The ECL-230X-TDB is a code compliant, battery alarmed, rugged 3-point dead bolt, panic device with photo-luminescent sign providing maximum security and a 100 decibel alarm for secondary exits. Independent laboratory testing shows that the ECL- 230X-TDB can withstand up to 16,000 pounds of pull force.

Features

  • 3-point, 1" throw dead bolt lock with just over 3/4” engagement with the frame, and 3/4” throw top and bottom locks with 5/8” engagement with the strike
  • Saw resistant dead bolt
  • Corrosion resistant alloy lock body 100 decibel alarm, powered by 9-volt battery (included)
  • Surface/flush reversible strike Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
  • Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed Locking and unlocking (dead bolt) always arms and disarms the alarm
  • Non-handed Low profile meets International Building Code requirement allowing for 4” maximum projection off face of door
  • Attack resistant design for maximum holding force Proven durability and reliability at a reasonable price
  • Easy to install Supplied With 9 Volt Battery
  • Reduces employee and customer theft Time tested construction resists attack from the inside
  • One size fits 36”-48” doors for code compliant acceptance Easy to see if the lights go out
  • Straightforward operation that everyone understands

Specifications

Door Types Wood, Hollow Metal
Door Thickness: 1-3/4" - 2-1/4"
Door Stile Standard Device fits 36”-48” door
Fasteners Machine and Sheet Metal Screws
Strike Surface/flush reversible strike • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar
Alarm Status
Resetting the alarm can only be accomplished with a control key
Alarm Sound
 100 decibel alarm, powered by 9-volt battery (included)
Certifications
UL 305 Listed Panic Hardware
UL1034-34 Temperature Section 34 [Temperature Range -31° F (-35° C) to 150° F (+66° C)
UL 1034-54 Dust Section 54
Meets ADA Requirements
Meets NFPA 101 for Life Safety, CA Title 19
ANSI/BHMA A156.3 Grade 2 requirements for all Building Codes
California State Fire Marshall - 4140-0127:102
Meets International Building Code


Download Installation Instructions Here
