Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty
Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty
Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty
Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty
Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty

Detex - V40-EB-CD - Power Alarmed Rim Exit Device - 36" Door Width - Cylinder Dogging - 628 - Satin Aluminum - 10 Year Warranty

$349.00
Available: In Stock
Wishlist
  • Product SKU: DTX-V40-EB-CD-628-99-36
  • DTX-V40-EB-CD-628-99-36
    Item Number: XXXX

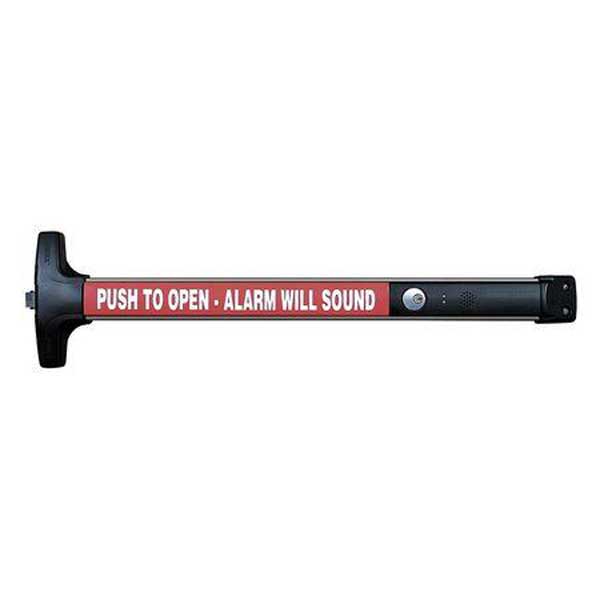

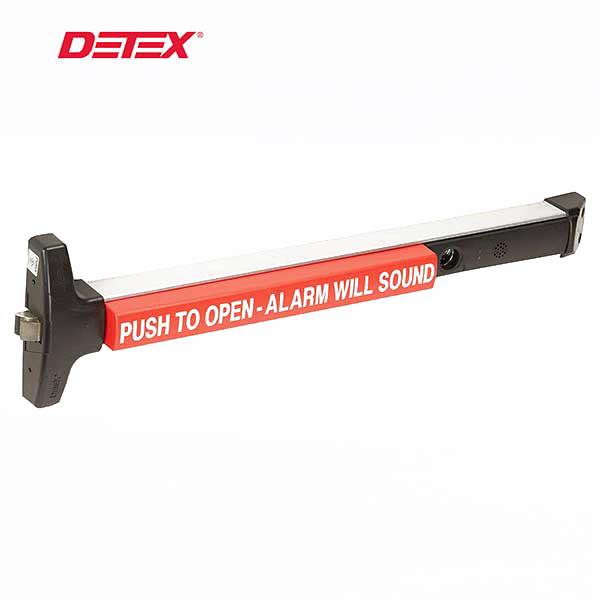

    The Detex V40-EB-CD Power Alarmed Rim Exit Device is designed for primary and secondary exits that require an alarmed panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Available in various configurations, the V40-EB-CD provides security while meeting all life safety concerns, offering exceptional value.

    Features

    • Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device
    • 36 – Fits 36″ Door Width
    • Powered by a standard, 9-volt battery
    • Fasteners: Machine and Self-Drilling Screws
    • Cylinder Dogging (CD) Standard
    • Field selectable key rearm or 2 min. auto rearm
    • Visual and audible arming indicators
    • Armed and disarmed field selectable status indicator
    • 100+ Decibel alarm
    • 10 Year Mechanical/3 Year Electrical – Limited Manufacturer’s Warranty

    $349.00

Specifications

Length 32-7/8"
Door Width 36"
Door Thickness 1-3/4" - 2-1/4"
Door Stile 2-1/2″ stile doors with 98 semi-mortise strike
Standard doors with 99 strike
Power 9 Volt Battery
Dogging Single mortise 1-1/8″ cylinder (sold separately) provides arming and dogging – 1/8 turn cylinder dogging
Bolt 3/4" Deadlocking Pullman-type latch bolt
Alarm 100+ Decibels
Rearming Selectable: key rearm or 2 minute automatic rearm
Finish 628 (Satin Aluminum)
Warranty 10 Year Mechanical
3 Year Electrical

Downloads

Data Sheet
Installation Manual
Electrical Manual
