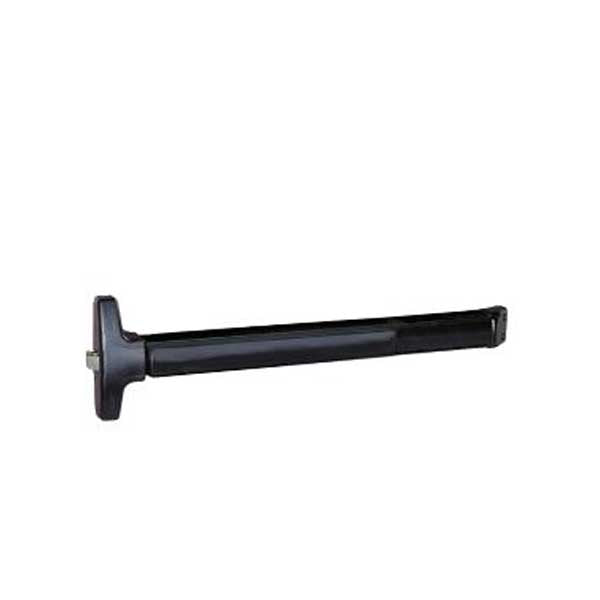

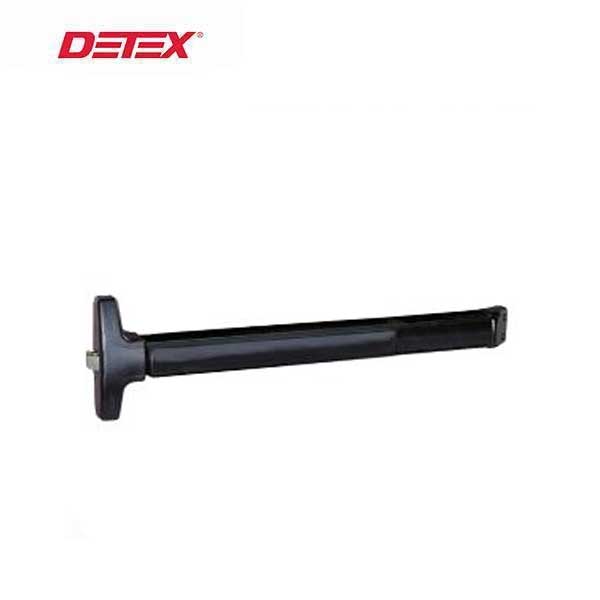

Detex - V40xEBxWx711x48 - Rim Exit Device - Wide Stile - 48" - Cylinder Dogging - Alarm - 9V - Satin Black
In Stock
SKU:
DTX-V40xEBxWx711x48
NSID:
36339
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $718.20
-
$861.84 - $718.20
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available
Features
- 99 - Surface Strike (Std.)
- Exit Alarm with 9 volt Battery
- Cylinder Dogging
- Covers a 161 door prep
- Stainless steel, 3/4" deadlocking Pullman-type latch bolt
- Non-handed
- Field sizeable
- 1/8 turn hex key dogging
- Heavy-duty ribbed aluminum rail extrusion
- High impact ABS and anodized surfaces
- Withstands over 1400 pounds of static pull force for greater security
- Modular design accepts a variety of outside trims and functions
Specifications
| Door Types | Wood, Hollow Metal, Fiberglass or Aluminum |
| Door Thickness | 1-3/4" - 2-1/4" |
| Door Size |
48" |
| Screws | Machine and Self-Drilling |
| Electrical | Exit alarm 9V battery |
| Push bar | 3-1/4 extended, 2-1/2 depressed |
| Strike | 99 Surface strike |
| Dogging | Cylinder Dogging |
| Application | Designed for use on all types of single and double doors with mullions |
| Dimensions | 24-1/8" x 44-7/8" |
| Finish | 711 - Satin Black |
| Certifications | UL Listed, ADA, ANSI/BHMA A156.3, ULB/UL10C |
| Manufacturer's Warranty | 10 Year Mechanical/3 Year Electrical |
Installation:
Downloads
