*Discontinued* Devision / HDCVI / 2MP / Bullet Camera / Fixed / 2.8mm Lens / Outdoor / IP66 / 20m IR / DVA-A228-P
Out of Stock
SKU:
DVA-A228-P-delete
NSID:
19009
- $21.99
-
$26.39 - $21.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

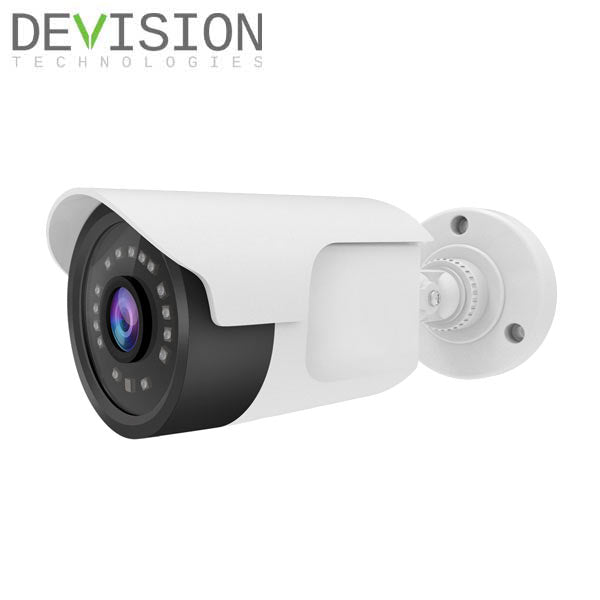

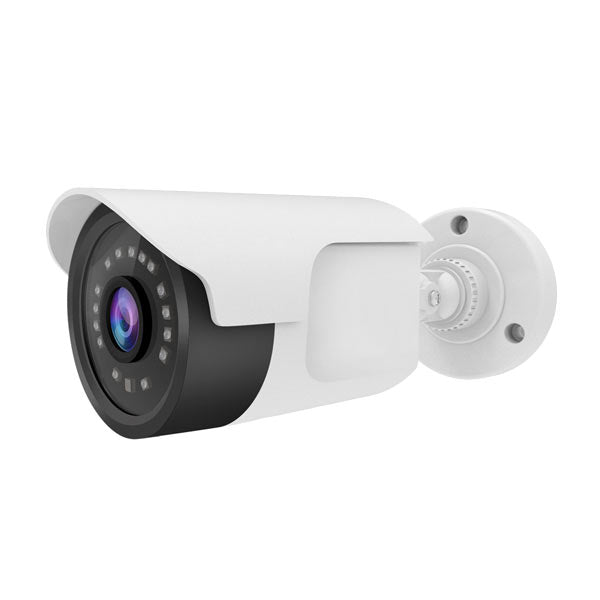

The Devision A228-P 2MP Fixed Bullet HDCVI Camera is an effective, professional security camera. The device offers up to 2 megapixels resolution recording with a fixed 2.8mm lens. With Ingress IP66 Protection, this camera is capable of withstanding outdoor conditions.
Features
- 1/3" CMOS Sensor
- Full HD resolution 1920 x 1080
- 15PCS IR LEDs, IR Range 20m
- Support TVI, AHD, CVI, CVBS output
- UTC Coaxial Control
- Easy installation, HD video transfer over coaxial cable
- Ingress Protection IP66
- Day/night functionality
- Wide temperature range: -20°C ~ 60°C (-4°F ~ 140°F)
- Customer Service: USA: 800-860-7999 | Canada: 800-914-6008
- Call 1-800-878-6604 for Dealer Prices!
- $21.99
-
$26.39 - $21.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/3" CMOS Censor |
| Image Resolution | 1920x1080 |
| Effective Pixels | 2.0MP |
| TV System | PAL/NTSC |
| Electronic Shutter | 1/10s ~ 1/100,000s |
| S/N Ratio | ≥50dB |
| Min. Illumination | 0.05Lux@ (F2.0, AGC ON), 0LUX with IR |
| Scanning System | Progressive Scan |
| Lens | |
|---|---|
| Lens |
Board Lens 2.8mm/F2.0 |
| FOV |
H: 73.9°, V: 40° D: 86° |
| Lens Type | Fixed |
| Night Vision | |
|---|---|
| Infrared SMD LED | 10µ x 15 PCS |
| Infrared Distance | 20m |
| IR Cut Filter | Yes |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Day & Night | Auto (ICR) / Color / B&W |
| Camera Features | |
|---|---|
| OSD Menu Language | Support |
| White Balance | Auto |
| Gain Control | Auto |
| UTC |
Support |
| Outputs | TVI, AHD, CVI, CVBS |
| General | |
|---|---|
| Housing |
Plastic |
| Bracket |
Yes |
| Operation Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% |
| Power Source |
DC12V±10%, 250mA |
| Dimensions |
180 x 75 x 85mm |
| Weight |
≤230g |
| Ingress Protection |
IP66 |
Dimensions (mm)
Downloads
Data Sheet Installation Guide
